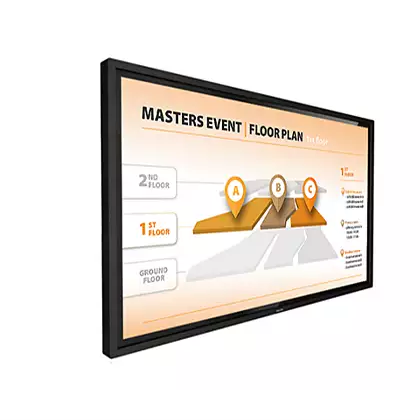

Philips 32 Inch Q Series 10-Touchpoint FHD Capacitive Touch Professional Display

Product Code: PHL 32BDL3651T

Key Features

Engage them

Inspire collaboration. Deliver information. This responsive Philips Multi-Touch Professional Full HD Display is ideal for multi-finger, multi-user applications-from wayfinding to presentations. Up to 10 touch points can be active at once.

10-point Multi-Touch display.

  • 32"
  • Powered by Android
  • Multi-touch
$1,642.15 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Philips 32 inch Q Series 10-Touchpoint FHD Capacitive Touch Professional Display

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

CMND & Create. Develop and launch your own content

Take control of your content with CMND & Create. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time.

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

CMND & Deploy. Install and launch apps remotely

Quickly install and launch any app-even when you're off-site and working remotely. CMND & Deploy lets you add and update your own apps, as well as apps from the Philips Professional Display App Store. Simply scan the QR code, log in to the store, and click on the app you want to install. The app is automatically downloaded and launched.

Internal memory. Upload content for instant play

Save and play content without the need for a permanent external player. Your Philips professional display has an internal memory, which allows you to upload media into the display for instant playback. The internal memory also functions as a cache for online streaming.

Android SoC processor. Native and web apps

Control your display via an Internet connection. Android-powered Philips Professional Displays are optimized for native Android apps, and you can install web apps directly to the display too. A new Android 8 ensures the software is kept secure and remain to the latest specification for longer.

Warranty

We offer a 3 year onsite warranty via 3rd party on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Picture/Display

Diagonal screen size (metric)

80 cm

Diagonal screen size (inch)

32 inches

Panel resolution

1920x1080p

Optimum resolution

1920 x 1080 @ 60 Hz

Brightness

350 cd/m²

Contrast ratio (typical)

4000:1

Surface treatment

Anti-Glare coating

Aspect ratio

16:9

Response time (typical)

6.5 ms

Pixel pitch

0.36375(H)X0.36375(V) mm

Display colors

16.7 M

Viewing angle (horizontal)

178 degrees

Viewing angle (vertical)

178 degrees

Panel technology

VA

Operating system

Android 8.0

Picture enhancement

  • 3/2 - 2/2 motion pull down
  • 3D Combfilter
  • 3D MA deinterlacing
  • Dynamic contrast enhancement
  • Motion compens. deinterlacing
  • Progressive scan

    Interactivity

Multi-touch technology

Projected capacitive

Touch points

10 simultaneous touch points

Plug and play

HID compliant

Protection glass

2 mm tempered safety glass

    Connectivity

Video input

  • DVI-I (x 1)
  • HDMI 2.0 (x2)
  • USB 2.0 Type A (x2)
  • USB 2.0 Type B (x1)
  • VGA (via DVI-I) x1

Audio input

3.5 mm jack

Audio output

3.5mm jack

External control

  • RJ45
  • IR (in/out) 3.5 mm jack
  • RS232C (in/out) 2.5 mm jack

Other connections

micro SD

    Supported Display Resolution

Computer formats

  • 640 x 480, 60, 67, 72, 75Hz
  • 800 x 600, 56, 60, 72, 75Hz
  • 1024 x 768, 60Hz
  • 1280 x 768, 60Hz
  • 1280 x 800, 60Hz
  • 1280 x 1024, 60Hz
  • 1360 x 768, 60Hz
  • 1366 x 768, 60Hz
  • 1440 x 900, 60Hz
  • 1600 x 1200, 60Hz
  • 1920 x 1080, 60Hz
  • 1920 x 1200, 60Hz
  • 720 x 400, 70Hz
  • 800 x 600, 60, 72, 75Hz
  • 3840 x 2160, 60 Hz, 50 Hz

Video formats

  • 480i, 60Hz
  • 480p, 60Hz
  • 576p, 50Hz
  • 576i, 50Hz
  • 720p, 50, 60Hz
  • 1080i, 50, 60Hz
  • 1080p, 50, 60Hz
  • 1080i, 25, 30Hz
  • 480i, 30, 60Hz
  • 576i, 25, 50Hz
  • 3840 x 2160, 24, 25Hz
  • 3840 x 2160, 30Hz

    Convenience

Placement

  • Landscape (18/7)
  • Portrait (18/7)

Signal loop through

  • IR Loopthrough
  • RS232

Network controllable

  • RS232
  • RJ45

Screen saving functions

Pixel Shift, Low Brightness

Keyboard control

  • Hidden
  • Lockable

Remote control signal

Lockable

Energy saving functions

Smart Power

    Dimensions

Set Width

749.1  mm

Set Height

443.6  mm

Set Depth

70.4(D@Wall mount)/74.4(D@AC)  mm

Set Width (inch)

29.49  inch

Set Height (inch)

17.46  inch

Set Depth (inch)

2.77D@Wall mount)/2.93(D@AC)  inch

Product weight

8.0  kg

Product weight (lb)

17.64  lb

VESA Mount

100mm x 100mm, 200mm x 200mm , M4

Bezel width

2.0 mm (T/R/L/B)

    Sound

Built-in speakers

2 x 10W

    Operating conditions

Temperature range (operation)

0 ~ 40  °C

MTBF

50,000  hour(s)

Altitude

0 ~ 3000 m

Temperature range (storage)

-20~60  °C

Humidity range (operation)[RH]

20 ~ 80% (without condensation)

Humidity range (storage) [RH]

5 ~ 95% (without condensation)

    Power

Mains power

100 ~ 240 VAC, 50/60Hz

Standby power consumption

<0.5W

Consumption (Typical)

50  W

Power Saving Features

Smart Power

Consumption (Max)

80 W

Energy Label Class

G

    Multimedia Applications

USB Playback Picture

  • BMP
  • GIF
  • JPEG
  • JPG
  • PDF

USB Playback Audio

  • AAC
  • AIF
  • AIFF
  • ASF
  • LPCM
  • M3U
  • M4A
  • MP3
  • MP4
  • WAV
  • WMA

USB Playback Video

  • M2TS
  • M4V
  • MK3D
  • MKV
  • MP4
  • MPEG
  • MPG
  • MTS
  • TS
  • TTS
  • VOB
  • WMV

    Internal Player

CPU

2 x A53 + 2 x A73

Memory

  • 2GB DDR3
  • 8GB

GPU

ARM Mali G51

Wifi

  • 4 G
  • 5 G
