Philips 43 inch Q Series 4K 18/7 400nit Android Professional Display

Product Code: PHL 43BDL3550Q

Key Features
  • Easy-setup 18/7 display
  • 43"
  • Ultra HD
  • Direct LED Backlight
$1,162.85 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

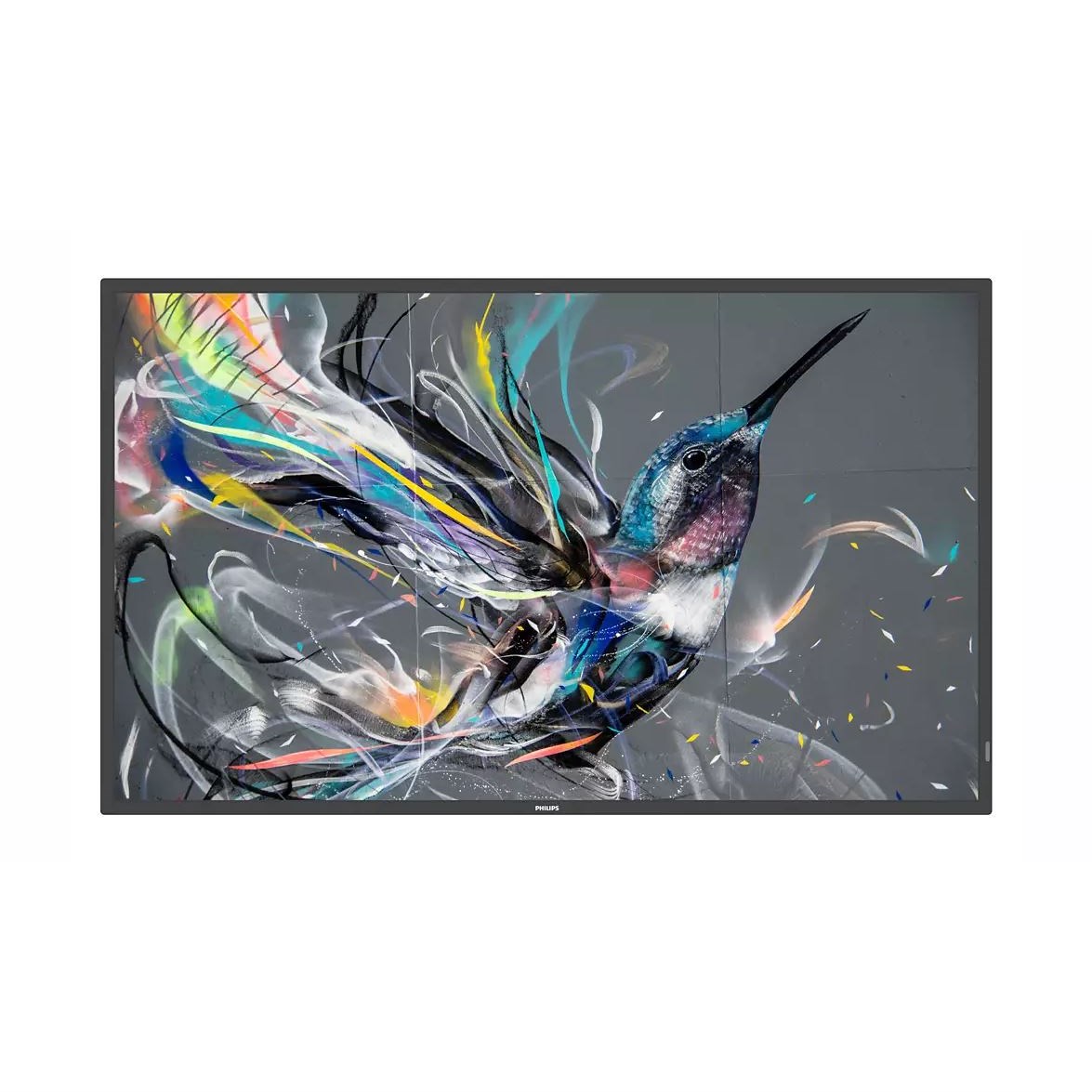

Philips 43 inch Q Series 4K 18/7 400nit Android Professional Display



Inform and enthrall with a Philips Q-Line Professional Ultral HD Display. This reliable solution can be up and running as quickly as you need.

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

CMND & Create. Develop and launch your own content

Take control of your content with CMND & Create. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time.

Android SoC processor. Native and web apps

Control your display via an Internet connection. Android-powered Philips Professional Displays are optimized for native Android apps, and you can install web apps directly to the display too. A new Android 8 ensures the software is kept secure and remain to the latest specification for longer.

Connect and control your content over the internet

Connect and control your content over the internet with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Streaming content can also be shown in a PIP (picture-in-picture) window. Simply connect the display to the internet using WiFi (optional) or with an RJ45 cable, and enjoy your own created playlist



Warranty

We offer a 3 year onsite warranty via 3rd party on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Picture/Display
Diagonal screen size (metric) 108 cm
Diagonal screen size (inch) 42.5 inch
Panel resolution 3840 x 2160
Optimum resolution 3840 x 2160 @ 60 Hz
Brightness 400  cd/m²
Contrast ratio (typical) 1300:1
Dynamic contrast ratio 500,000:1
Response time (typical) 8 ms
Aspect ratio 16:9
Viewing angle (horizontal) 178  degree
Viewing angle (vertical) 178  degree
Pixel pitch 0.2451 x 0.2451 mm
Display colors 1.07 Billion
Panel technology ADS
Picture enhancement

3/2 - 2/2 motion pull down



3D Combfilter



3D MA deinterlacing



Dynamic contrast enhancement



Motion compens. deinterlacing



Progressive scan

Operating System: Android 8.0
Clinical image D-Image preset (dicom part 14 compatible)
Connectivity:
Video input

DVI-D (x 1)



HDMI 2.0 (x2)



USB 2.0 (x2)

  VGA (Analog D-Sub) (x1)
Audio input 3.5 mm jack
Audio output 3.5 mm jack
External control

RJ45



RS232C (in/out) 2.5 mm jack



IR (in/out) 3.5 mm jack

Convenience:
Energy saving functions Smart Power
Tiled Matrix Up to 15 x 15
Start-up

Switch on delay



Switch on status



Boot on source

Start-up window enable / disable Philips logo
Keyboard control Lockable
  Hidden
Network controllable

RS232



RJ45

Signal loop through

RS232



IR Loopthrough

Placement

Landscape (18/7)

Remote control signal Lockable
Dimensions:
Bezel width 13.9 mm (Even bezel)
Set Width 973 mm
Set Height 561.2 mm
Set Depth 63.5 mm
VESA Mount 200mm x 200mm , M6
Product weight 11.29 kg
Operating conditions:
Temperature range (operation) 0 ~ 40  °C
Temperature range (storage) -20 ~ 60  °C
MTBF 50,000  hour(s)
Altitude 0 ~ 3000 m
Humidity range (operation)[RH]
20 ~ 80% RH (No condensation)
Humidity range (storage) [RH] 5 ~ 95% RH (No condensation)
Power:
Mains power 100 - 240V~, 50-60Hz
Standby power consumption <0.5 W
Consumption (Max) 152 W
Consumption (Typical) 108 W
Power Saving Features Smart Power
Energy Label Class G
Sound:
Built-in speakers 2 x 10W RMS
Accessories:
Included accessories

AC Power Cord



RS232 cable



Remote Control



Batteries for remote control



Quick start guide

  HDMI cable


IR sensor cable (1.8 m) (x1)



RS232 daisy-chain cable



Philips logo (x1)



USB Cover and screw (x2)

Internal Player:
CPU Dual core cortex A53 1.1G Hz


Dual core cortex A73 1.15G Hz

GPU ARM Mali G51
Memory 2GB DDR3 and 8GB
What's In The Box:
Other items in the box AC Power Cord
  RS232 cable
  Remote Control
  Batteries for remote control
  Quick start guide
  HDMI cable
