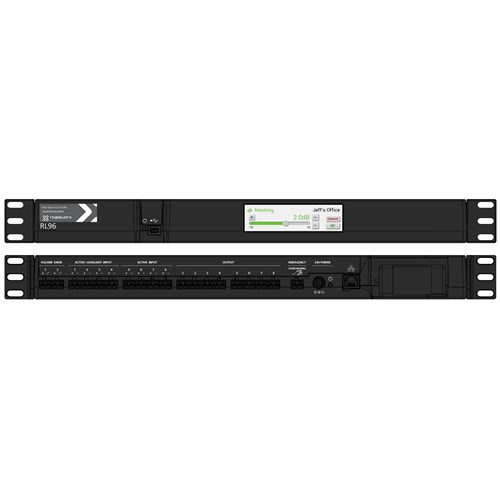

Roadworx Sound Masking Rack-Mount Sound Masking System Controller

Product Code: RWSM-R96-8CH

Key Features
State-of-the-art Sound Masking System With Exclusive Adaptive Control Technology. The R96 controller has a rack-mount design and is suitable for large sound masking projects with a maximum output of 96 sound masking speakers.
$8,732.72 inc GST
(Each)
Increase value Decrease value
Qty Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

• 8 output channels
• Up to 12 speakers per channel
• Independent equalizer for each channel
• 340 narrow bands automatic equalizer
• 1/3rd octave bands automatic or manual equalizer
• 8 inputs for Active Volume Control of the masking sound in each zone
• Independent 1/3rd octave equalizers on inputs when used for music/paging
• High-efficiency / low consumption power amplifier providing 92 dBA at 1m
• Integrated Touch Screen for easy control of masking sound and music in each zone
• Compact rack mount unit (1U) with incredible performances while meeting LEED requirements

Roadworx Sound Masking system highlights:
• Real Time Adaptive Technology that continuously and seamlessly adjust the volume of the masking sound for optimal confidentiality and comfort
• Automatic equalization that guarantees the optimum sound masking spectra
• Simple and highly versatile without compromising sound masking performance and quality.
• Many controller units can be networked together to construct large sound masking projects.

Warranty
We offer a 5 year warranty on this product from its date of purchase. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.
Outputs
Nb Outputs 8
Max Nb Speakers/Output 12
Max Nb Speakers/Controller 96
Sound Masking
Sound Masking Volume 30 to 92 dBA in 0.1 dB steps and mute
Sound Masking Equalizer 23 1/3rd Octaves bands  from 63Hz to 10kHz
Sound Masking Ref Spectrum 12 pre-set reference masking spectrums; unlimited user defined  masking spectrums from 100 to 6,3kHz
Sound Masking Volume Ramp-Up User defined, up to 30 days
Adaptive Volume Control – Allow to improve acoustic comfort by 50% -Patent US Patent 8116 461
Nb Inputs 8 shared with music and paging inputs
Max Nb Sensors/Input 6
Real time Control Independent real time sound masking volume adjustment for each output channel
Masking Volume Change Rate Adjustable down to 0.1dB steps, updates every 15s
Active Adjustment Range User defined; maximum range: -7 to 3 dB relative to reference masking level.
Music and Paging
Music and Paging Inputs 8 (shared with Adaptive Volume Control inputs)
Music and Paging Mixer Independent for each output channel
Music and Paging Volume 30 to 92 dBA(white noise) in 0.1dB steps and mute
Music and Paging Equalizer 20 1/3rd octave bands
Touch Screen Control
Integrated Touch Screen Allowing Volume control of the masking sound and music, and selection of Preset EQ for each channel
Volume range & step 20 dB range; Step 0,5 dB
Preset Equalizer Selection for each channel, allow the selection of 12 Preset equalizers, or the EQ done with the auto calibration
Password  function Admin and End-User password to enable or disable volume and advance functions
Volume Control Knobs
Volume Ctrl Knob Mixer Independent for each output channel: sound masking and/or paging and music
Volume Range User defined
Schedule
Schedule 24 hour periods per day, 7 days
Volume 0.1dB steps
Transition Ramp Instant, 2m30, 5min, 10min, or 15min
Schedule Mixer Independent for each output channel: sound masking and/or paging and music
Monitoring
System diagnosis 24/7 diagnosis (requires computer running Project Manager Software and wifi connections)
Project Manager Software compatibility
Project Master Can be used in the Project Manager software as a Master unit or a Secondary unit
Connectivity
Connectivity Ethernet, Wifi, or USB (not required for normal operation)
Wifi WPA/WPA2 Personal or WEP - Wifi radio module can be disabled if required
Emergency relay input Allow  shut down sound masking on event
Power
Input 18-24VDC; Max 150W; Power-supply included
Physical
Size
Weight
430mm x 190mm x 44mm (16.9” x 7,5” x 1,75”) (1U rack mount brackets)
1,7kg (3,8lb), including the power pack
Warranty
Warranty 5 years
LEED Design
Acoustic Provide high quality of Speech Privacy and improve acoustical comfort
Very Low Electric Consumption High efficiency/low consumption amplifier & daily schedule allowing automatic shut down
Certifications – ETL Listed 3191772
UL62368-1 – Standard for Audio, Video and Similar Electronic Apparatus – Safety Requirements
UL 2043 – Standard for Fire Test for Heat and Visible Smoke Release for Discrete Products and Their Accessories Installed in Air-Handling Spaces
FCC – EN 55103-1&2 – Electromagnetic compatibility-Product family standard for audio, video, audio-visual and entertainment lighting control apparatus for professional use - Part 1: Emissions, Part 2: Immunity
Related ASTM Standards
ASTM E1374-06 (11) – Standard Guide for Open Office Acoustics and Applicable ASTM Standards
ASTM E1573-18 – Standard Test Method for Evaluating Masking Sound in Open Office Using A-Weighted and 1/3 Octave Band SPL
ASTM E1130-08 – Standard Test Method for Objective Measurement of Speech Privacy in Open Offices Using Articulation Index
ASTM E2638 – Standard Test Method for Objective Measurement of Speech Privacy Provide by Closed Rooms
ASTM E2638 – Standard Test Method for Objective Measurement of Speech Privacy Provide by Closed Rooms
