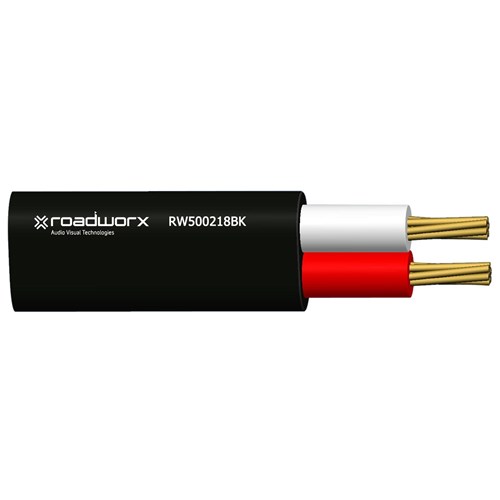

Roadworx RW500218BK Speaker Cable 2 Conductor Flat Double Insulated 18 AWG Black 100m Reels

Product Code: RW500218BK100

Key Features

Speaker Cable 2 Conductor Flat Double Insulated 18 AWG Black 100M Reels

$1.02 inc GST
(Mtr)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx RW500218 Speaker Cable 2 Conductor Flat Double Insulated 18 AWG Black 100M Reels

Description

24/0.19BC x 2C PVC Insulation PVC Sheath Φ3.5 x 6.0mm

Applicable Standards

N/A

Suitable Applications

Used to make the electrical connection between loudspeakers and audio amplifiers.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

Conductor 24/0.19 /-0.006BC
Insulation Core: 2
Material: PVC
Colour: Red, White
Min. Thickness 0.42mm / Nom. Thickness ≥0.50mm / Nom. O.D 2.3 /-0.1mm
Sheath Material: PVC / Colour: Black
Min. Thickness 0.42mm / Nom. Thickness ≥0.50mm
Nom. Sheath O.D H: 3.5 /-0.2mm, W: 6.0 /-0.2mm
Spark Voltage: 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 26.4 ohm/km 20°C
Voltage Test: Core to Core 1000V a.c/1min

Physical Properties

Insulation Elongation ≥100%
Insulation Tensile Strength ≥13 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70?
Max. Recommended Pulling Tension 95N
Min. Bend Radius (install) 35mm
Approximate Mass 3.81kg/100m
Sheath Printing ROADWORX RW500218 SPEAKER CABLE, 2 CORE, 18AWG (meter marking)
