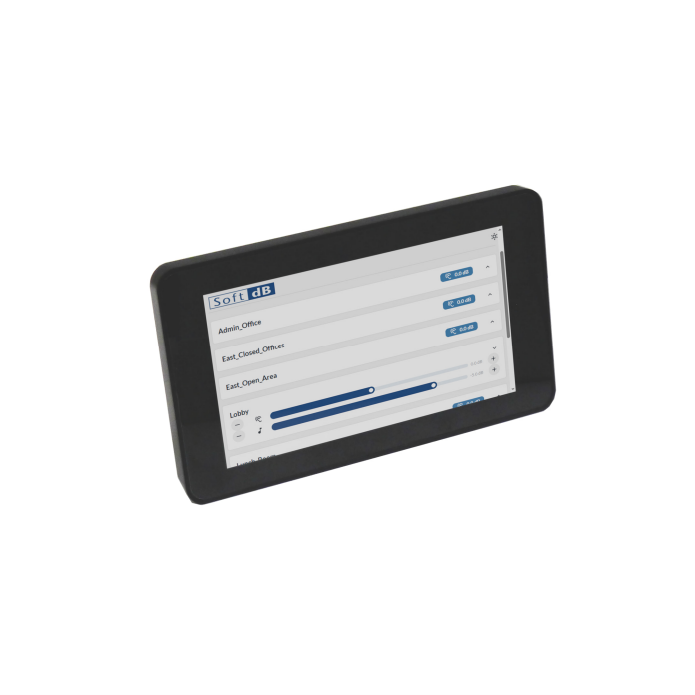

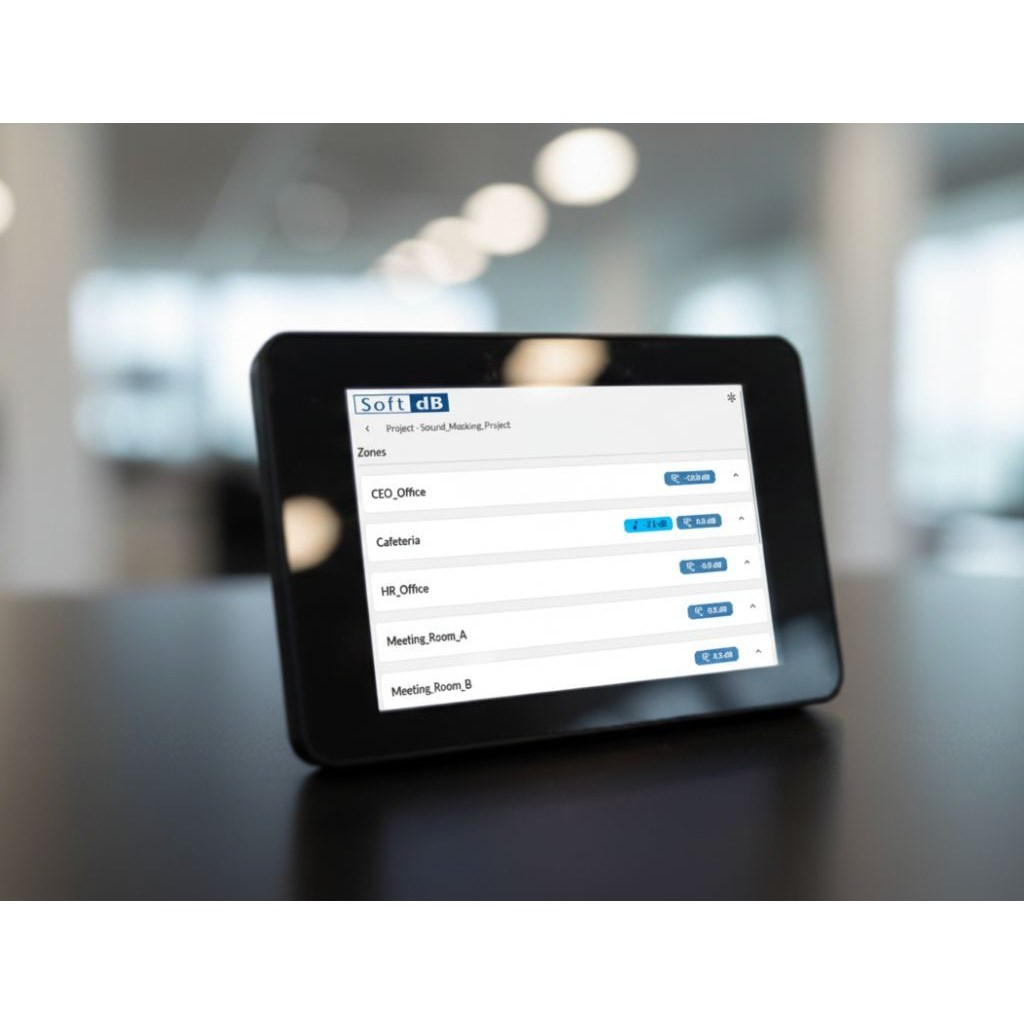

Roadworx Sound Masking 7 Inch Centralised Touch Control Panel

Product Code: RWSM-SMS-LINK

Key Features
  • Simple and easy masking sound and music volume adjustment in any zone,
  • 7" capacitive touch-screen,
  • Wall-Mount for sleek design,
  • Web browser interface,
  • HTTP API,
  • Password access,
  • Ethernet or WiFi connectivity,
  • Flexible power supply with PoE or USB-Power.
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 2-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx Sound Masking 7inch Centralised Touch Control Panel

Take full control of your sound masking system with SMS-LINK, Soft dB’s new centralized touchscreen panel and web app. Designed for IT managers, facility managers, and integrators, SMS-LINK combines simplicity, flexibility, and reliability—no software or drivers required.

No hassle. Just secure, reliable control from anywhere.

The SMS-LINK is the central access point of your sound masking system

  • The SMS-LINK acts as a gateway between the end-users and the sound masking controllers.
  • With Ethernet and WiFi connectivity, the SMS-LINK provides an extensive solution for your network infrastructure.
  • The Web browser interface provides an easy way of accessing the system on mobile devices and computers without installing any software.
  • The HTTP API provides a hardware abstraction layer that simplifies Building Management System integration.
Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Volumes
Sound Masking ±10 dB with respect to calibrated sound masking level
Music 30 dB
Connectivity
Connectivity TCP/IP
Interfaces Ethernet (RJ45) or WiFi (802.11b/g/n, WiFi radio module can be disabled if not required)
Protocol HTTP
Screen
Size 7 inch (178mm)
Resolution 800 x 480
Touch Panel Technology Capacitive
Power
Powering Options PoE or USB Power
PoE (Power over Ethernet) 48V, IEEE 802.3.af (optional PoE injector available)
USB Power 5VDC, 3A
Power Rating Max 15W
Physical
Size 198mm x 116mm x 44mm (7-13/16” x 4-9/16” x 1-3/4”) - Bezel thickness 15mm (19/32”)
Weight 500g (1.1lbs)
Mounting Wall-mount/Desktop (flush-mount or rack-mount using optional bracket)
Included Accessories
Power-Supply USB Power Adapter with USB cable type C
Optional Accessories
Locked Guard Box Key-locked clear polycarbonate box, 248mm x 184mm x 86mm (9.75’’x 7.25’’ x 3.33’’)
PoE Injector 19W IEEE 802.3af PoE injector supporting 10/100 Mbps
Flush-mount plate Plate for mounting flush to wall
Rack-mount plate Plate for mounting in 19-inch standard rack (3U height)
