JBL SRX922 - Dual 12-Inch Powered Point-Source Speaker

Product Code: JBL SRX922

Key Features

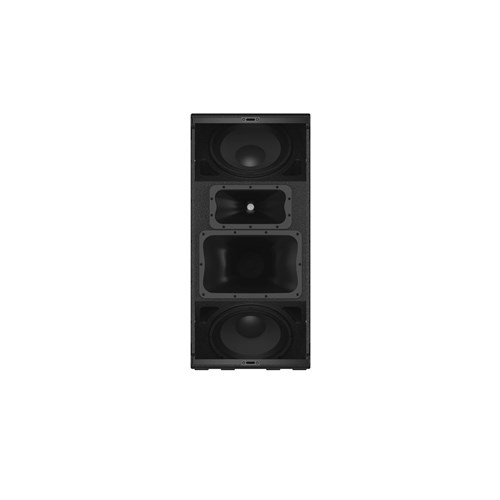

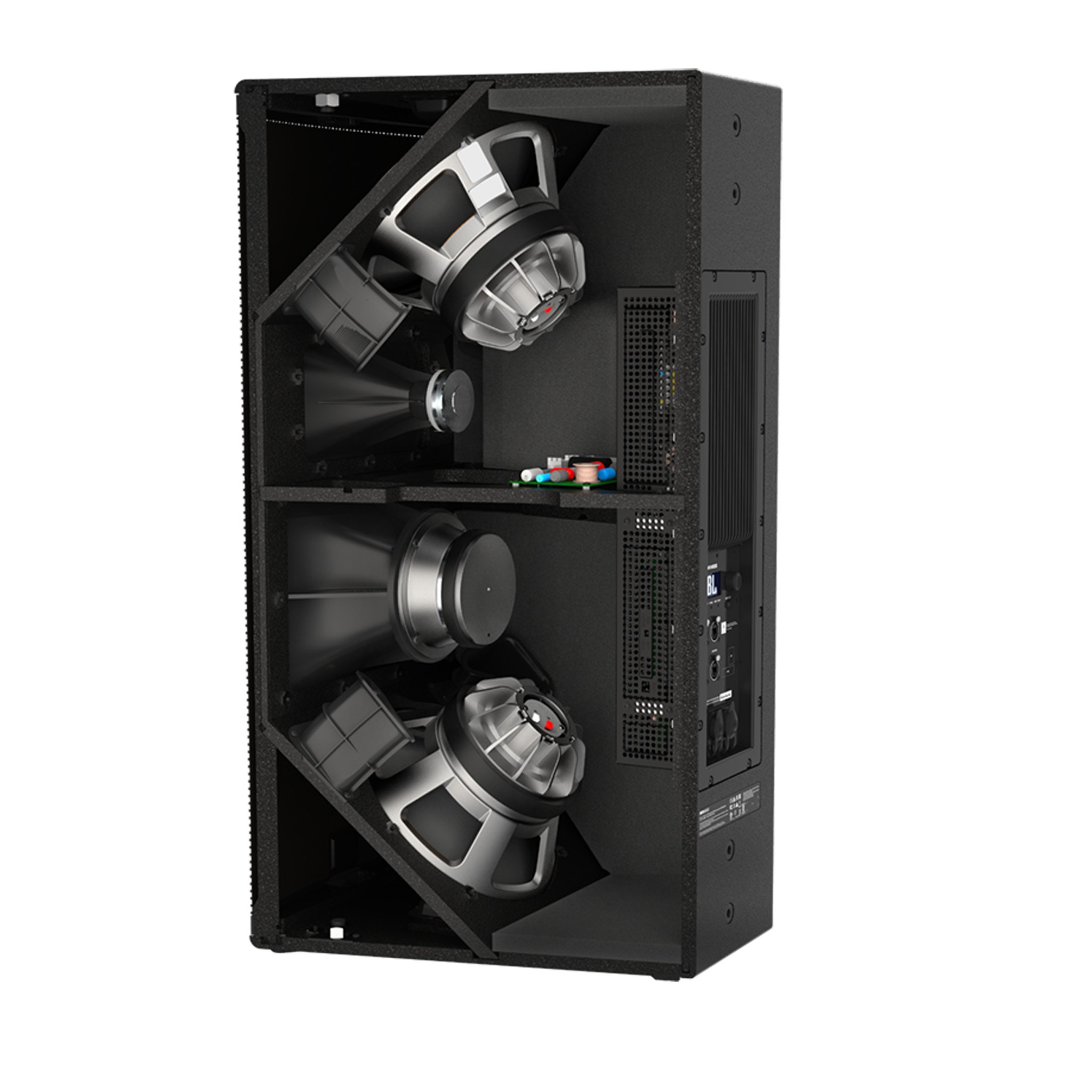

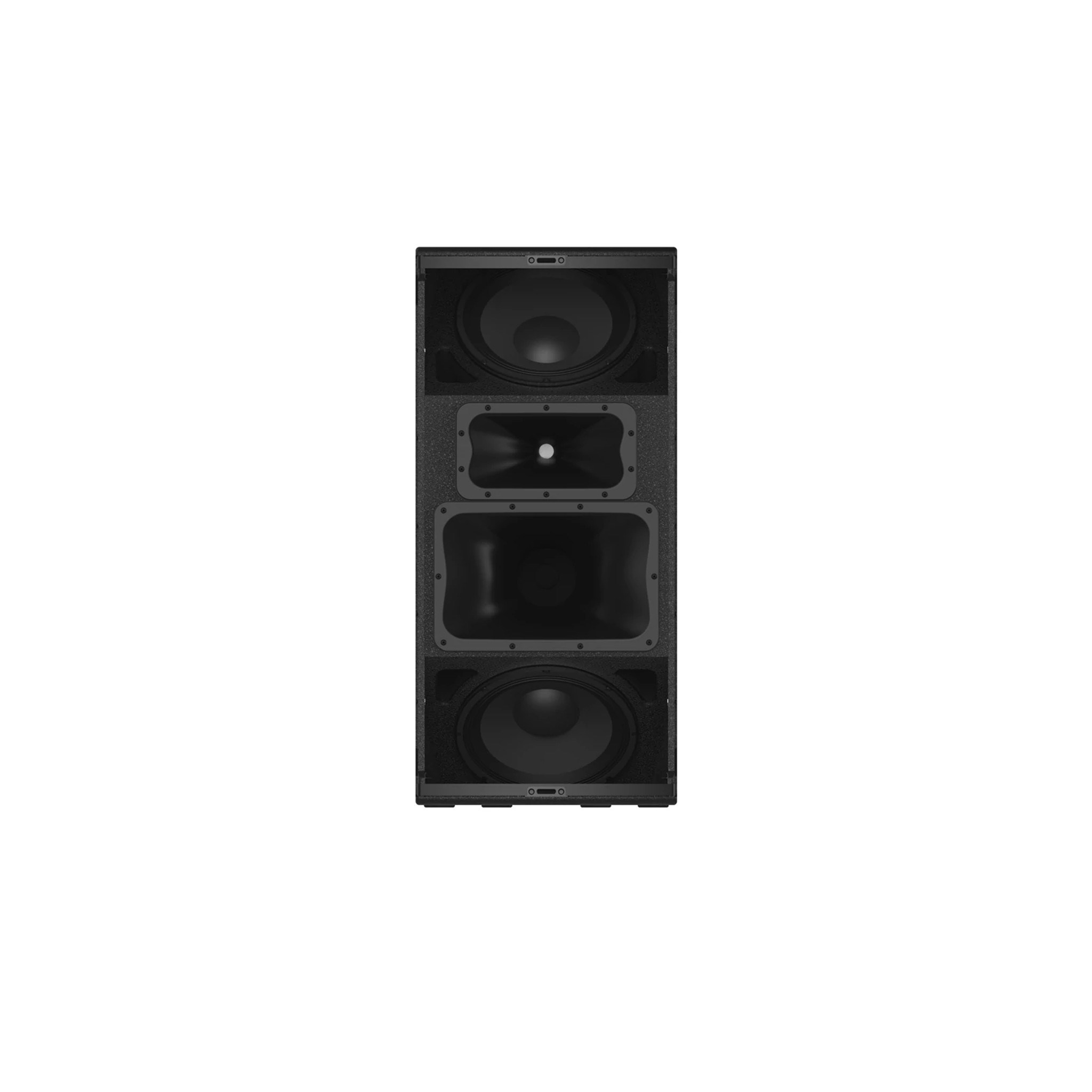

  • Dual 12-inch LF woofers, a 6.5-inch horn-loaded MF driver, and a 1.5-inch annular-diaphragm compression driver
  • Symmetrically-arranged dual LF section provides double the low-frequency headroom of traditional single-woofer designs
  • Dipole configuration delivers enhanced vertical directivity control
  • Horn-loaded MF section enables LF drivers to operate in their most efficient and controlled bandwidth
  • Dual 90° × 60° Progressive Transition waveguides provide smooth, predictable coverage
  • Four large, flared ports extend low-frequency response down to 50 Hz
  • 80 Hz high-pass preset available for applications using SRX900 subwoofers
  • Voicing and phase response carefully optimized to match SRX900 line-source products
  • Integrated amplification delivers plug-and-play operation

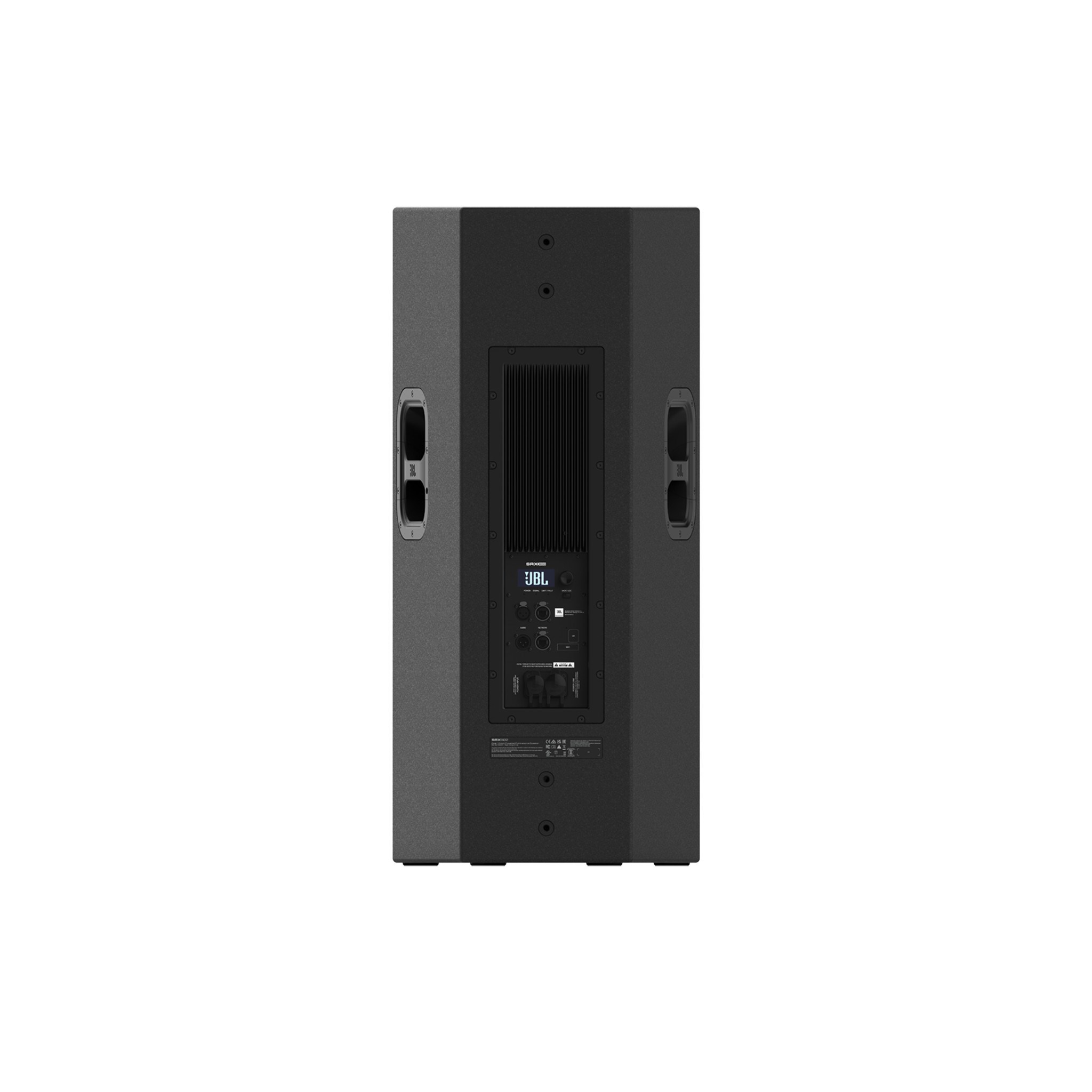

  • Rear LCD enables fast configuration
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL SRX922 - Dual 12-Inch Powered Point-Source Speaker

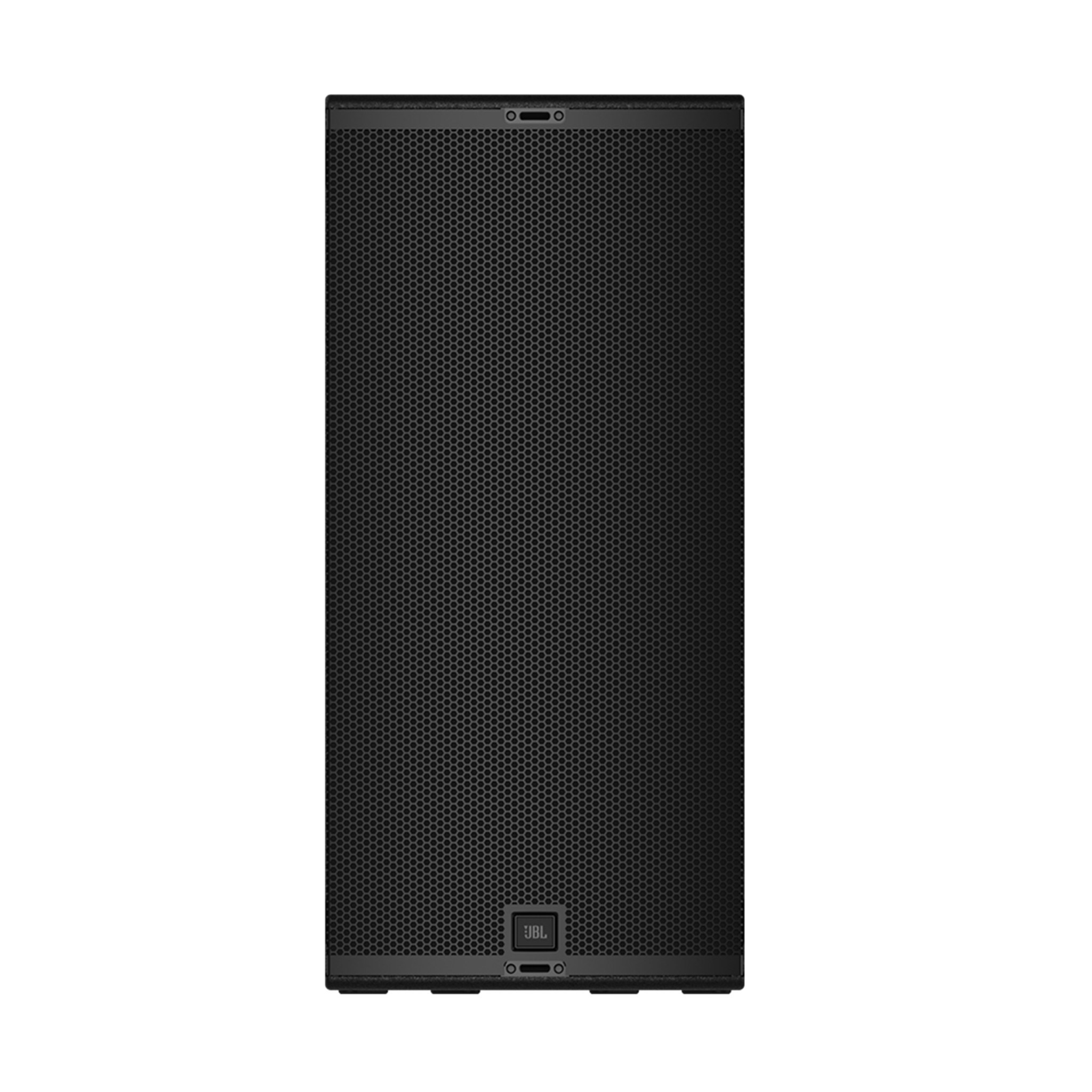

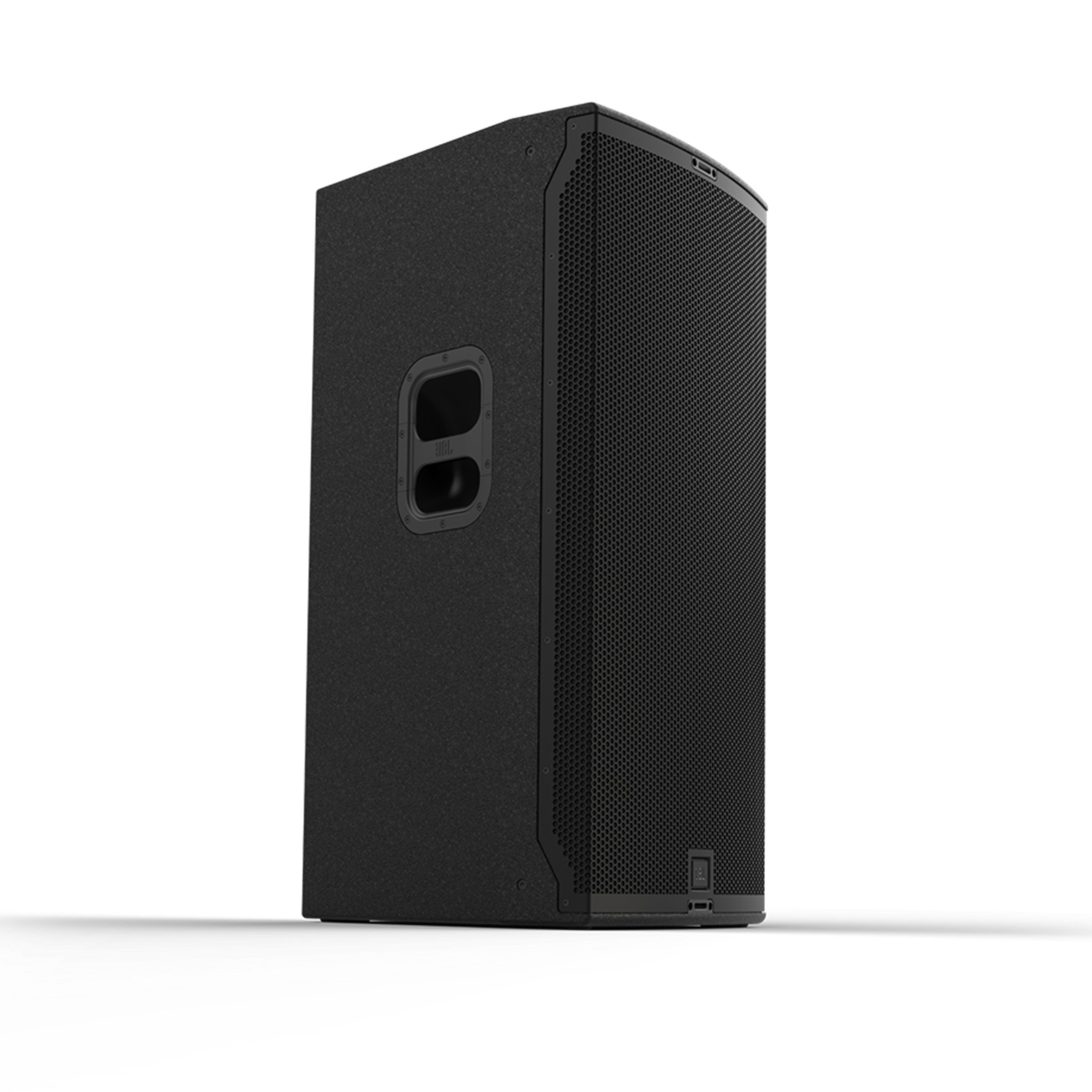

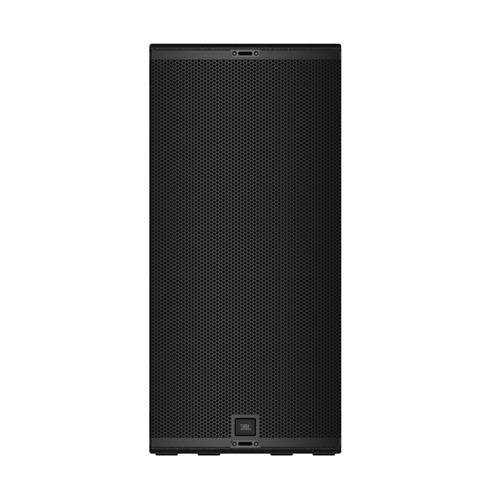

The SRX922 is a compact, acoustically three-way, dual 12-inch powered point-source loudspeaker engineered for applications requiring high output and precise directivity control from a trapezoidal full-range enclosure. It is an ideal choice for high-output mains systems, side-fills, or as a high-performance point-source element within larger SRX900 deployments.

The system delivers an exceptional output-to-weight ratio thanks to its innovative acoustic design, with dual LF woofers providing higher output than traditional 15-inch three-way systems in a significantly more compact enclosure. Multiple M10 QuickLink™ suspension points support fast, secure integration with a variety of dedicated accessories for touring and installed applications.

Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.

Key Features Continued:

  • DSP includes 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools
  • Eight M10 Quick-Link™ attachment points are provided for suspension using standard M10 eye bolts
  • Constructed from outdoor-grade Baltic birch plywood for excellent durability

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10dB) 40 Hz-17.5 kHz
Coverage Pattern 90° x 60°
Maximum SPL 138 dB
System Type Point-source, acoustically three-way, bi-amplified, powered
Amplifier Design Class-D
Continuous Power Rating 1100 Watts | LF: 550 Watts | MHF: 550 Watts
LF Driver (2) JBL 2273G, 12 in diameter, dual 3.0 in diameter voice coil, ferrite Differential Drive®
MF Driver (1) JBL 196H-1, 6.0 in diameter, 1.5 in diameter voice coil, ferrite
HF Driver (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil
Enclosure Exterior grade birch plywood, DuraFlexTM finish, two integral handholds, two integral recessed handles
Suspension (8) JBL QuickLink M10 points
Dimensions (H x W x D) 944 mm x 440 mm x 505 mm
(37.2 in x 17.3 in x 19.9 in)
Net Weight (each) 45.5 Kg (100 lbs)
