JBL EBK4-M10-20 - Universal M10 Eyebolt Kit

Product Code: JBL EBK4-M10-20

Key Features
  • Universal eye bolt kit
  • Compatible with QuickLinkTM fitted products
  • Threads: M10
  • Shank length: 20 mm

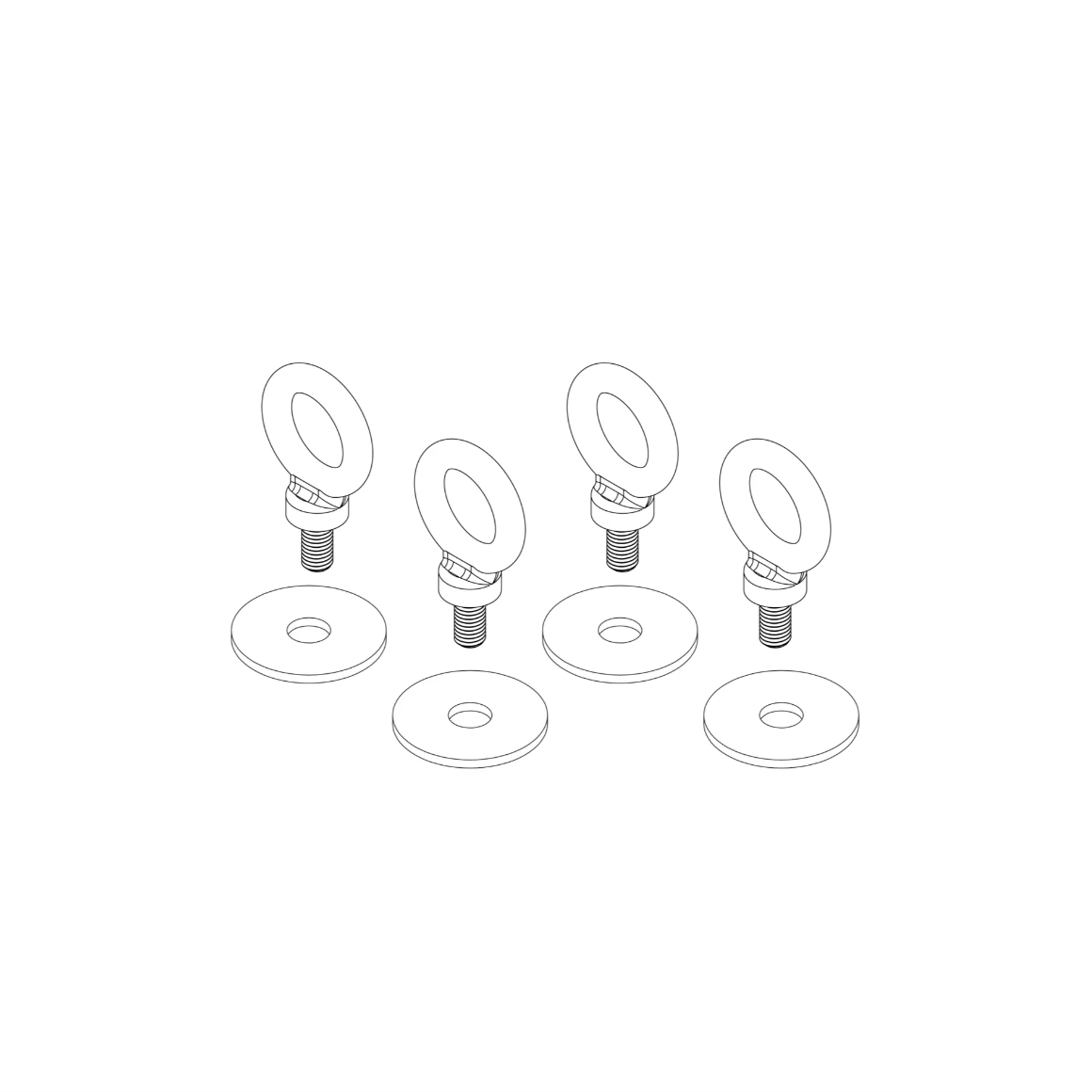

  • Includes 4 x M10 Eye Bolts and 4 x Washers
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL EBK4-M10-20 - Universal M10 Eyebolt Kit

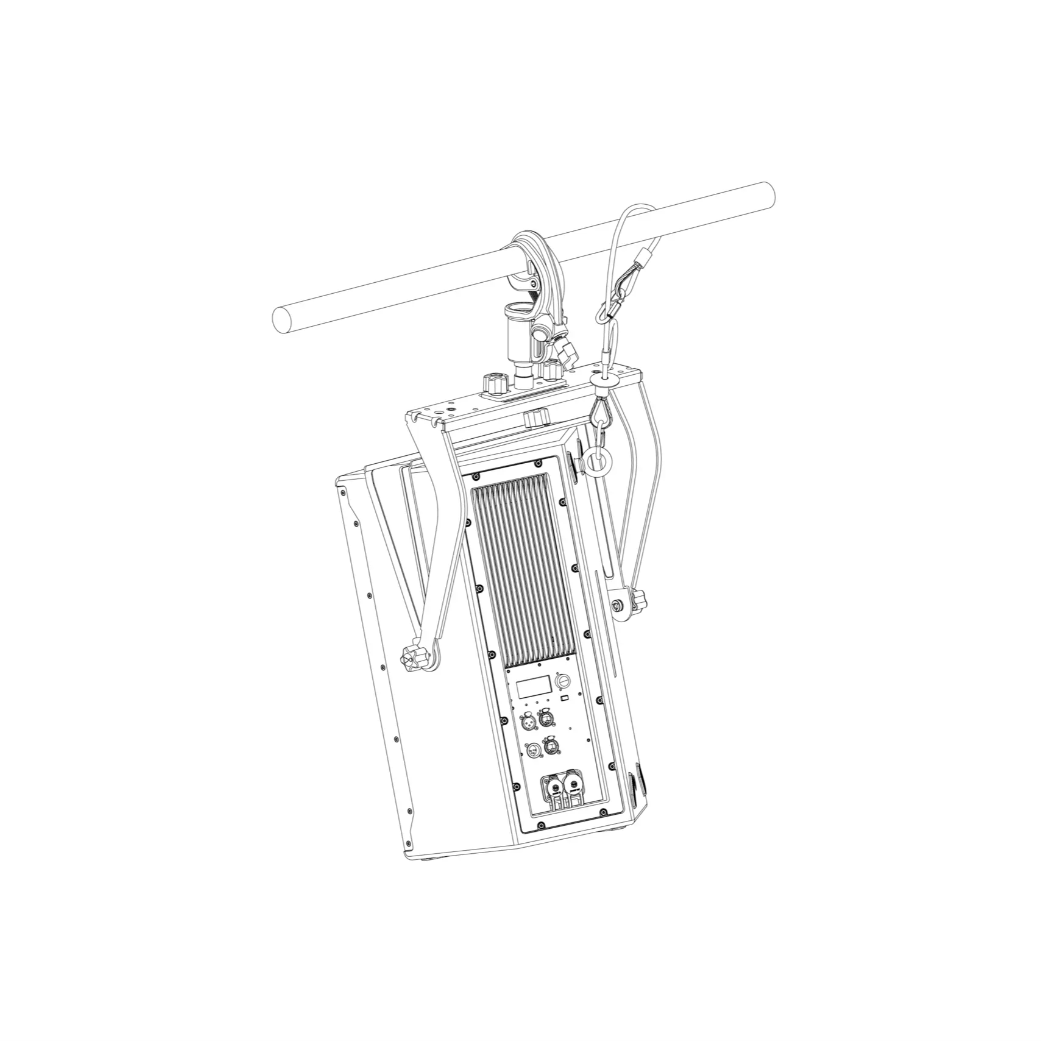

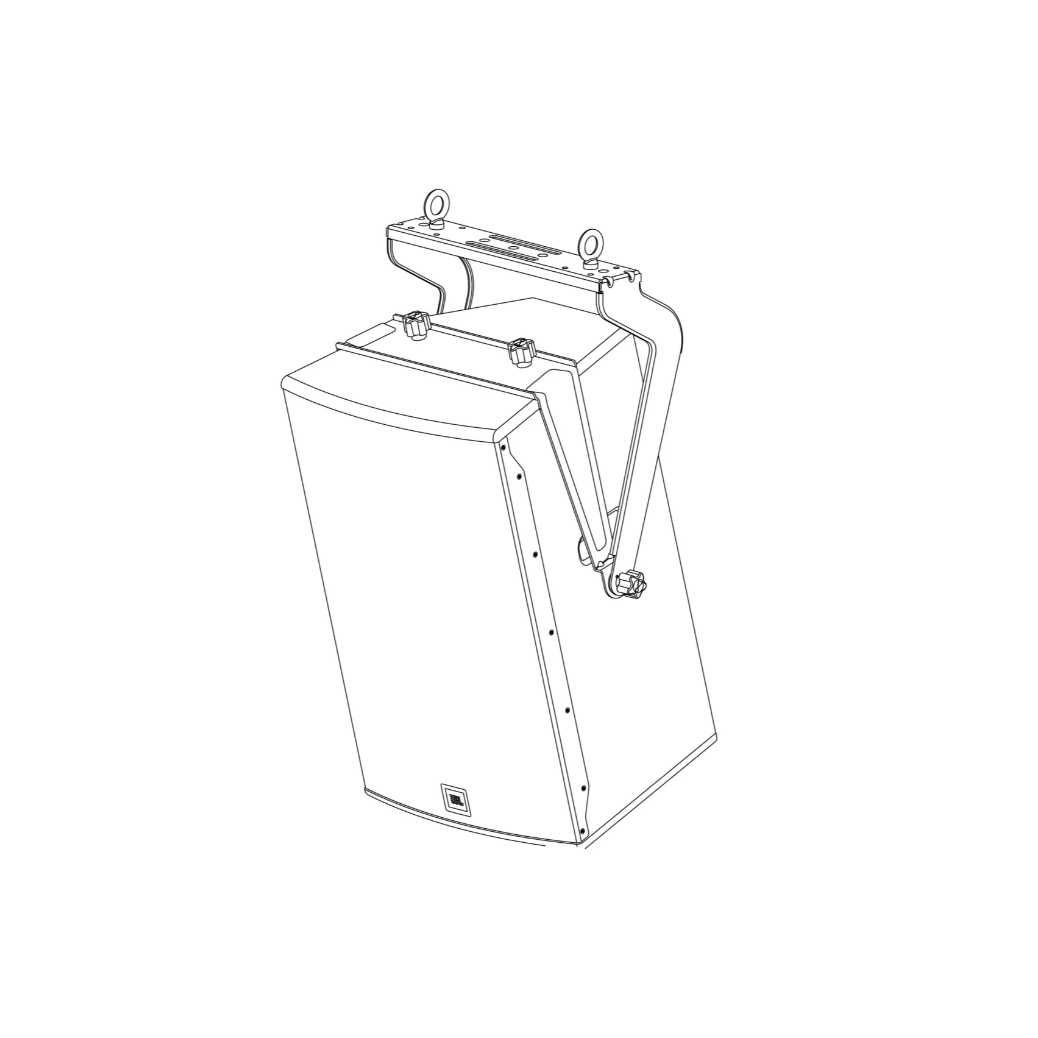

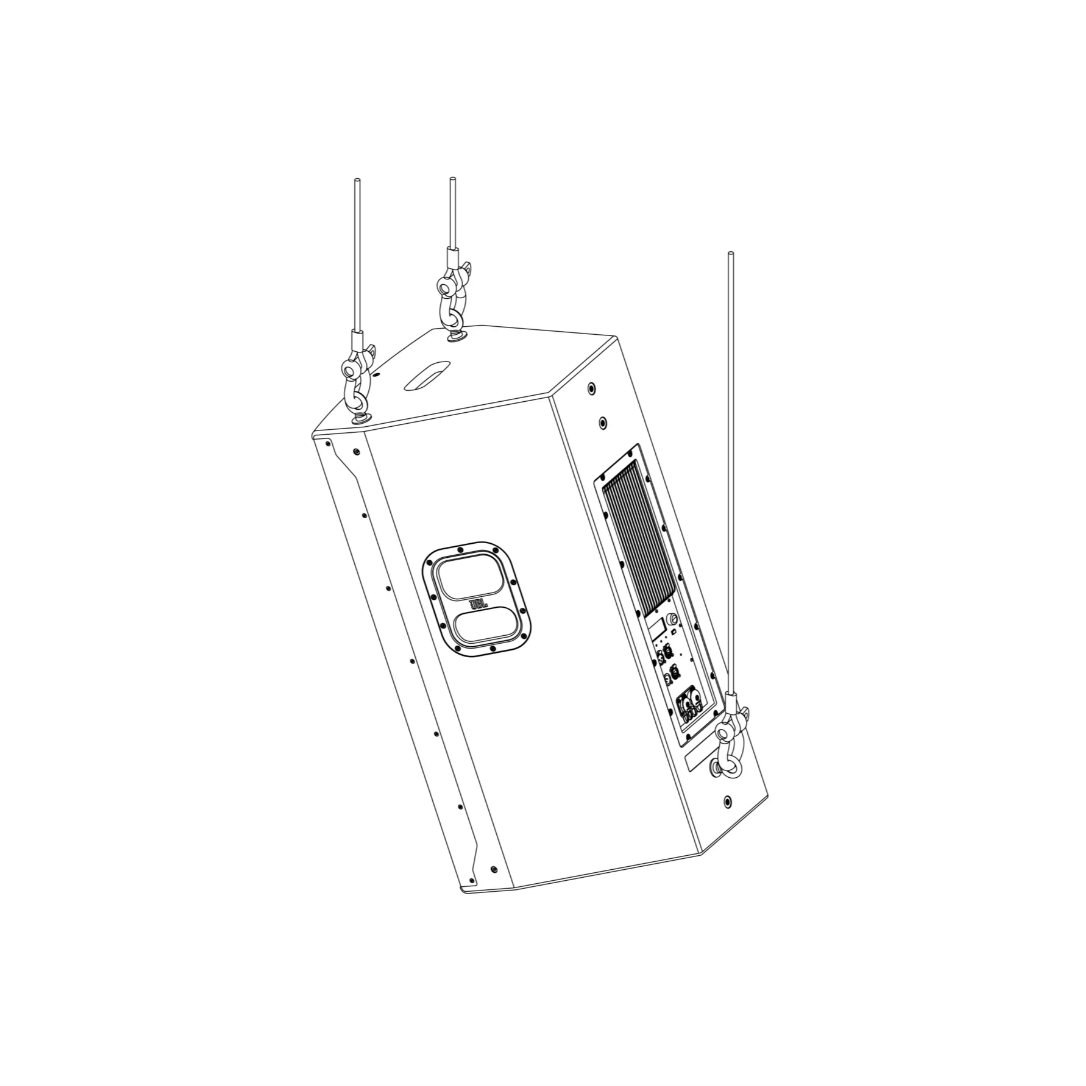

The EBK4 M10-20 eyebolt kit includes four M10 x 20 mm shoulder steel eyebolts for suspension installation of select JBL speakers. The M10 x 20 mm eyebolts are designed to work with JBL products fitted with QuickLinkTM M10 attachment points. Four load spreading washers for use with wooden and plastic enclosures are included. The eyebolts are Manufactured to ASME-ANSI B18.15 standard with DIN580 specifications.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Construction Eye Bolt Forged carbon steel
Construction Stainless steel
Thread Type M10 x 1.5
Shank Length 20 mm
Eyelet Opening 24 mm
Working Load Limit (WLL) 0° = 230 kg, 45° = 170 kg, 90° = 115 kg
Safety Factor (10:1)
Dimensions (H x W x D) 63 mm x 44 mm x 25 mm
Net Weight 0.4 kg
Shipping Weight 0.5 kg
