JBL SRX912M - 12-Inch Powered Multi-Purpose Speaker

Product Code: JBL SRX912M

Key Features
  • Single 12-inch low-frequency driver and neodymium 1.5-inch annular-diaphragm compression driver
  • 272F woofer employs JBL’s patented Differential Drive technology
  • Dual 2-inch voice coils and a ferrite magnet provide ideal balance of output, weight, and thermal performance
  • 90° × 60° Progressive Transition waveguide ensures smooth, predictable coverage
  • LF extension reaches down to 50 Hz
  • 80 Hz high-pass preset available for applications using SRX900 subwoofers

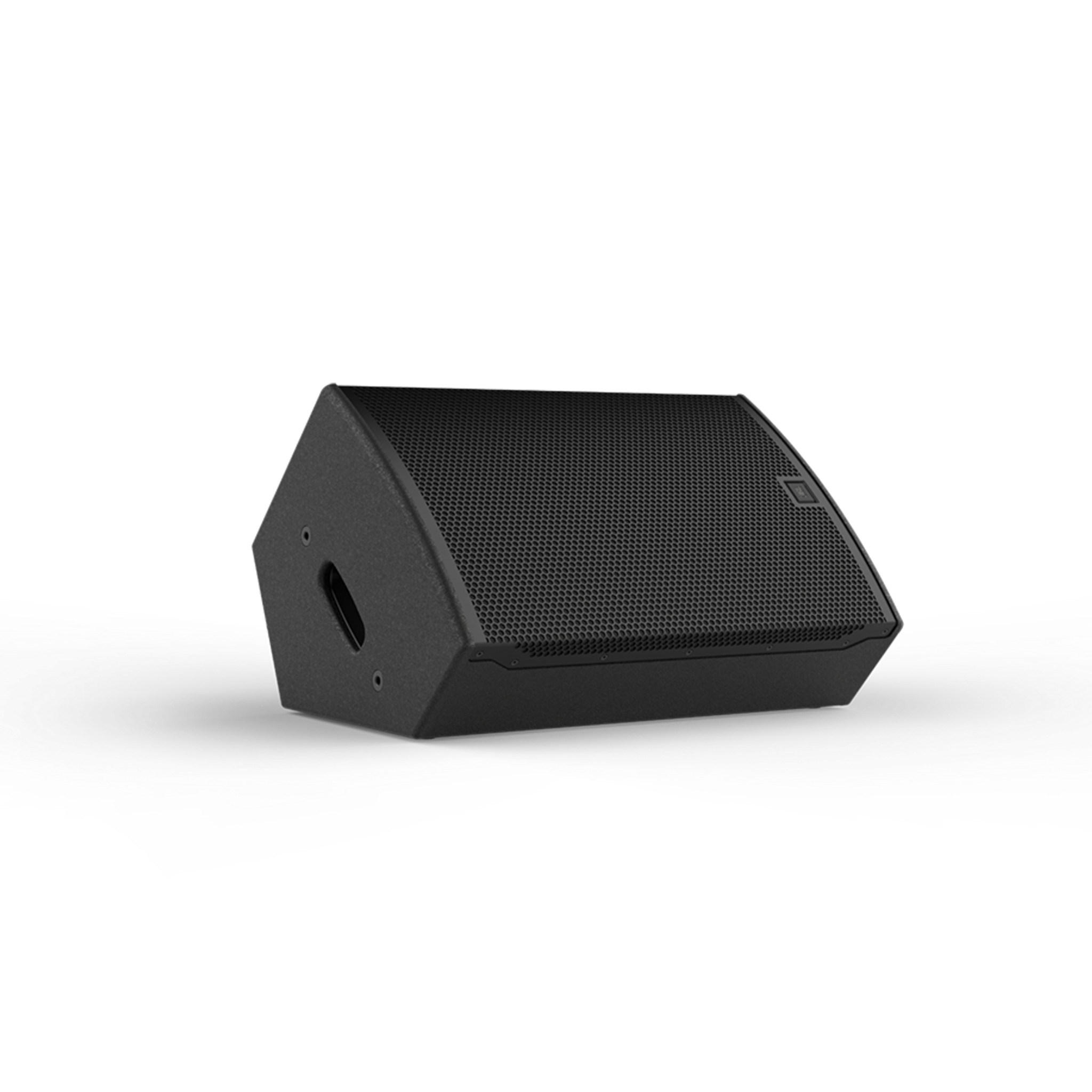

  • 42-degree monitor angle
  • Voicing and phase response optimized to match SRX900 line-source products
  • Integrated amplification delivers plug-and-play operation

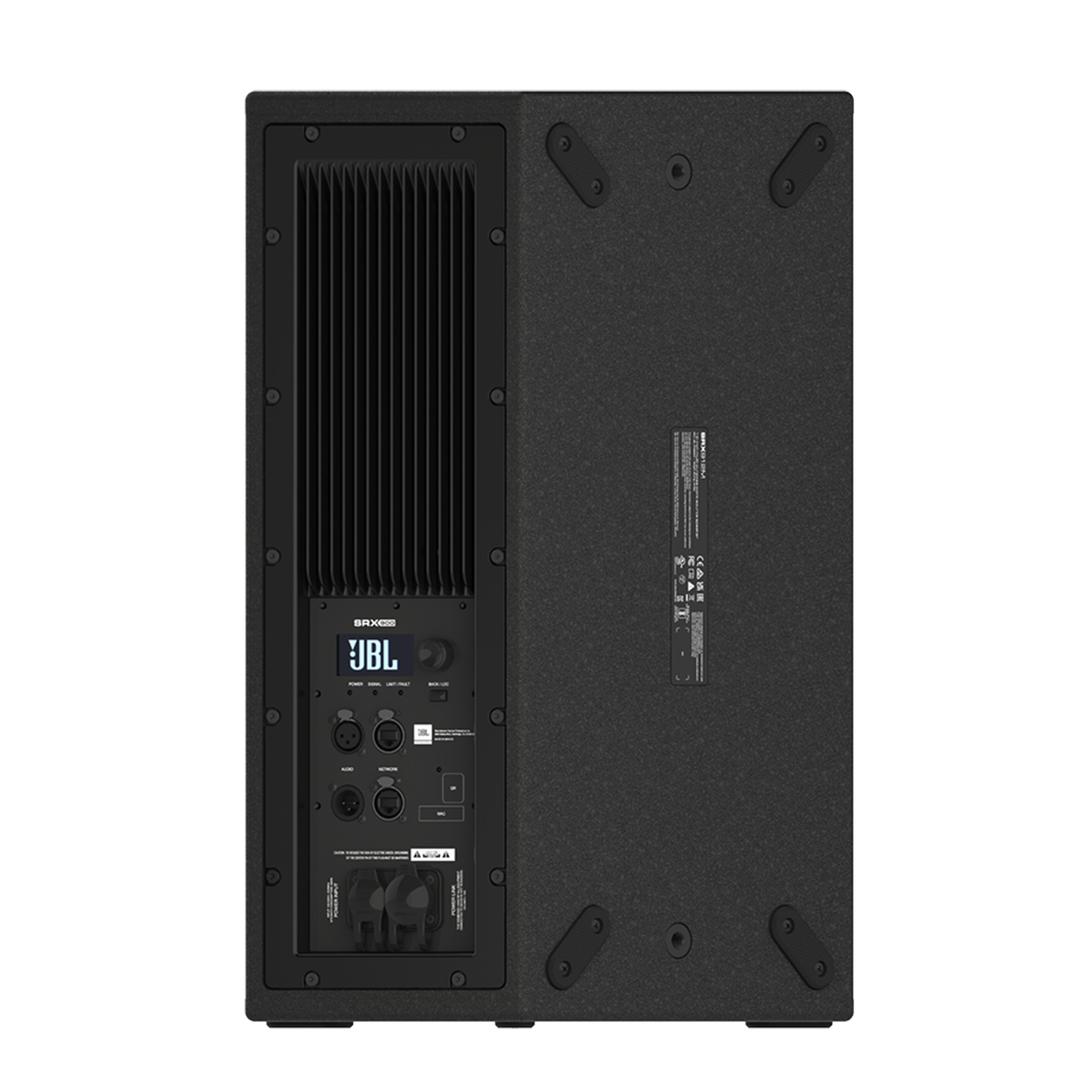

  • Rear LCD enables fast configuration
  • DSP includes 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools
  • Six M10 Quick-Link attachment points are provided for suspension using standard M10 eye bolts
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL SRX912M - 12-Inch Powered Multi-Purpose Speaker

The SRX912M is an exceptionally compact, multi-purpose, two-way 12-inch powered point-source loudspeaker that delivers remarkably high output for its size. It is designed for a wide range of applications, including use as a main PA, stage monitor, or front fill. When deployed as a stage monitor, the enclosure’s multi-purpose design provides a 42-degree monitor angle in an ultra-low-profile package.

Multiple M10 QuickLink™ suspension points support quick and secure integration with a variety of accessories for both portable and installed sound applications. Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world.

JBL transducers and proprietary Progressive Transition™ waveguides deliver outstanding fidelity and best-in-class SPL from an enclosure of this size. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10dB) 50 Hz-20 kHz
Coverage Pattern 90° x 60°
Maximum SPL 133 dB
System Type Multi-purpose point-source, two-way powered
Amplifier Design Class-D
Continuous Power Rating 600 Watts | LF: 400 Watts | HF: 200 Watts

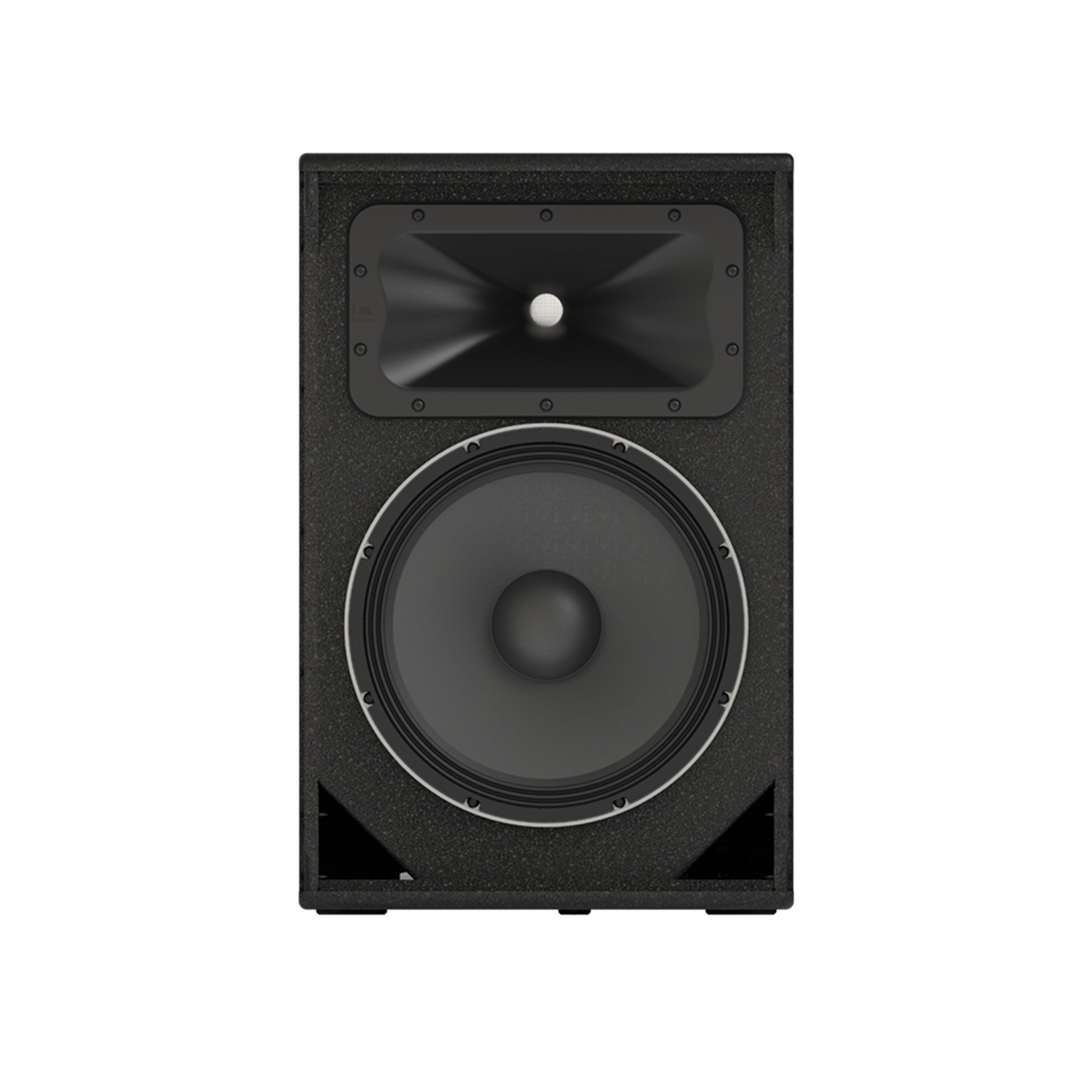

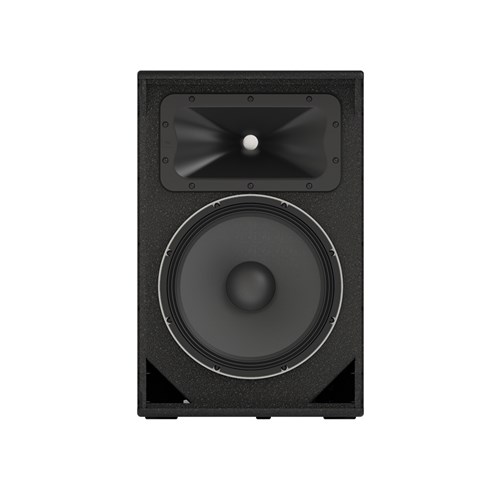

LF Driver (1) JBL 272F, 12 in diameter, dual 2.0 in diameter voice coil, ferrite Differential Drive®
HF Driver (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil
Enclosure Exterior grade birch plywood, DuraFlex finish, one integral handhold
Suspension (6) JBL QuickLink M10 points
Dimensions (H x W x D) 585 mm x 380 mm x 341 mm
(23.0 in x 15.0 in x 13.4 in)
Net Weight (each) 20.6 kg (45 lbs)
