JBL RC100 - Universal Rotating Clamp - WLL 100 Kg

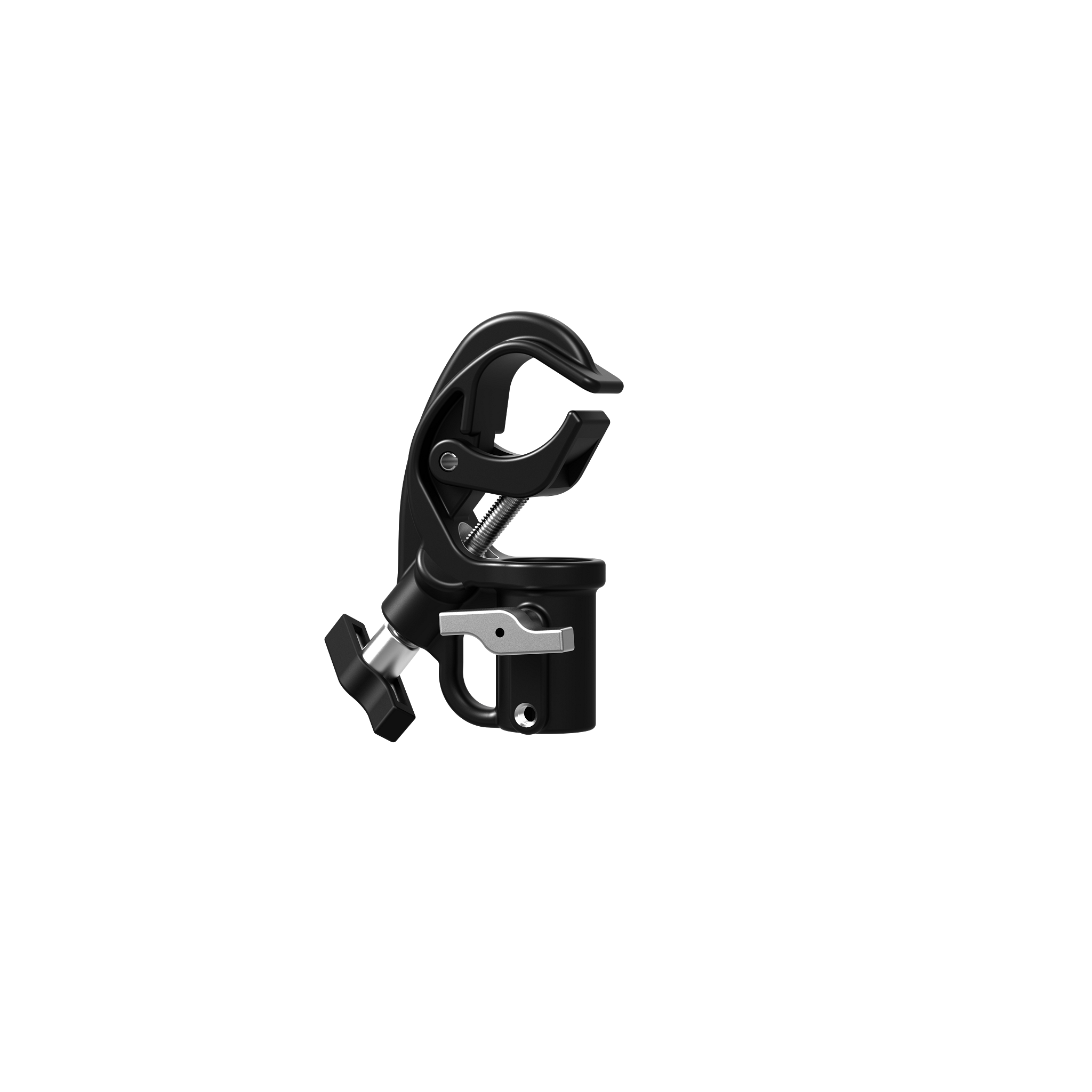

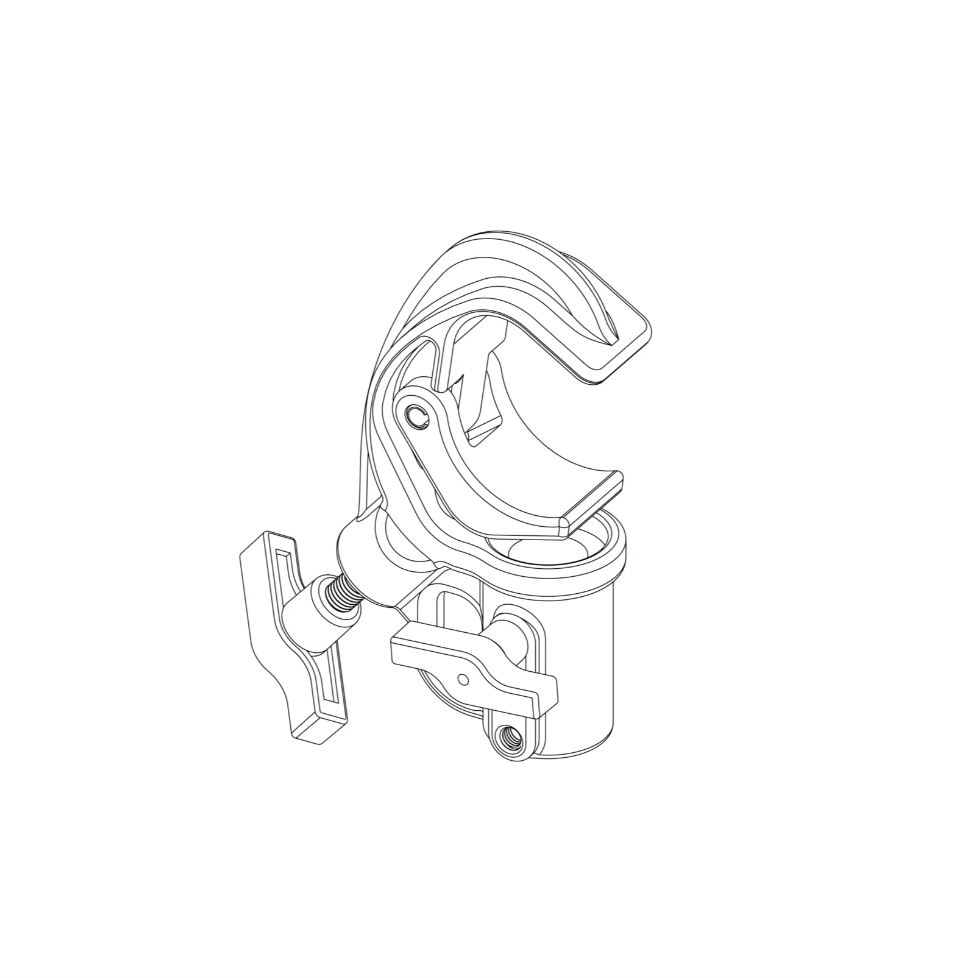

JBL RC100 - Universal Rotating Clamp

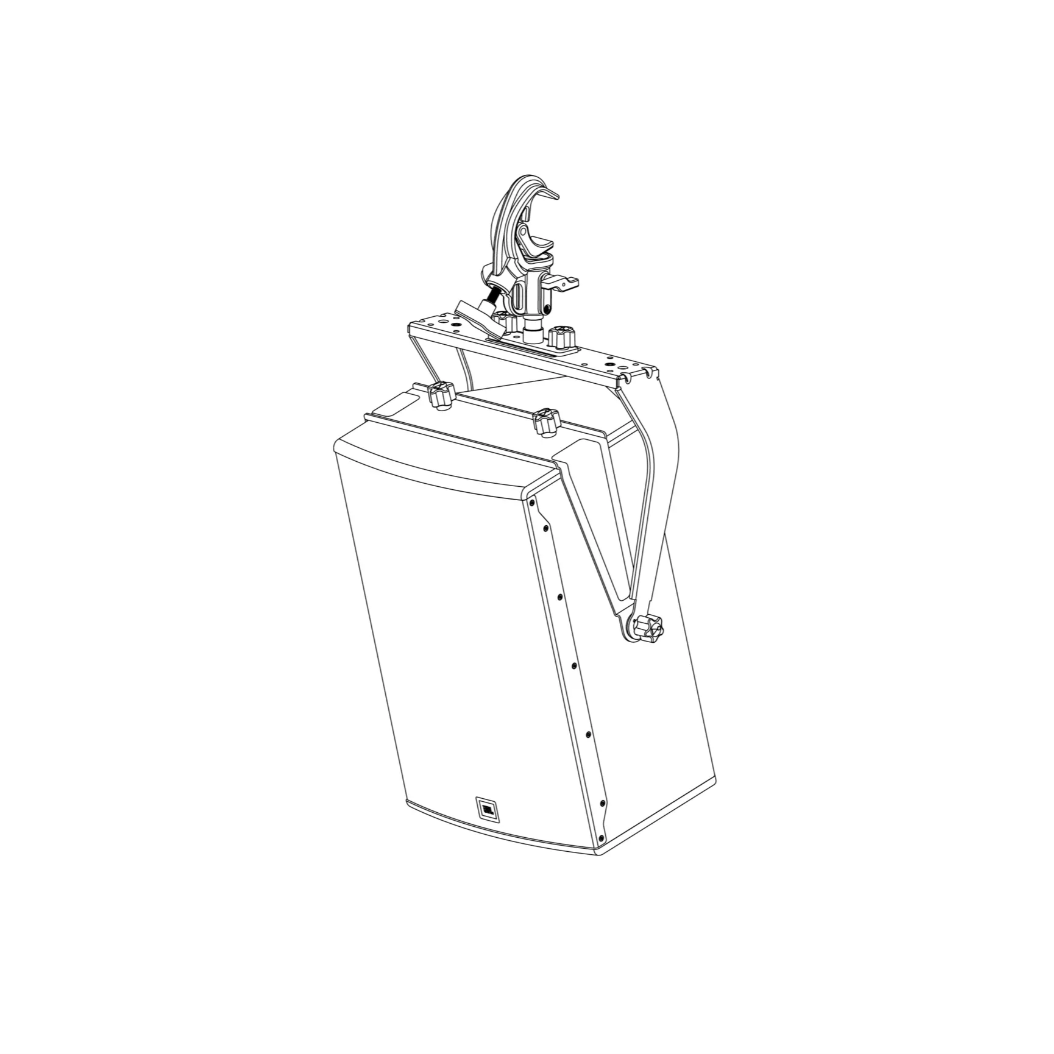

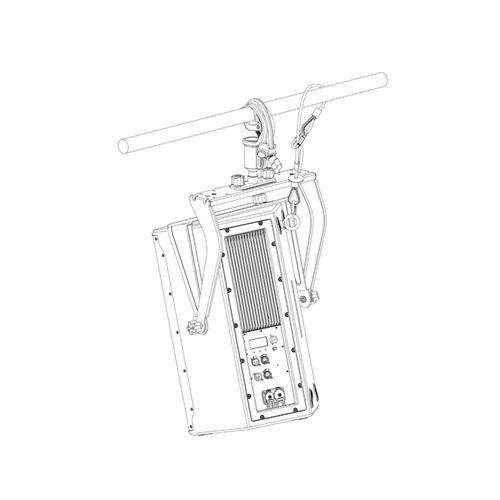

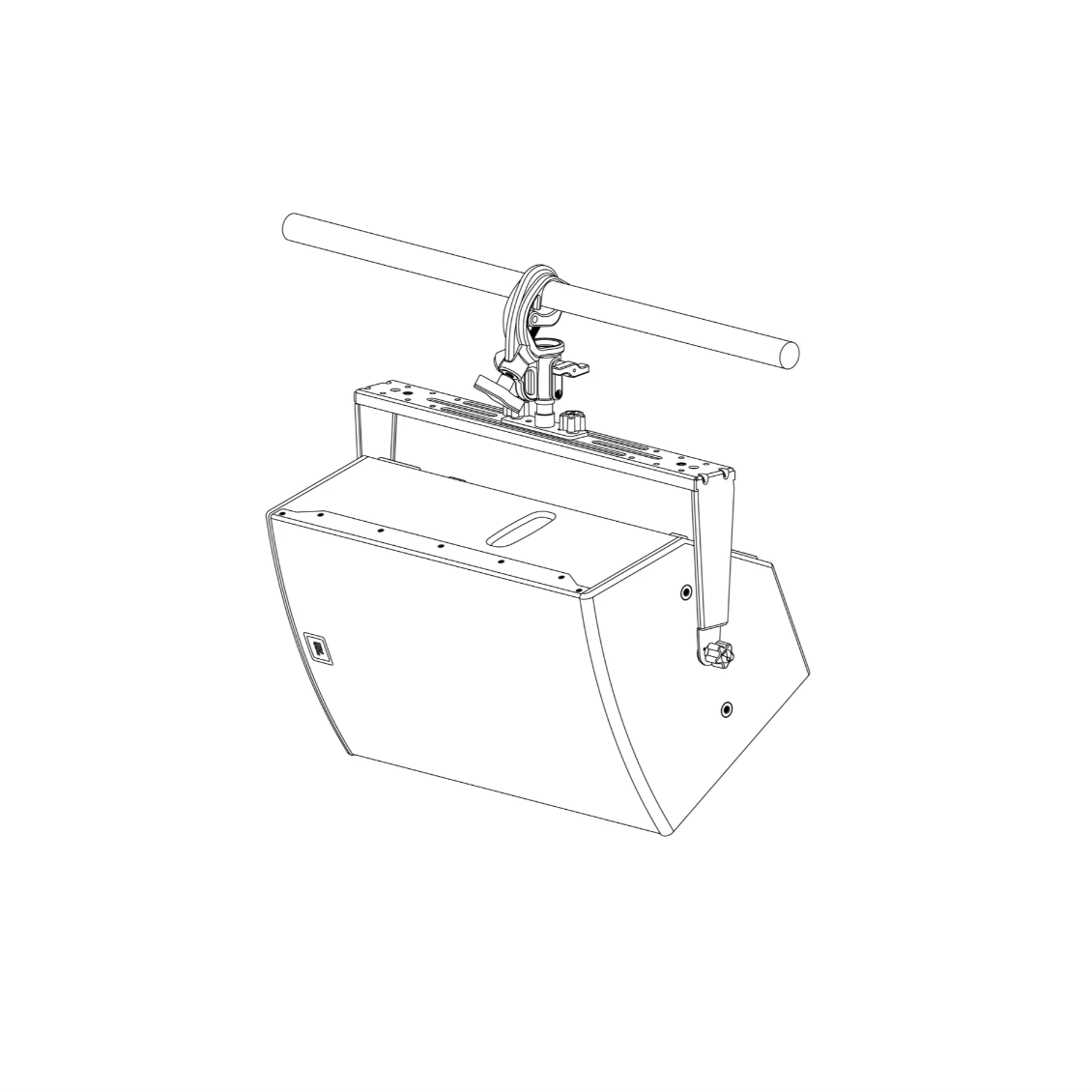

The RC100 is a universal truss and pipe adapter designed for suspending JBL Professional products from standard truss structures or pipes. It features a quick-action locking mechanism that allows fast, secure attachment, followed by fine adjustment using the rubber-covered T-handle. The clamp supports loads up  to 100 kg (220 lb). Its wide coupling range accommodates most industry-standard pipe diameters from 40–70 mm (1.57–2.75 in) and allows for smooth 360-degree rotation, even under load. To ensure safe operation, the RC100 includes a dedicated safety cable slot and a built-in safety pin for securing loads or attached adapters. The RC100 is compatible with standard TV spigot–style attachments, such as the JBL Professional TV-SPIGOT T (sold separately). For detailed use cases, safety information, and installation guidelines, refer to the manuals and documentation for the associated products.
