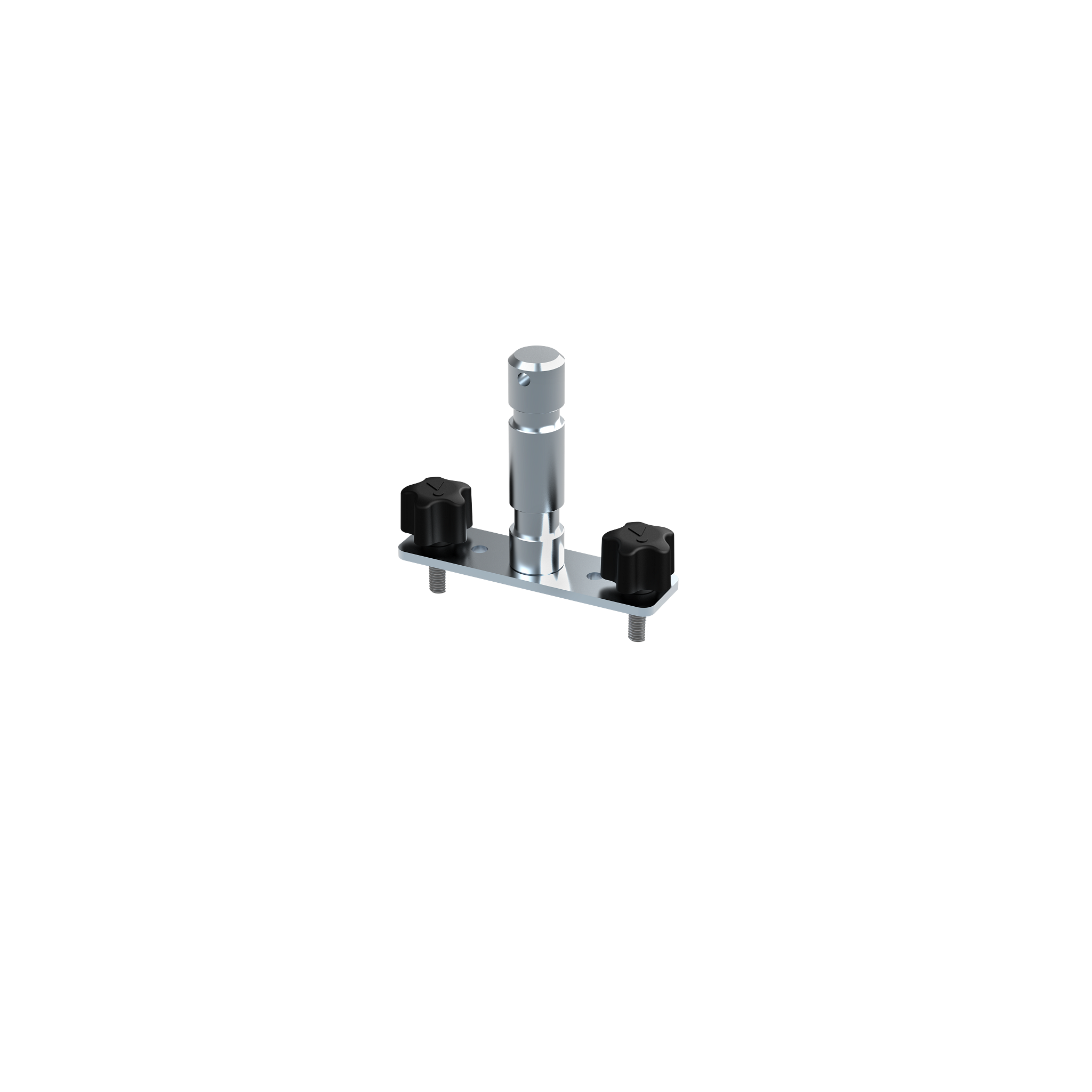

JBL TV-SPIGOT-T - Universal TV Spigot Adaptor for use with RC100

Product Code: JBL TV-SPIGOT-T

Key Features
  • Universal TV-SPIGOT adapter
  • Built to standard dimensions
  • Includes M10 knobs and washers
  • Compatible with the RC100
  • Connects to compatible JBL U-brackets
  • Includes 1 x SPIGOT, 2 x M10 Knobs and 2 x M10 Washers
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL TV-SPIGOT-T - Universal TV Spigot Adaptor for use with RC100

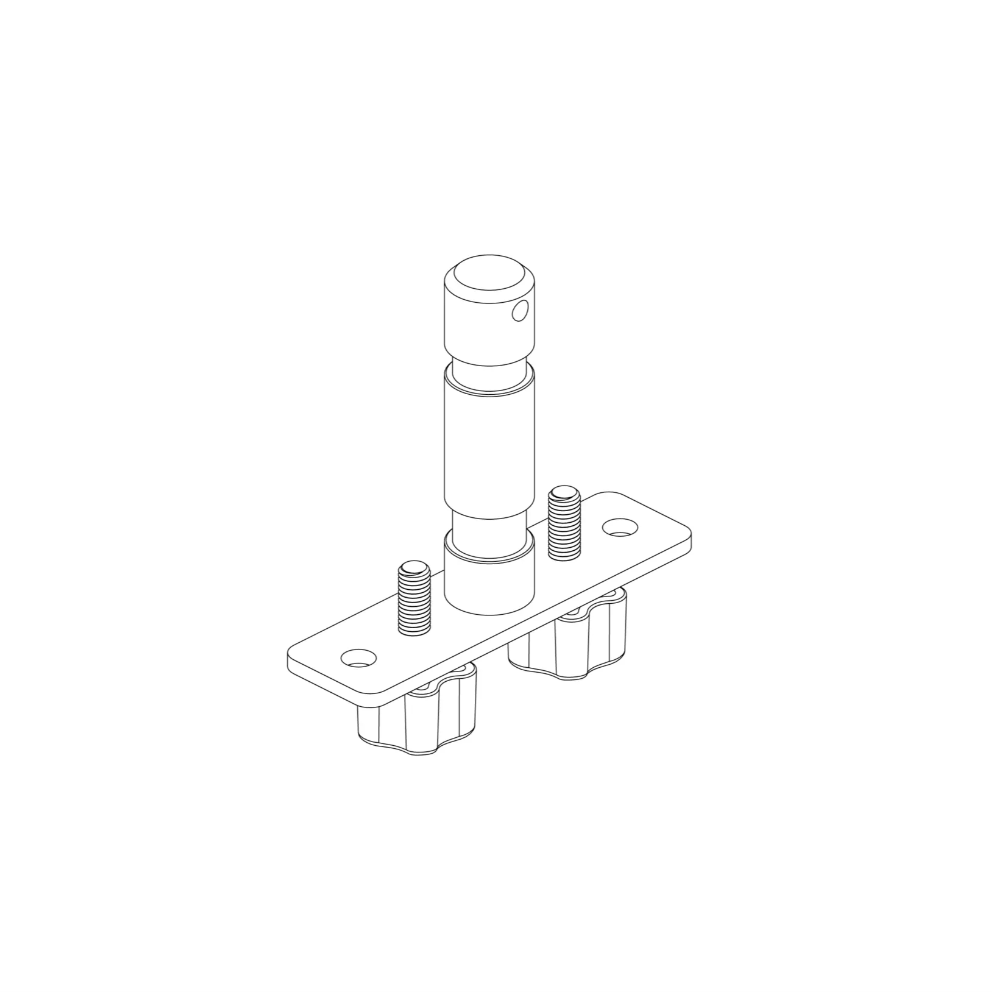

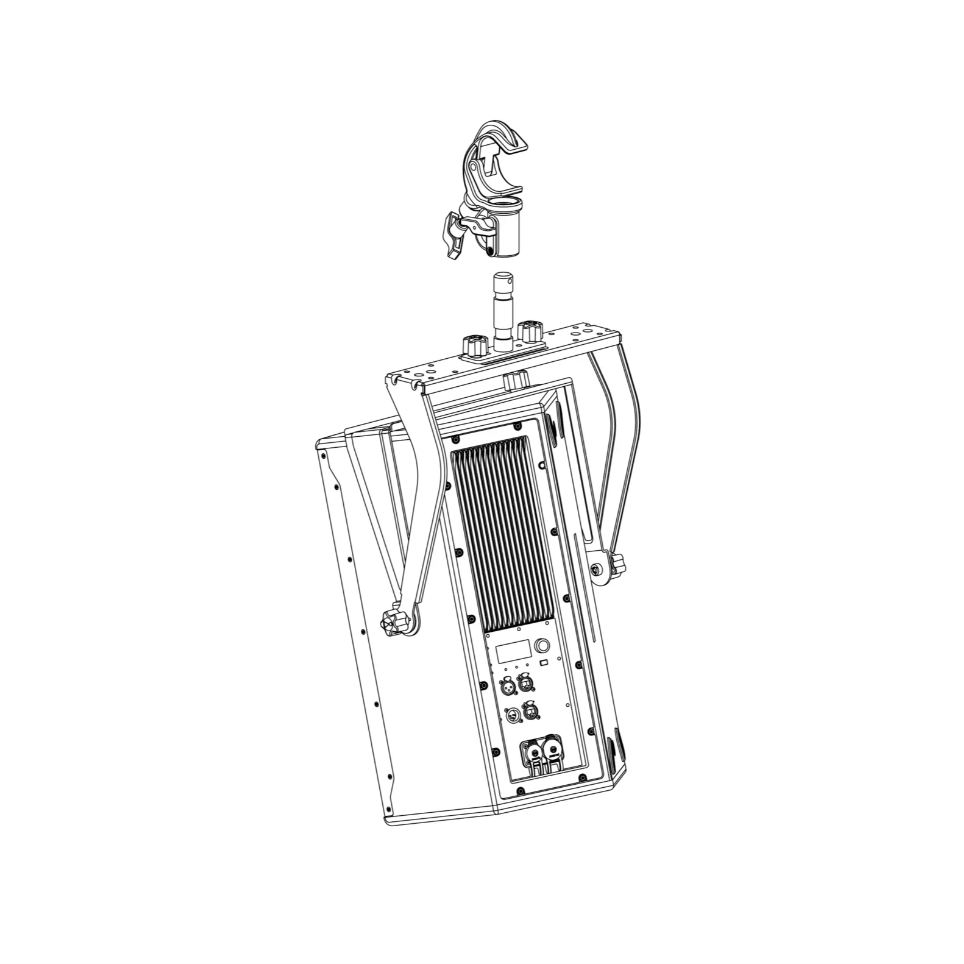

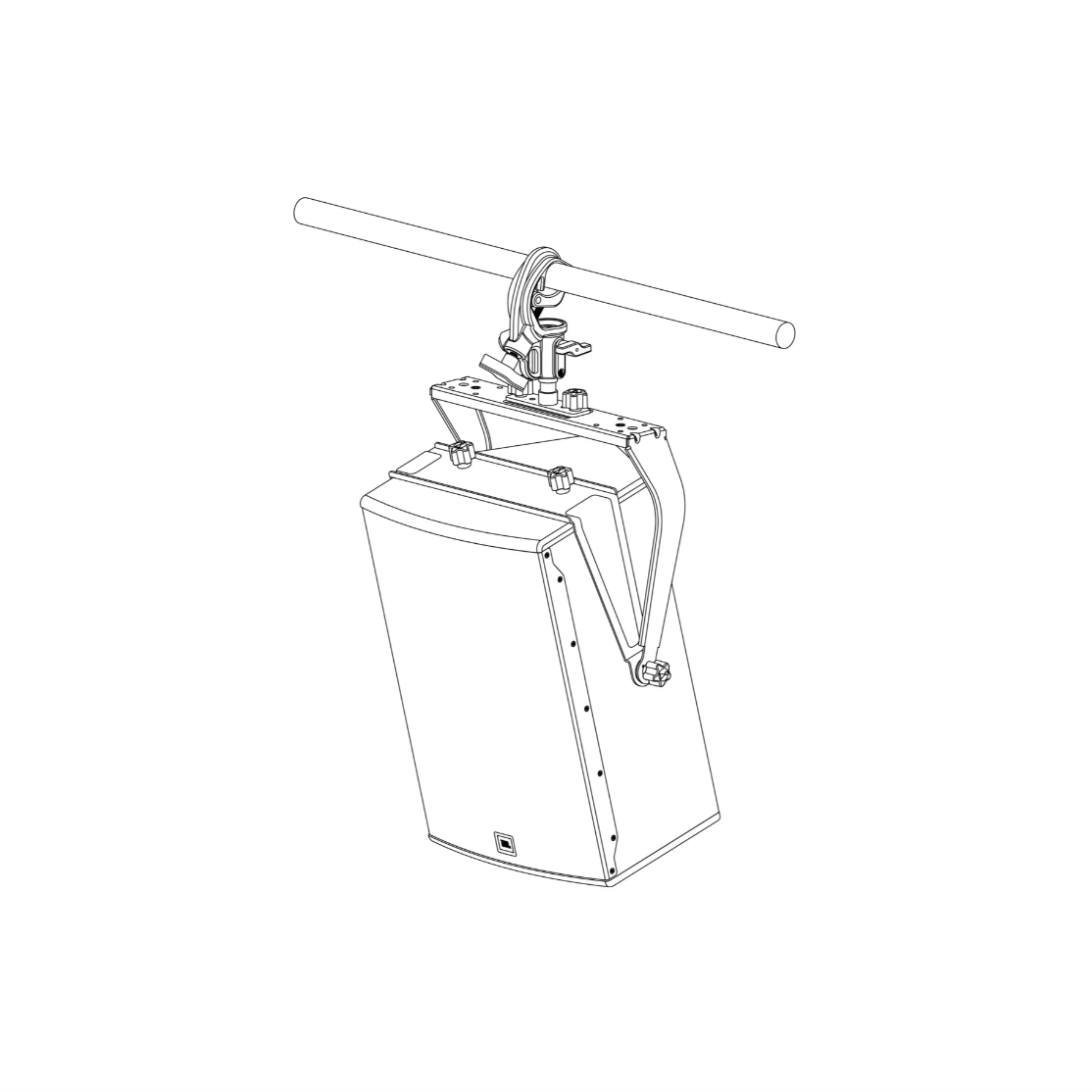

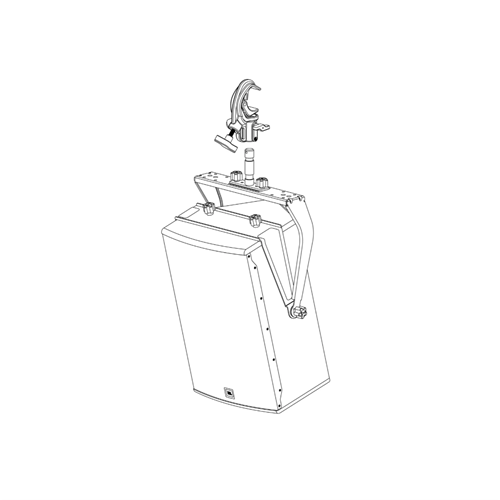

The TV SPIGOT T is a universal adapter designed for attaching compatible JBL Professional U-brackets to standard-size clamps, such as the RC100 Rotating Clamp (sold separately). The adapter connects to the U-bracket using the two central M10 attachment points typically reserved for pole-mount adapters. The adapter is manufactured to standard TV-spigot dimensions and is compatible with a wide range of industry-standard clamps. The adapter is supplied with two M10 knobs and washers for secure installation and includes two integrated M10 threaded storage holes for retaining the knobs when not in use. For detailed use cases, safety information, and compatibility guidelines, refer to the manuals and documentation for the associated products.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Construction Stainless steel with anti-corrosion coating
Finish Silver-gray, PTFE coating
Working Load Limit (WLL) 100 kg
Dimensions (H x W x D) 120 mm x 145 mm x 40 mm
Net Weight 0.9 kg
Shipping Weight 1.0 kg
