AUDIOropa PRO IR-102 Kit for Small to Medium Spaces

Product Code: HT PROIR102KIT

Key Features

The PRO IR 102 Kit Comprises of the Following:

  • 1 x PRO IR-202 IR-Transmitter (HT A-4082-0)
  • 2 x PR-22 Belt Pack IR Receiver (HT A-4037-0)
  • 2 x Single Charger for PR-22 (HT A-4971-0)
  • 1 x Mono Neck Loop (HT A-4928-0)
  • 1 x Headphones (HT A-4908-0)
$2,539.10 GST Exempt
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

AUDIOropa PRO IR-102 Kit for Small to Medium Spaces

COMPONENTS:

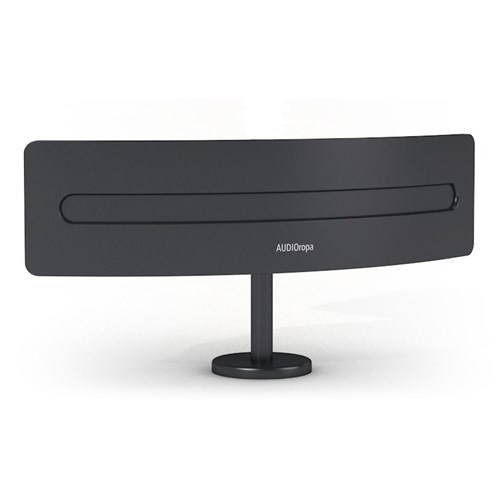

1 X PRO IR-202 IR-TRANSMITTER :

The transmission energy of PRO IR-202 Transmission/Modulator unit (Master) is spread in a club-shape in the room with a broad aperture angle (see illustration bottom right). The audio transmission is interference-free due to the infrared signal modulation in 2.3 and/or 2.8 MHz. The combination of the PRO IR-202 with a further PRO-IR-202 transmitter, set up as a slave, increases the range and the dispersion angle of the infrared signals to up to 240°.

A set for ceiling and wall mounting is included in the package. A tripod (Art.-No: A-4986-0) is available as an accessory.

  • Broad exit angle of infrared signals
  • Configuration with 1 and/or 2 channel transmission
  • Combined use: Up to two PRO IR-202 transmitters can be unified into a Master/Slave unit
  • Power supply of Slave unit via a connection cable through the master unit
  • Operation of Master-Slave configuration with a single power supply unit
  • Usable as a fixed (wall or ceiling mount) or movable installation (e.g. tripod)

Combined operation

Combining two PRO IR-202 is achieved with the included installation kit. The units mounted on top of each other can be freely turned to the required angles to achieve optimal signal supply in the room. The range of the Master with 2 Slave units is up to 560 m² at one-channel transmission - ideal for large rooms.

With the selection of the suitable receiver type (RCI-102, PR-22  or IP112) the range can be further influenced, depending on the sensitivity of the receiver diodes.

2 X PR-22 BELT PACK IR RECEIVER:

The »PR-22 « features Automatic Gain Control and very high sensitivity for incoming infrared signals. The high maximum output volume makes it an ideal receiver for people with impaired hearing.

The 3.5 mm audio jack allows the connection of a wide range of different audio components, such as:

  • Underchin headphones
  • Light-weight headphones
  • Earphones
  • Neckloops
  • Direct audio links for e.g. CI-systems

2 X SINGLE CHARGER FOR PR-22 :

Single recharger for the PR-22 receiver.

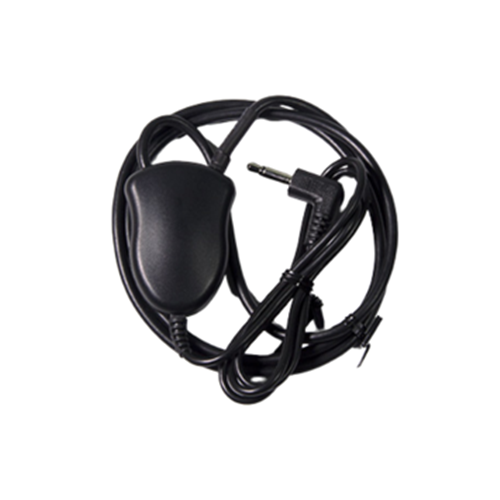

1 X MONO NECK LOOP:

Inductive audio transmission to hearing aids or CI systems via the T-coil (switch set to »T« or »MT«)

1 X HEADPHONES:

Lightweight Headphones.

Exempt from GST under exemption code R11

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Power supply Master: power supply unit input: 100-240V AC, 50-60 Hz,
Exit: 48V DC, 0.5A (2.5 mm barrel plug, centre contact »positive«)
Slave: power supply via direct connection cable from Master
Connection cable 2 x hollow plug 2,5 mm
Carrier frequency 50 kHz to 8 MHz
Infrared transmission power 0,7 W
Ranges / Supply areas Transmission/Modulator unit (Master): 1-channel operation 180 m²
Note: The transmitter cannot be used without the transmission/modulator unit.
One transmission/modulator unit (Master) one transmitter (Slave): 1-channel operation 370 m²
Input
As Master Line-input: Cinch channel 1 and channel 2
Microphone input: 3.5 mm jack plug, sensitivity adjustable via control dial
As Slave 6,3 mm stereo jack
Output
Master: 6,3 mm stereo jack and DC power out
Function display
LED Power supply/equipment status (green LED)
Transmitting/cable status (yellow LED)
The LED displays can be switched off with slide switch.
Mechanical data
Ambient conditions 0 – 50 °C ambient temperature (non-condensing, non-corrosive environment)
Mounting types Wall or ceiling mount: installation kit BKT 024 microphone stand
Dimensions 254 x 79 x 64 mm (B x D x H) incl. front panel
Color black with white lettering, red acrylic stripe. White front panel also included
Weight 300 g
Certification CE, FCC, WEEE, RoHS

PR-22 BELT PACK IR RECEIVER

Frequency range 60 Hz to 12 kHz ± 3 dB
Receiver frequencies 3.8 MHz • 3.3MHz • 2.8 MHz • 2.3 MHz (switchable)
Distortion < 1%
signal-to-noise ratio 60 dB
max. volume 120 dB
Reception angle 360°
Weight ca. 200 g (inkl. Batterien)
