AUDIOropa IR-KIT-2 Kit for Small to Medium Spaces

AUDIOropa IR-KIT-2 Kit for Small to Medium Spaces

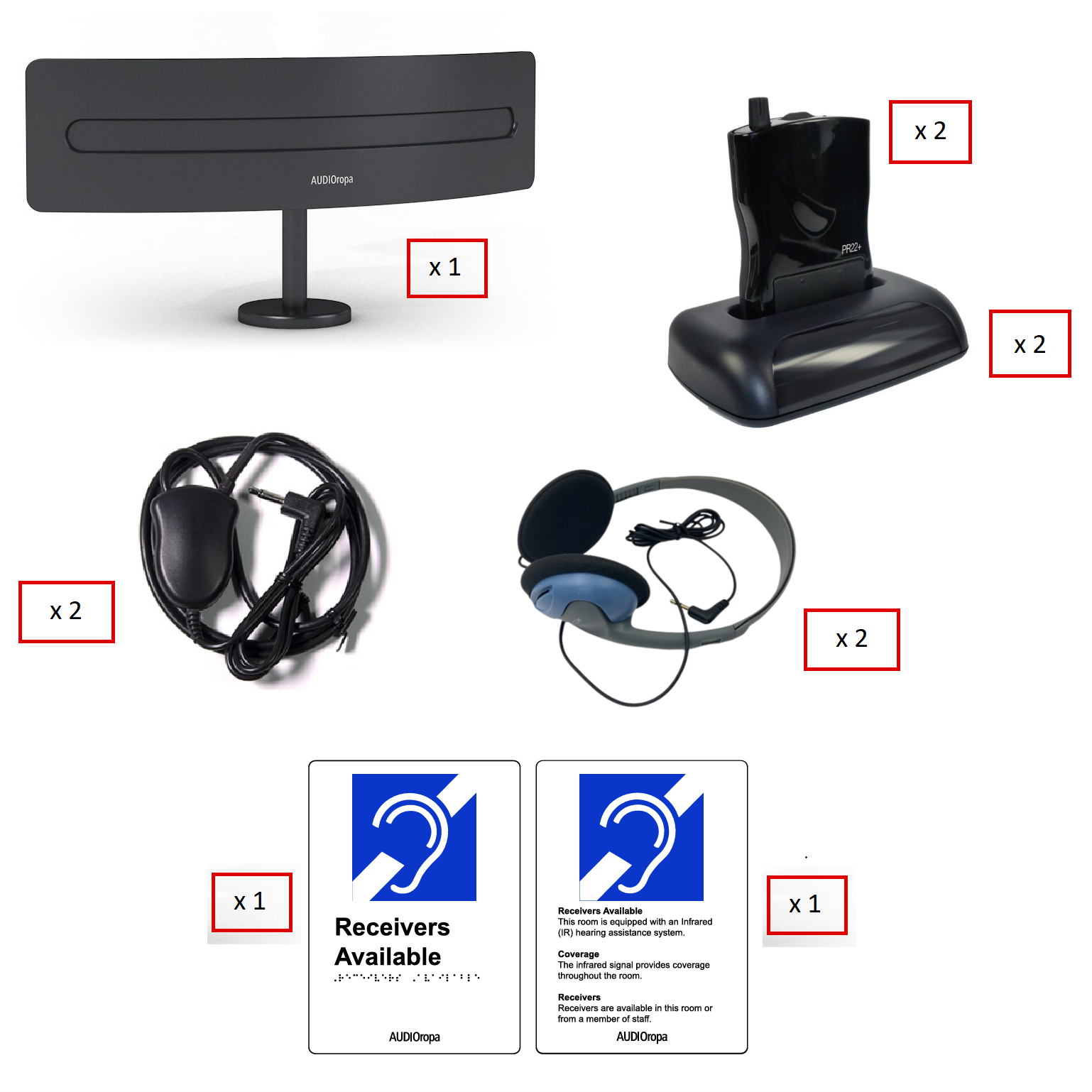

COMPONENTS:

1 X A-4082-0 PRO IR-202 IR-TRANSMITTER :

The transmission energy of PRO IR-202 Transmission/Modulator unit (Master) is spread in a club-shape in the room with a broad aperture angle (see illustration bottom right). The audio transmission is interference-free due to the infrared signal modulation in 2.3 and/or 2.8 MHz. The combination of the PRO IR-202 with a further PRO-IR-202 transmitter, set up as a slave, increases the range and the dispersion angle of the infrared signals to up to 240°.

A set for ceiling and wall mounting is included in the package. A tripod (Art.-No: A-4986-0) is available as an accessory.

• Broad exit angle of infrared signals
• Configuration with 1 and/or 2 channel transmission
• Combined use: Up to two PRO IR-202 transmitters can be unified into a Master/Slave unit
• Power supply of Slave unit via a connection cable through the master unit
• Operation of Master-Slave configuration with a single power supply unit
• Usable as a fixed (wall or ceiling mount) or movable installation (e.g. tripod)

Combined operation

Combining two PRO IR-202 is achieved with the included installation kit. The units mounted on top of each other can be freely turned to the required angles to achieve optimal signal supply in the room. The range of the Master with 2 Slave units is up to 560 m² at one-channel transmission - ideal for large rooms.

With the selection of the suitable receiver type (RCI-102, PR-22+ or IP112) the range can be further influenced, depending on the sensitivity of the receiver diodes.

2 X A-4037-0 PR-22+ BELT PACK IR RECEIVER:

The »PR-22+« features Automatic Gain Control and very high sensitivity for incoming infrared signals. The high maximum output volume makes it an ideal receiver for people with impaired hearing.

The 3.5 mm audio jack allows the connection of a wide range of different audio components, such as:

• Underchin headphones
• Light-weight headphones
• Earphones
• Neckloops
• Direct audio links for e.g. CI-systems

2 X A-4971-0 SINGLE CHARGER FOR PR-22+:

Single recharger for the PR-22+ receiver.

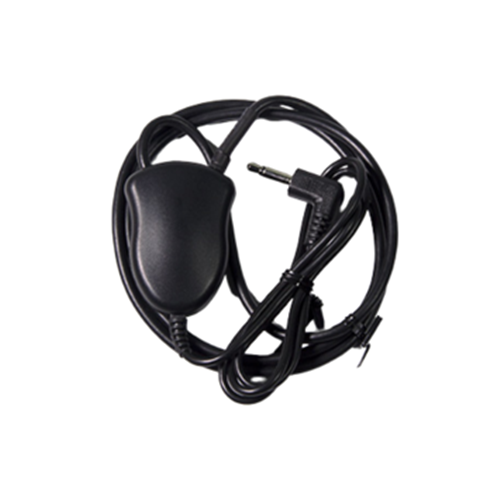

2 X A-4928-0 MONO NECK LOOP:

Inductive audio transmission to hearing aids or CI systems via the T-coil (switch set to »T« or »MT«)

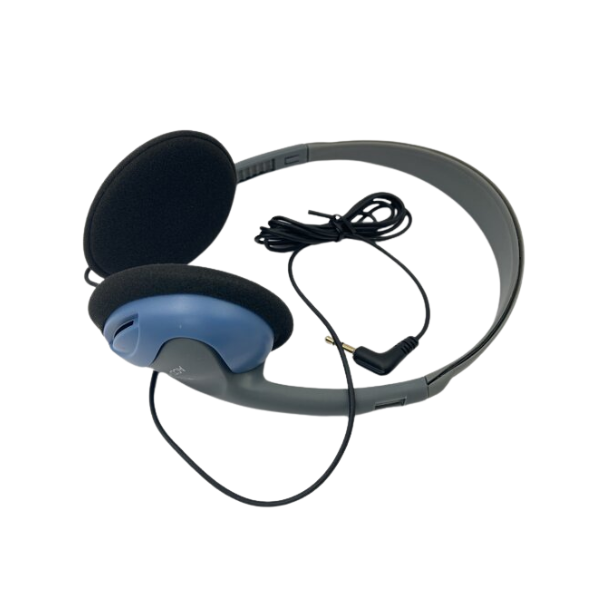

2 X A-4908-0 HEADPHONES:

Lightweight Headphones.

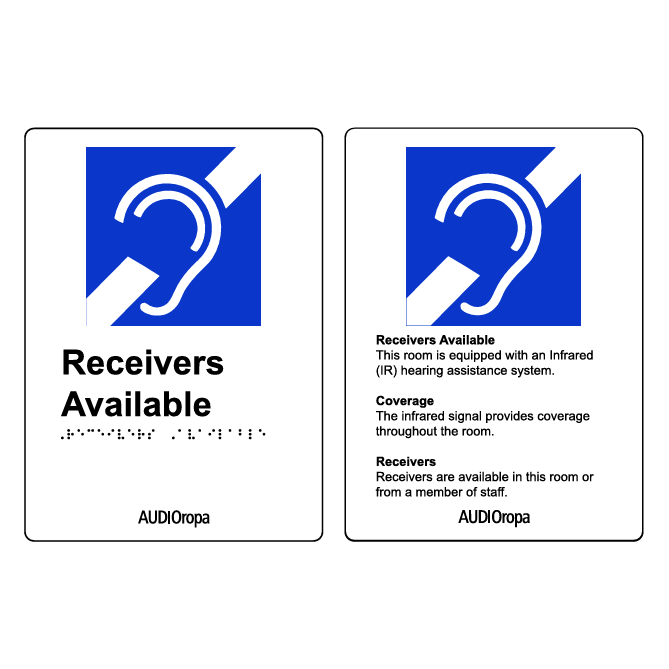

1 X Braille Compliant Sign, Outside Room:

• Size: W180mm x H250mm
• Braille translation: Receivers Available

1 X IR Receiver Compliant Sign, Inside Room:

• Size: W180mm x H250mm
• No Braille.
• Flat UV Printed

Exempt from GST under exemption code R11
