AUDIOropa IR-KIT-2L for Large Spaces

Product Code: HT IR-KIT-2L

Key Features

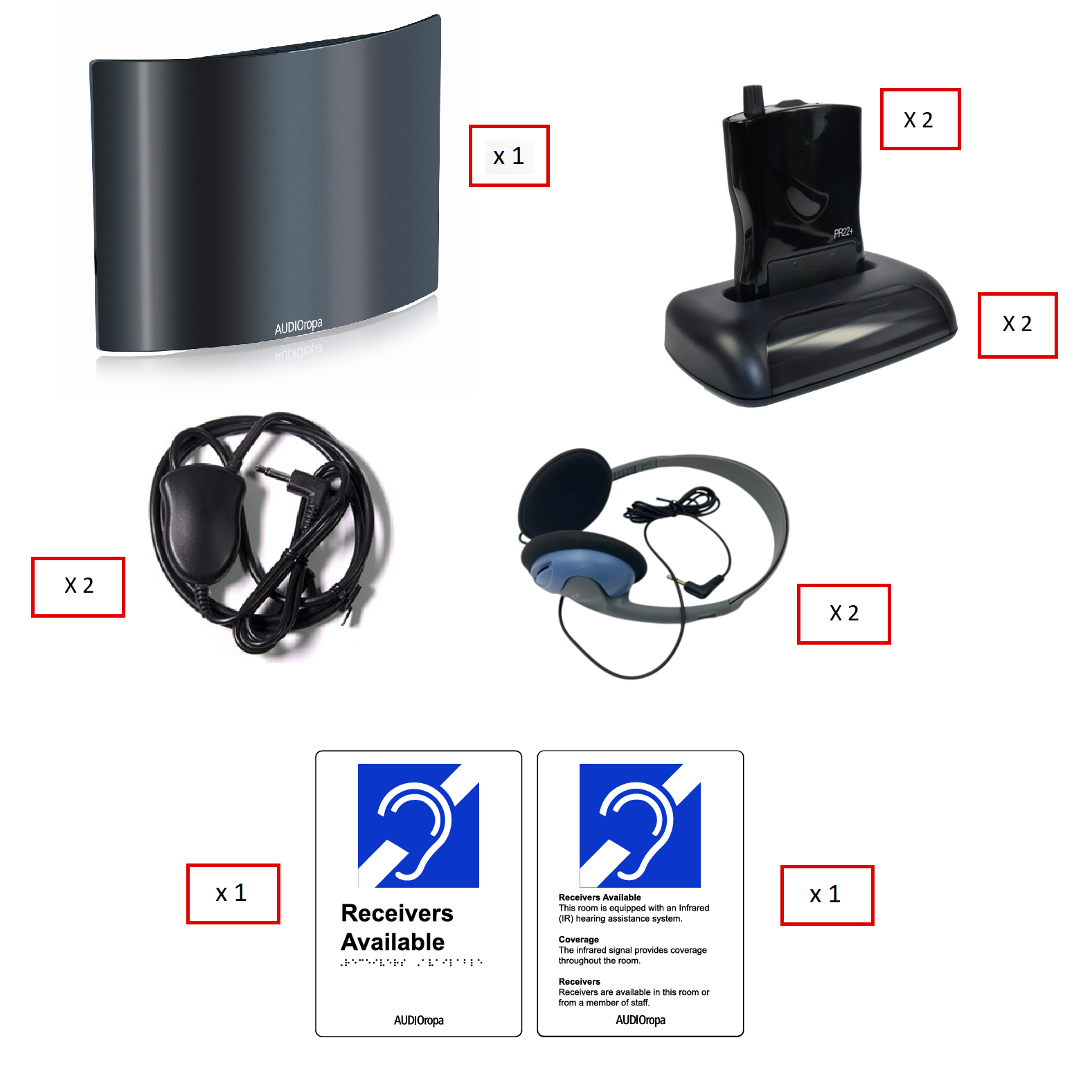

This IR-KIT-2L is for Large spaces. It comprises of the following:

  • 1 x PRO IR-400 IR-Transmitter (HT A-4026-0)
  • 2 x PR-22 Belt Pack IR Receiver (HT A-4037-0)
  • 2 x Single Charger for PR-22 (HT A-4971-0)
  • 2 x Mono Neck Loop (HT A-4928-0)
  • 2 x Headphones (HT A-4908-0)
  • 1 x Braille Compliant Sign, Outside Room (BS-EXT-HA-SIGN)
  • 1 x IR Receiver Compliant Sign, Inside Room (BS-INT-IR-SIGN)
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 1-3 business days
  • Features
  • Overview
  • Technical Specs
  • Documents

AUDIOropa IR-KIT-2L for Large Spaces



COMPONENTS:

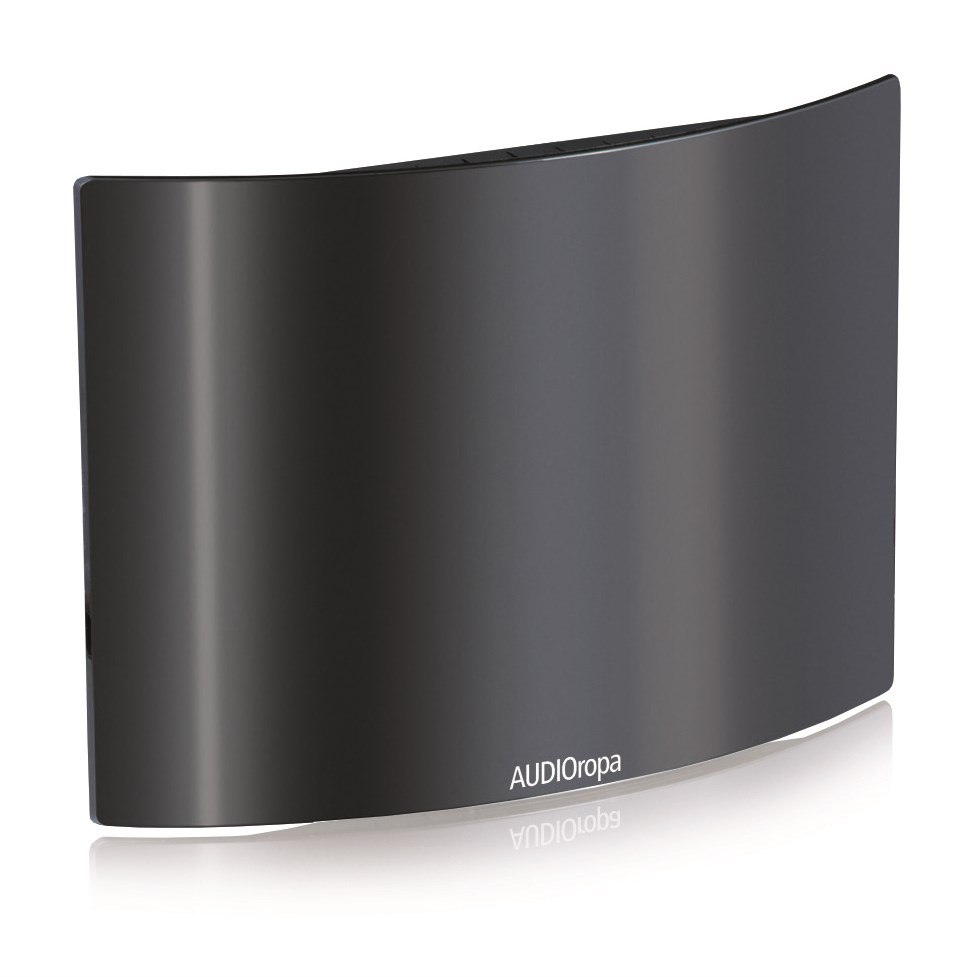

1 X A-4026-0 PRO IR-400 IR-Transmitter:

The two-channel infrared transmitter PRO IR-400 combines the modulator and transmitter in one unit in a single Housing. This design saves costs and can be mounted in a space-saving manner. The system generates a wide exit angle for the infrared signal, which is spread efficiently throughout the supplied areas in the club shape typical for this transmission technique. The transmission of the PRO IR-400 is realised securely at a working bandwidth of 2.3 and 2.8 MHz and without any interfering ambient light. In 1-channel mode, the transmitter supplies areas of up to 900 sqm. Adding additional transmitters of the type PRO IR-400 allows the receiving range to be expanded easily. The delivery includes an attachment set for wall and ceiling mounting. There are also tripods available for free-standing installations. Possible application areas: Cinemas Parallel transfer of different languages (channel selection) Conference and meeting rooms, multimedia rooms Courts and lecture halls Schools, universities Churches.

2 X A-4037-0 PR-22+ BELT PACK IR RECEIVER:

The »PR-22+« features Automatic Gain Control and very high sensitivity for incoming infrared signals. The high maximum output volume makes it an ideal receiver for people with impaired hearing.

The 3.5 mm audio jack allows the connection of a wide range of different audio components, such as:

  • Underchin headphones
  • Light-weight headphones
  • Earphones
  • Neckloops
  • Direct audio links for e.g. CI-systems

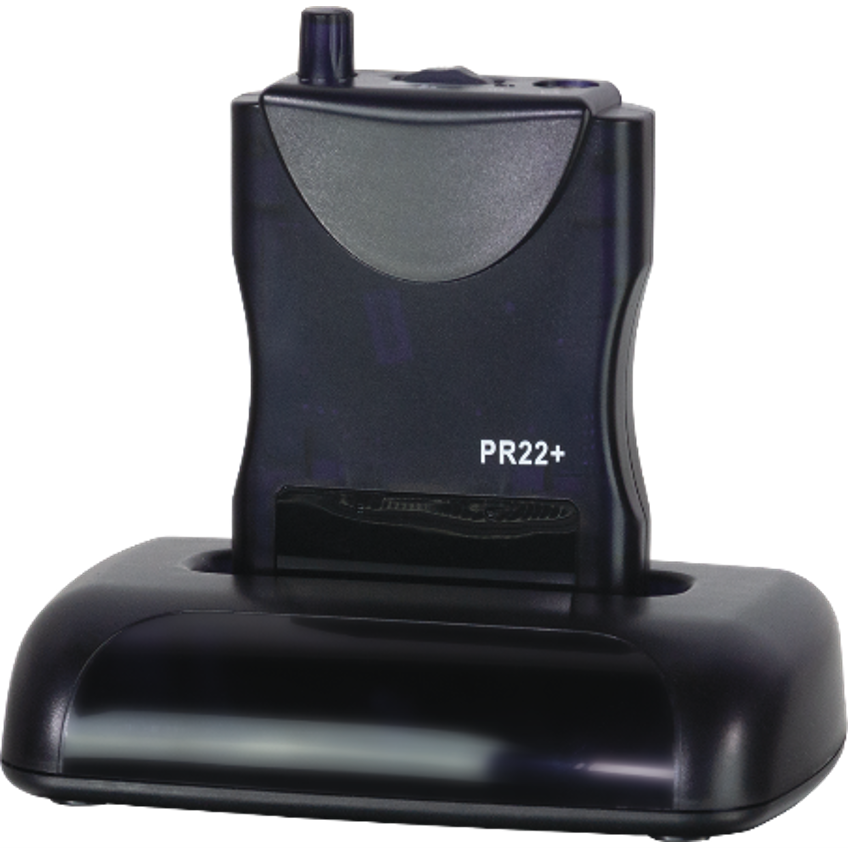

2 X A-4971-0 SINGLE CHARGER FOR PR-22+:

Single recharger for the PR-22+ receiver.

2 X A-4928-0 MONO NECK LOOP:

Inductive audio transmission to hearing aids or CI systems via the T-coil (switch set to »T« or »MT«)

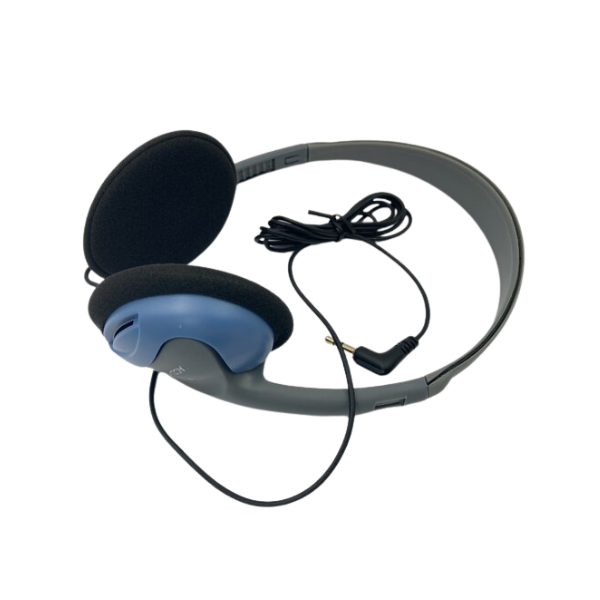

2 X A-4908-0 HEADPHONES:

Lightweight Headphones.

1 X Braille Compliant Sign, Outside Room:

  • Size: W180mm x H250mm
  • Braille translation: Receivers Available

1 X IR Receiver Compliant Sign, Inside Room:

  • Size: W180mm x H250mm
  • No Braille.
  • Flat UV Printed

Exempt from GST under exemption code R11

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

PRO IR-400 IR-Transmitter (HT A-4026-0)

Dimensions (WxHxD) 41.2 x 32.7 x 7.5 cm
Weight 1,100 g
Colour Housing Anthracite / front panel: dark red transparent
Power supply adapter Primary 230 V~ 50-60 Hz, secondary 28 V DC
DC-input Low-voltage connector, 28 V DC, middle is »+«-Pol
Power consumption 700 mA
Carrier frequencies 2.3 MHz (left or A-channel) and
2.8 MHz (right or B-channel)
Input impedance Audio-In: 18 k?
Mic-In: 1.3 k?
Trigger voltage of the Audio-In: 110 mV
Input level display Mic-In: 1.5 mV
Total range at +/- 3 dB Lower limit: 400 mV
Upper limit: 6 V
Audio-Inputs Cinch (RCA) for left and right and/or A and B-channel
Sync-in / Sync-Out Cinch (RCA) for left and right and/or A and B-channel
Microphone input 6.4 mm Stereo-jack plug
Audio display Input level-LEDs, one per channel.
Sender range 30 metre, closed room
Temperature range 0-40 °C
Attachment Wall attachment with conventional hooks,
Tripod attachment via standard screw attachments
Conformities CE, WEEE, RoHS
Compatible receiver RCI-102, IP112


PR-22 Belt Pack IR Receiver (HT A-4037-0)

Frequency range 60 Hz to 12 kHz ± 3 dB
Receiver frequencies 3.8 MHz • 3.3MHz • 2.8 MHz • 2.3 MHz (switchable)
Distortion < 1%
signal-to-noise ratio 60 dB
max. volume 120 dB
Reception angle 360°
Weight ca. 200 g (incl. batteries)
