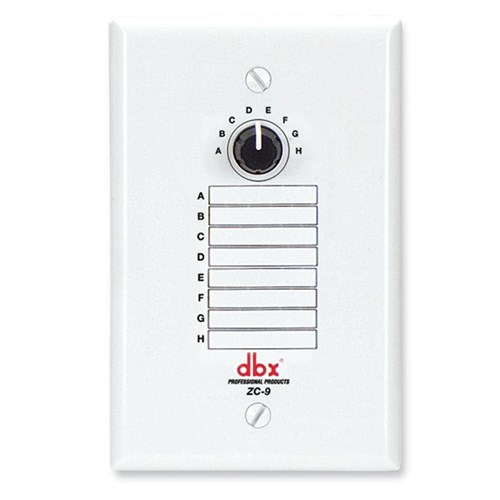

DBX ZC9 Wall Mount 8 Position Zone Controller

Product Code: DBX ZC9V

Key Features
ZC9 Wall Mount 8 Position Zone Controller
$236.75 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted rj-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

All information is subject to change without notice.

The remote device shall provide rotary switch source selection for the ZonePro 1260 and 1261. The remote shall have DIP switch identification and connection to the device being controlled shall be via CAT 5 cable and RJ-45 connectors. The device shall be a ZC-9 remote control.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Connectors (2) RJ-45
Series Wiring Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
Parallel Wiring using ZC-BOB Up to Six Zone Controllers: 1000 ft.
Parallel Wiring Cable CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
Safety Agency Certifications UL 60065, IEC 60065, EN 55013, E60065
