Yealink Windows OPS Gen 2 Module for Meeting Board

Product Code: YL-MCORE-OPS-G2

Key Features
  • Fast performance powered by Intel Core Ultra 5 Processor (built-in NPU 34 TOPS)
  • 16GB Memory and 256GB Storage - More RAM and SSD for multitasking and large files processing
  • Seamless 4K HDMI-IN casting
  • Built-in EDID and CEC support
  • TPM 2.0 ensures enterprise-grade security
$3,122.90 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 3-5 business days
  • Features
  • Overview
  • Technical Specs
  • Documents

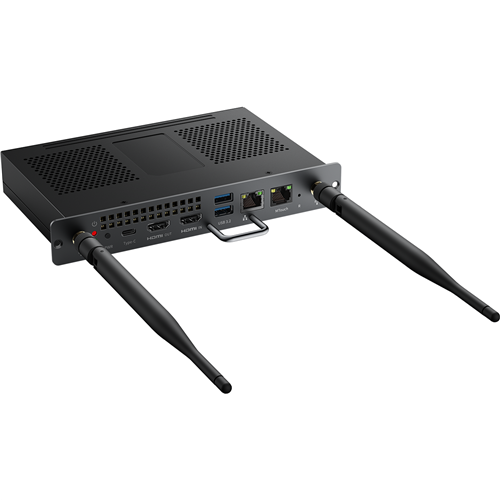

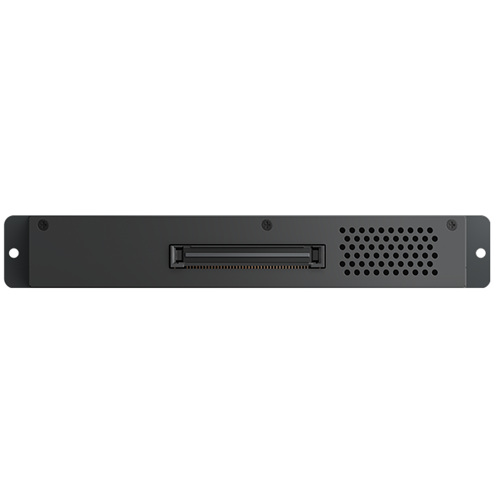

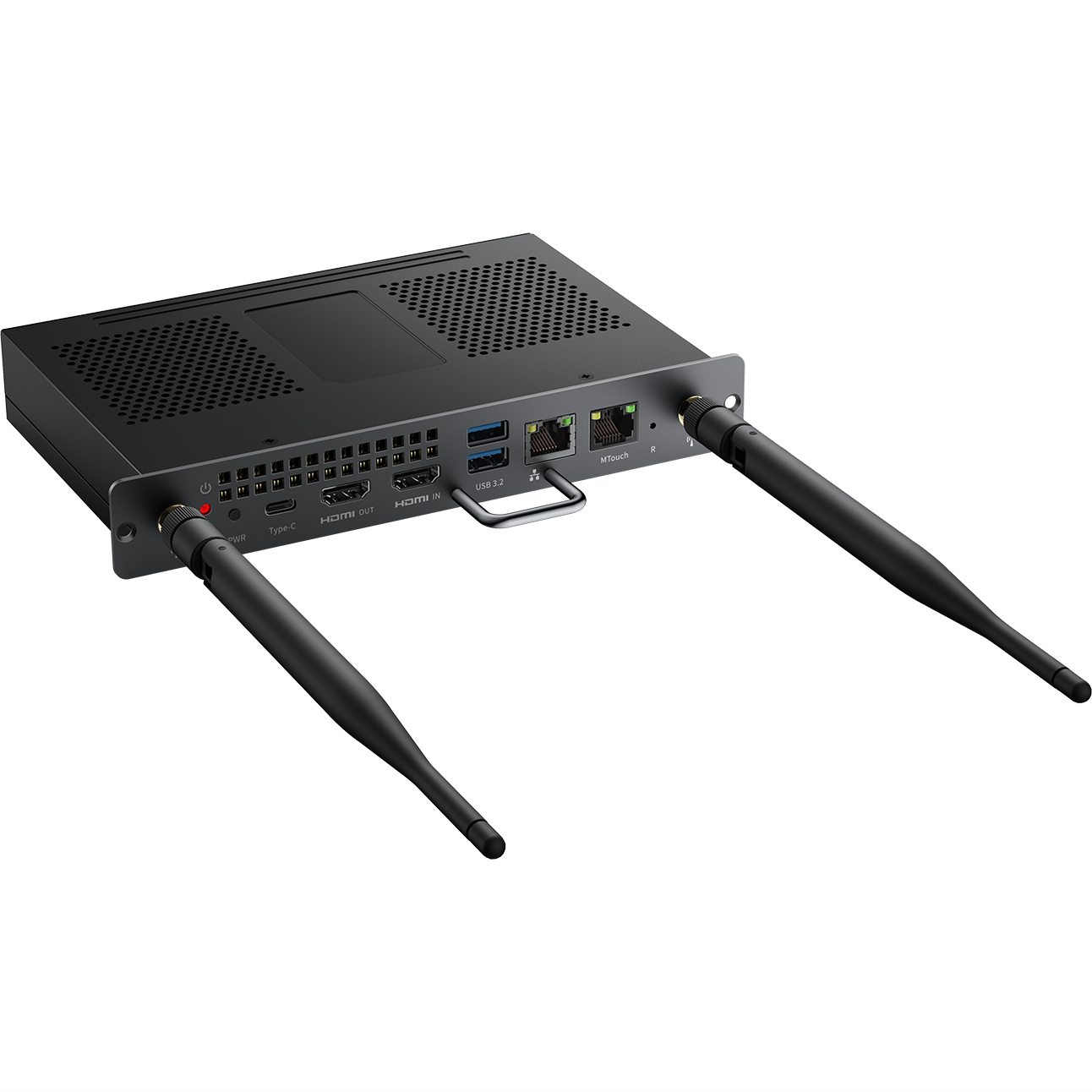

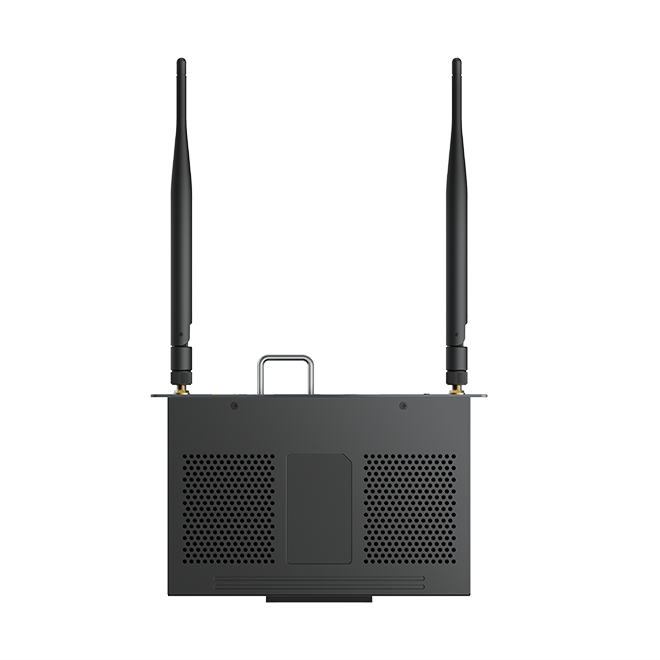

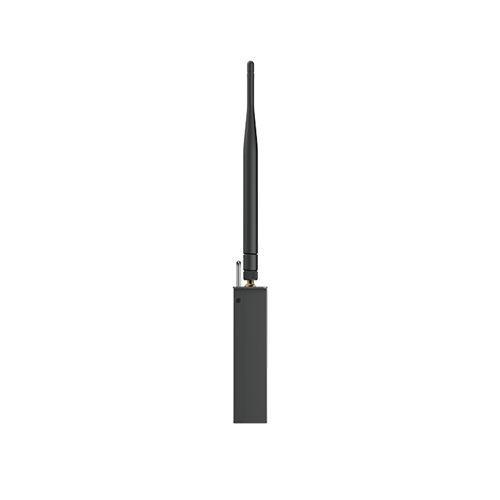

Yealink Windows OPS Gen 2 Module for Meeting Board

Yealink MCore-OPS-G2/MCore-OPS-G2T is the latest modular computing solution designed for Yealink MeetingBoard/MeetingBoard Pro Series. With Intel Core Ultra 5, upgraded memory, and a lightning-fast SSD, it delivers the power you need for smooth multitasking, large-file handling, and audio-video meetings.

The OPS Gen 2 also supports seamless 4K content sharing via HDMI-IN, enabling a more fluid and collaborative experience. With CEC support, the device can automatically wake the connected display, eliminating the need for manual operation.
Designed with an embedded structural form factor, the MCore-OPS-G2/MCore-OPS-G2T requires no external components, significantly simplifying installation and deployment.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

System Preload Windows 11 loT Enterprise x 64 operating system
  Windows 11 loT Enterprise Lisence
System CPU: Intel Ultra5 125H
  Memory: 16GB (2*8GB) DDR5
  Storage: 256GB SSD

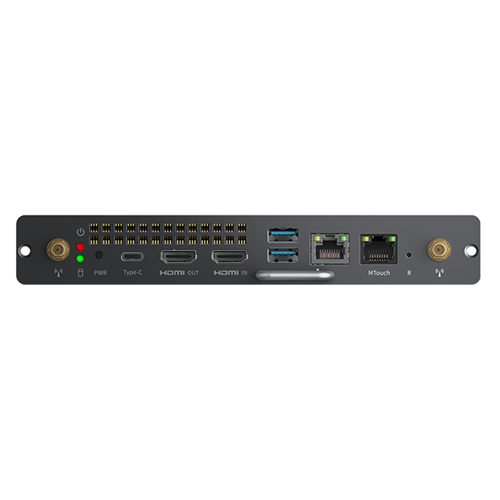

Interface 1 x MTouch port (RJ-45)
  1 x LAN port (RJ-45)
  1 x HDMI out
  1 x HDMI in
  2 x USB 3.0 Type-A port
  1 x USB 3.0 Type-C port (without DP)
  Bluetooth 5.2 AX201
  WLAN: Wi-Fi 6 (IEEE 802.11a/b/g/n/ac/ax)
BIOS Features Support TPM2.0
  Support UEFI Secure Boot
  Support Kernel DMA
  Support CEC
  Support custom boot logo
Physical Features Dimensions 180mm x 119mm x 30mm
  Weight 0.7kg
  Input (V) 12-19V
  Input (A) 4.7-7.5A
  Operating environment humidity 10~90%
  Operating ambient temperature -10~50°C
  Storage temperature -20-60
Package Content MCore-OPS-G2
  2 x antenna
  2 x screw
  1 x screwdriver
  1 x Quick Start Guide
Mechanical Specifications N.W/CTN: 0.70 kg
  G.W/CTN: 0.89kg
  Carton Meas 267mm x 215mm x 65mm
