Yealink 86 inch Commercial Meeting Display (non-touch)

Product Code: YL-MD86

Key Features
  • Screen Size: 86"
  • Resolution: 3840 x 2160
  • Brightness: 500cd/m²
  • Unified installation, the customised structure makes installation easy.
  • Unified coordination, supports digital signage, sleep, and wake-up functions.
  • Unified management, manage MeetingDisplay and MTR device on one platform (YMCS or YDMP).
  • Unified configuration, one-touch console is enough.
$4,764.99 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

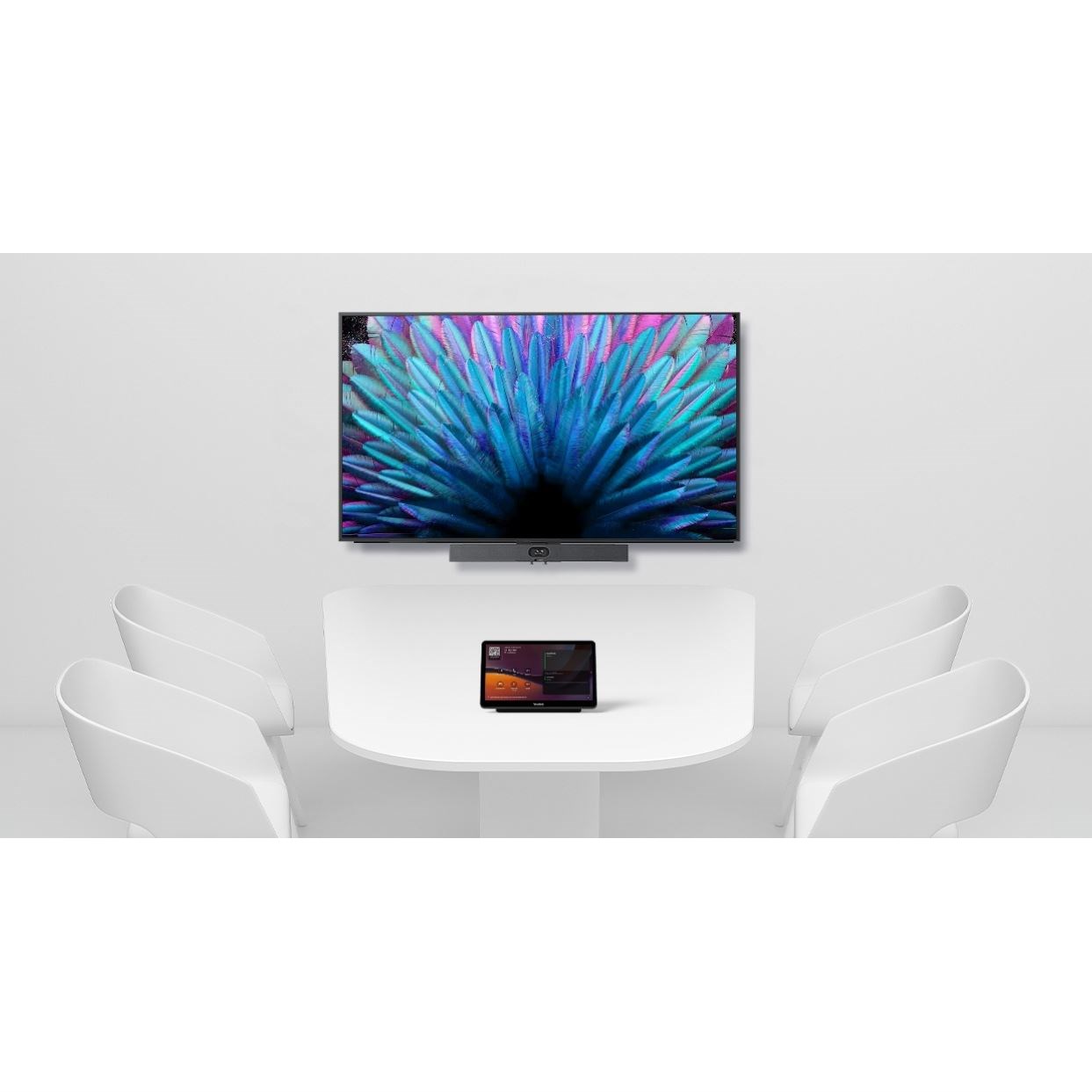

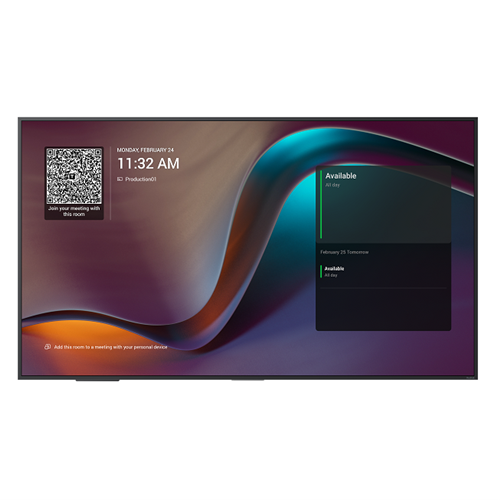

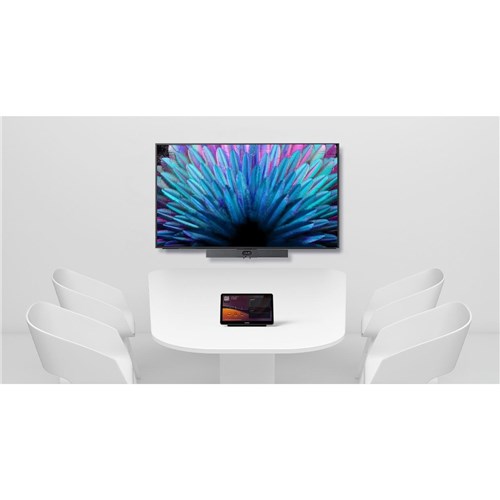

Yealink 86 inch Commercial Meeting Display (non-touch)

The MeetingDisplay is designed explicitly for the Yealink MTR system and can be paired with the MTR bar, UVC Camera, and MCore to provide the complete Yealink Meeting Solution. The MeetingDisplay is available in 65", 75", and 86" sizes, meeting the needs of small, medium, and large meeting rooms. The MeetingDisplay and MTR devices can be deployed, managed, and integrated in a unified manner. You can mount these MTR system devices on the MeetingDisplay without drilling or damaging the walls. The installation process will also be simple and convenient based on our uniquely designed structure. Moreover, the meeting solution, led by the MTR system, can be centrally managed via YMCS/YDMP. Finally, this solution allows MeetingDisplay and MTR devices to work in sync, including sleep/wake-up, power on/off, digital signage mode.

INSTALL LIKE A BREEZE

The customized installation structure makes installation easy, without the trouble of wall drilling. Just screw and hang!

ONE WAY AS ALL COORDINATION

Integrated with Yealink MeetingDisplay, Yealink unified solution supports automatic switching to current input source (regardless of which source you are on, when a Teams call comes in, it will automatically switch to Teams), as well as sleep and wake-up functionality.

Enjoy smooth and seamless meeting device coordination.

ONE TOUCH CONSOLE, GET TO THE HEART OF CONFIGURATION FAST.

One touch console is enough. Configure MTR devices and MeetingDisplay easily, without TV remote control. Effortlessly switch signal inputs and adjust MeetingDisplay’s brightness, contrast, volume, etc.

MANAGEMENT OVER THE AIR

With Yealink Management Cloud Service (YMCS), you can manage both MeetingDisplay and MTR devices from a single platform — no need to switch between systems.

Yealink MeetingDisplay MTR Device Collaboration Features Video:

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Parameter Description
Display • Screen Size
  - MeetingDisplay 65: 65 inch
  - MeetingDisplay 75: 75 inch
  - MeetingDisplay 86: 86 inch
• Display Type: IPS
• Surface Treatment: Anti-glare Coating
• Refresh Rate: 60Hz
• Grayscale Response Time: 8ms
• Color Gamut: 72% NTSC
• Colour Depth: 1.07G (10bit)
• Viewing Angle: 178°(H)/178°(V)
• Contrast Ratio: 1200: 1
• Resolution: 3840 x 2160
• Brightness: 500 cd/
• Haze: 25%
• Operation Time: 7*18h
Audio • Speaker: 12W x 2
Content sharing • Wired screen sharing:
  - HDMI In
• Wireless screen sharing:
  - AirPlay
  - Miracast
  - Wireless Presentation Pod (unavailable in the United States)
Hardware Interfaces • Video: HDMI In 2.0 x 3
• Audio: 3.5mm Stereo Mini Jack (Output)
• USB: USB- A 2.0 x 2, USB- B 2.0 x 1
• LAN: 2x RJ45 10/100/1000M network ports
• Control: RS232 x 1, IP Control Via LAN
• Others: Reset x 1
Wireless • WiFi: Wi-Fi 6
  - 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax
• Bluetooth: Bluetooth 5.1
• IR: Supported
Installation Methods • Wall-mounted Installation
• Floor-stand Installation
Packaging • 1 x MeetingDisplay
• 1 x Cable Pack
  - 1 x 3m AC power cable
  - 1 x 3m CAT5E network cable
  - 1 x Quick Start Guide
  - Cable ties
  - 1 x Remote Controller (IR)
  - 2 x AAA Batteries
  - 1 x MCore bracket (Compatible with MCore 4, MCore 4 is sold separately)
Optional Accessories Mounting Accessories for MeetingDisplay:
• Wall mounting Bracket: MD-WallMount (Suitable for 65", 75", and 86" MeetingDisplay)
• Motorized mobile stand: MB-FS-Lift

Mounting Accessories for MVC Series & MeetingBar:
• Mounting Bracket:
  - MD-AVBracket- S: Compatible with MeetingBar A40, SmartVision 40, MSpeaker Pro
  - MD-AVBracket- L: Compatible with MeetingBar A50
  - MD-PTZBracket: Compatible with UVC86

Casting Accessories:
• Wireless Presentation Pod (unavailable in the United States)
System Overview • Operating System: Android 13
• Storage
  - Memory: 4G
  - Flash: 32G
Power • Power Adapter: 100- 240V~50/60Hz
• Power Consumption
 - MeetingDisplay 65
   - Max: 210W
   - Typical: 183W
   - Off mode: less than 0.5W
MeetingDisplay 75
   - Max: 215W
   - Typical: 186W
   - Off mode: less than 0.5W
MeetingDisplay 86
   - Max: 323W
   - Typical: 268W
   - Off mode: less than 0.5W
Environmental Factors • Operating Temperature: 0~40°C
• Storage Temperature: -20~60°C
• Operating Humidity: 10~95%

Main Unit Dimensions and Weight

Parameter MeetingDisplay 65 MeetingDisplay 75 MeetingDisplay 86
Bare Device Dimensions
(W × D × H)
1456 x 58 x 834mm 1680 x 57 x 959mm 1927 x 61 x 1099mm
Packaging Dimensions
(W × D × H)
1590 x 185 x 925mm 1815 x 185 x 1055mm 2065 x 215 x 1155mm
Net Weight 19.9kg (43.9 lbs) 28.4kg (62.6 lbs) 45.2kg (99.6.2 lbs)
Gross Weight 28.2kg (62.2 lbs) 38.7kg (85.3 lbs) 58.7kg (129.4 lbs)
VESA Hole Specs 400 x 400mm 600 x 400mm 600 x 400mm
VESA Mount Screw M8 M8 M8
Bezel Width 6/6/6/7.5(L/R/U/D) 6/6/6/8.5(L/R/U/D) 9/9/9/9(L/R/U/D)
Quantity 1 unit/box 1 unit/box 1 unit/box

Suggested Bundles



Content Optional Bracket
MeetingDisplay 65/75 + MeetingBar A40 • Wall-mounted Installation:
  - MD-WallMount
  - MD-AVBracket-S
• Mobile Stand Installation:
  - MB-FS-Lift
  - MD-AVBracket-S
MeetingDisplay 65/75 + MVC S40 • Wall-mounted Installation:
  - MD-WallMount
  - MD-AVBracket-S
  - MCore bracket ( Included in the package)
• Mobile Stand Installation:
  - MB-FS-Lift
  - MD-AVBracket-S
  - MCore bracket ( Included in the package)
MeetingDisplay 75/86 + MeetingBar A50 • Wall-mounted Installation:
  - MD-WallMount
  - MD-AVBracket-L
• Mobile Stand Installation:
  - MB-FS-Lift
  - MD-AVBracket-L
MeetingDisplay 75/86 + MVC S50 • Wall-mounted Installation:
  - MD-WallMount
  - MD-AVBracket-L
  - MCore bracket ( Included in the package)
• Mobile Stand Installation:
  - MB-FS-Lift
  - MD-AVBracket-L
  - MCore bracket ( Included in the package)
MeetingDisplay 86 + MVC S80/MVC 860 • Wall-mounted Installation:
  - MD-WallMount
  - MD-PTZBracket
  - MCore bracket ( Included in the package)
• Mobile Stand Installation:
  - MB-FS-Lift
  - MD-PTZBracket
  - MCore bracket ( Included in the package)
MeetingDisplay 86 + MVC S80/MVC 860 + MSpeaker Pro • Wall-mounted Installation:
  - MD-WallMount
  - MD-PTZBracket or MD-AVBracket-S (MeetingDisplay is compatible with only one bracket )
  - MCore bracket ( Included in the package)
• Mobile Stand Installation:
  - MB-FS-Lift
  - MD-PTZBracket or MD-AVBracket-S (MeetingDisplay is compatible with only one bracket )
  - MCore bracket ( Included in the package)
