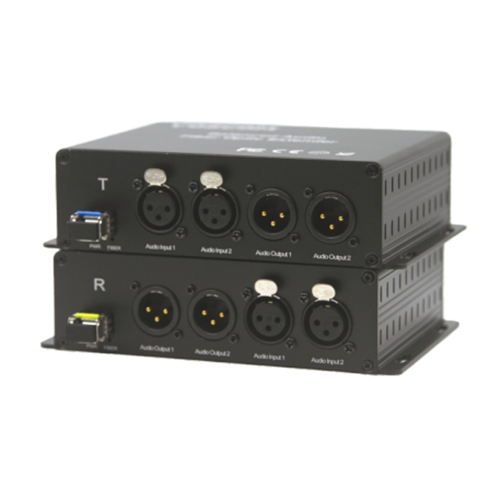

VOSCOM 4-Channel Simplex AES/EBU Digital Audio over Fiber with XLR Connector

Product Code: VOS-4AES-FT/R

Key Features
  • AES/EBU digital Audio over one core fiber with SFP
  • AES/EBU digital Audio with XLR Connector
  • Multi-mode Fiber Support for Distances up to 500m
  • Single-Mode Fiber Support for Distances up to 60 km
  • LED Status Provide Rapid Indication of Operating Parameters
  • No EMI or RFI and no ground loops
  • Stand alone or rack-mount
$2,925.97 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

VOSCOM 4-Channel Simplex AES/EBU Digital Audio over Fiber with XLR Connector

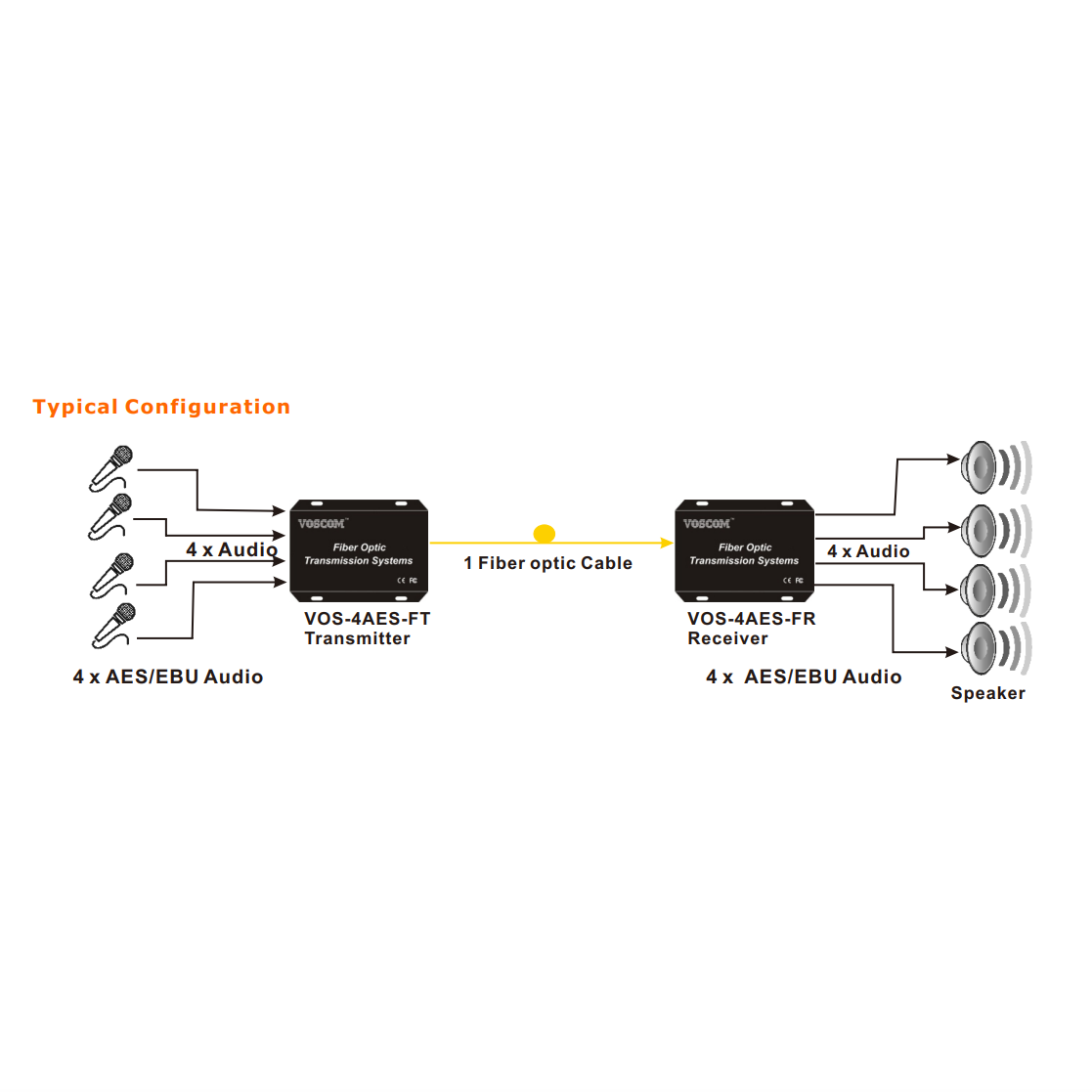

VOS-4AES-FT/R provides for the 4-Channel Simplex AES/EBU Digital Audio. Ideal for Broadcast /Studio
and Professional AV applications.

Price is for a "SET", includes Transmitter and Receiver, and their power supplies. Pricing is for Single-mode 60km or Multi-mode 500m models. This model is common, inquiries for custom models are welcome.

Important Note When Ordering This Product: Please advise us if you require:

  1. The fibre mode to be “Single-Mode” or “Multi-Mode”.

To advise us of the above specifications, kindly type your requirements into the "Order Comments" section at the point of submitting your order.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Audio
Number of Channels: 4-Channel Simplex AES/EBU
Standards: AES3,IEC60958, S/PDIF, EIAJCP1201
Input Level: 0.2 to 10V p-p, 110
Output Level: 2 to 7V p-p, 110
In/output impedance: 110 (Balanced)
Input Sample Rate: 32 to 96 khz
Output Sample Rate: 48 khz
Return Loss: >15db, 100 khz to 6 mhz
Output Jitter: <20ns
Connectors

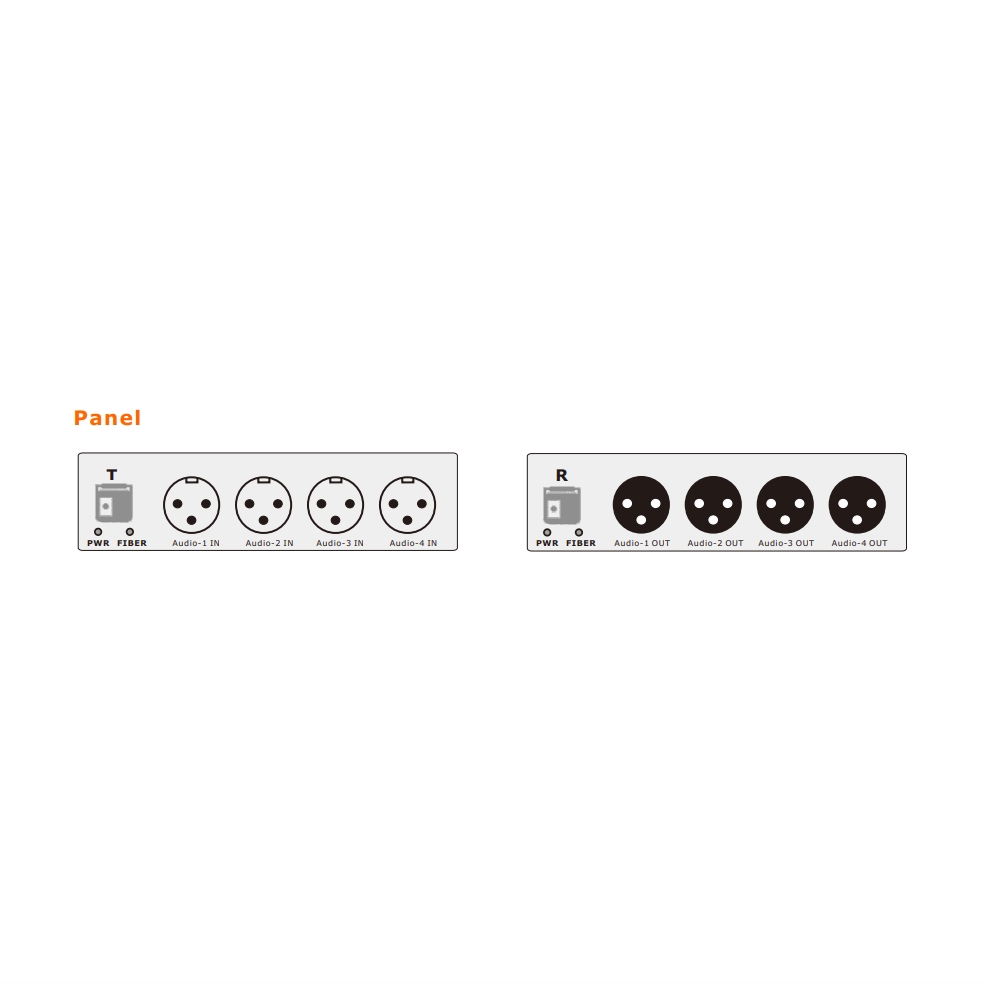

Audio Connector: XLR Male/Female
Optical Connector: LC Connector (SFP)
Stand-Alone Power Screw terminal block
Rack Power AC line cord
Electrical & Mechanical
Input Power Requirements: DC 12V@1A
Power Adapter: AC100V~240V (Built-in)
Power Consumption: <3W
Stand-Alone Dimensions: 167mm x 114mm x 45mm
Shipping Weight: 1.5kg (include TX & RX)
Environmental
Operating Temperature: -45°C ~+75°C
Storage Temperature: -45°C~+85°C
Relative Humidity: 0%~95% (non-condensing)
MTBF: >100,000 hours
