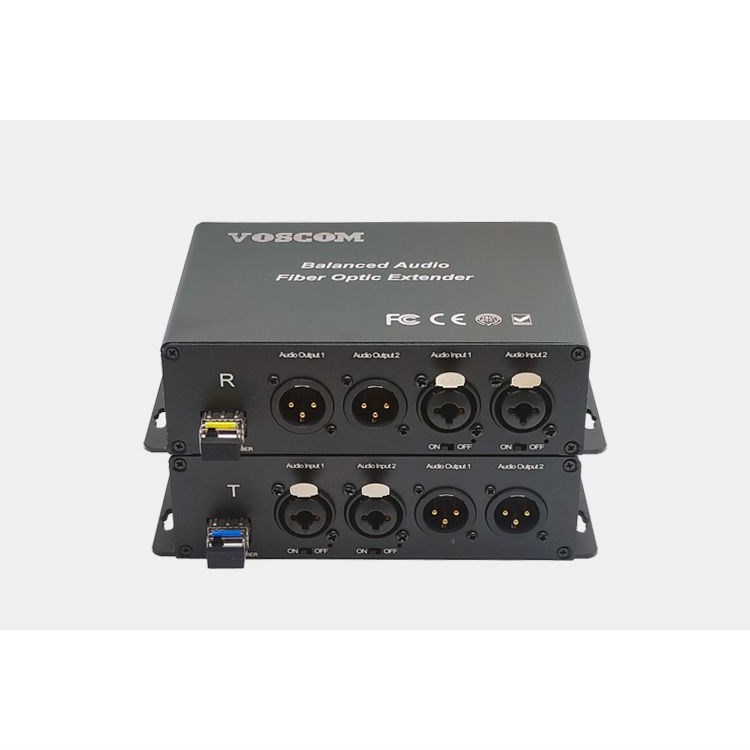

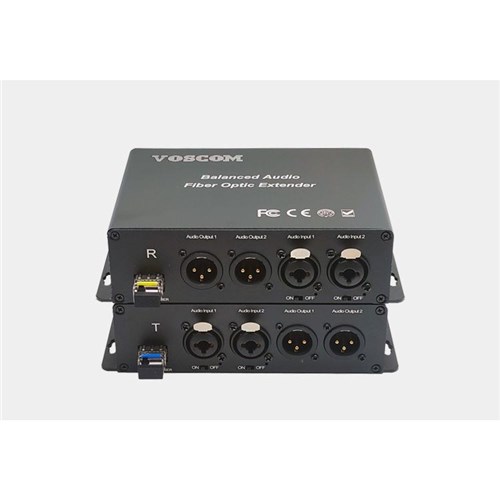

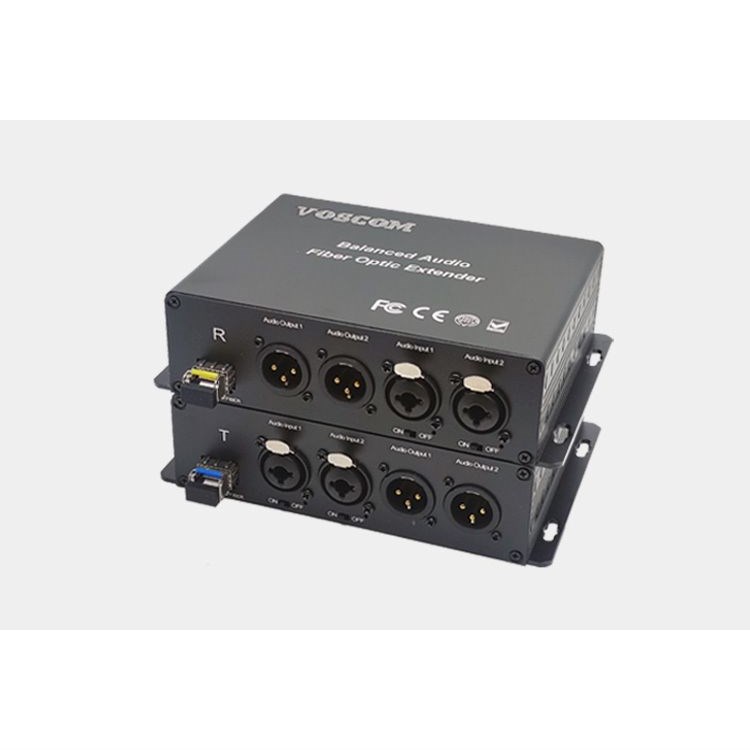

VOSCOM 2-Channel Duplex Analog Balanced Audio over Fiber - XLR-COMBO Connector - Microphone Level

Product Code: VOS-2XLRC-DT/R

Key Features
  • Balanced Audio (Mic or Line Level) over fiber with SFP
  • XLR-Combo supports XLR male plugs or 6.35mm TRS plugs
  • XLR-Combo w/48V Phantom Switch: ON=Mic (48V), OFF=Line
  • Multi-mode Fiber Support for Distances up to 500m
  • Single-Mode Fiber Support for Distances up to 60 km
  • LED Status Provide Rapid Indication of Operating Parameters
  • No EMI or RFI and no ground loops
  • Stand alone or rack-mount
$2,074.78 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

VOSCOM 2-Channel Duplex Analog Balanced Audio over Fiber - XLR-COMBO Connector - Microphone Level

VOSCOM Mic Level Balanced Audio XLR to Fiber Converter, VOS-2XLRC-DT/R provides for the 2-Channel Duplex Balanced Audio over fiber, Mic Lelvel or Line level with XLR-Combo Connector (supports XLR male plugs or 6.35mm TRS plugs), and with 48V Phantom power, switch: ON=Mic level(48V), OFF=Line level. Ideal for Broadcast /Studio, CCTV audio and Professional AV applications.

Price is for a "SET", includes Transmitter and Receiver, and their power supplies. Pricing is for Single-mode 60km or Multi-mode 500m models. This model is common, inquiries for custom models are welcome.

Important Note When Ordering This Product: Please advise us if you require:

  1. The fibre mode to be “Single-Mode” or “Multi-Mode”.

To advise us of the above specifications, kindly type your requirements into the "Order Comments" section at the point of submitting your order.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Audio
Number of Channels: 2-Channel Duplex Audio
Audio input/output Level: +4dBu nominal
Audio Type: Balanced, Mic or Line Level
Audio in/output impedance: 600Ω
Frequency Response: 20Hz ~ 20KHz
Sample Rate: 192KHz
Signal-to-Noise Ratio(SNR): > 90 dB
Distortion: <0.05%
Connectors
Audio Connector: XLR Male/Female, XLR-Combo
Optical Connector: LC Connector (SFP)
Power Connector: DC Power Connector
Electrical & Mechanical
Input Power Requirements: DC 12V@1A
Power Adapter: AC100V~240V
Power Consumption: <3W
Stand-Alone Dimensions: 167mm x 114mm x 45mm
Shipping Weight: 1.5kg (include TX & RX)
Environmental
Operating Temperature: -20°C ~+75°C
Storage Temperature: -40°C~+85°C
Relative Humidity: 0%~95% (non-condensing)
MTBF: >100,000 hours
