VOSCOM HDMI Fiber Converter with 1 Duplex RS232 Data 4K@30Hz (4:4:4) HDMI 1.4

Product Code: VOS-1HDMI-DT/R

Key Features
  • Support uncompressed HDMI 1.4 over Fiber
  • Support 4K 30Hz (4:4:4), Backward compatible
  • Support 1 Duplex RS232 Data for control
  • Dual EDID modes (built-in + manual learning) with button switching
  • Support EDID memory retention after power-off
  • Support Single-mode 10km or Multi-mode 300m
  • Support lossless embedded audio like Dolby TrueHD and TDS-HD
  • LED Status Provide Rapid Indication of Operating Parameters
  • Plug and play
$1,702.37 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

VOSCOM HDMI Fiber Converter with 1 Duplex RS232 Data 4K@30Hz (4:4:4) HDMI 1.4

VOSCOM HDMI to Fiber Converter, VOS-1HDMI-DT/R can transmit your HDMI & RS232 data signals up to 10km over single-mode fiber, or up to 300 m over multi-mode fiber. requires no adjustments, equalization or de-skewing during installation. plug and play connection between Apple TV 4K, Fire TV Stick 4K, nVidia Shield TV, game console, or other professional video.

The HDMI to Fiber Converter support HDMI 1.4, resolution up to 4K 30Hz (4:4:4), Backward compatible. EDID is managed by maintaining continuous EDID communication with the source, ensuring that it powers up properly and maintains video output. For HDMI signals with protected content, the VOS-1HDMI-DT/R continuously authenticates HDCP compliance to support quick and reliable transmission, desinged to solve the installers common problems with long distance HDMI transmission.

Price is for a "SET", includes Transmitter and Receiver, and their power supplies. Pricing is for Single-mode 10km or Multi-mode 300m models. This model is common, inquiries for custom models are welcome.

Important Note When Ordering This Product: Please advise us if you require:

  1. The fibre mode to be “Single-Mode” or “Multi-Mode”.

To advise us of the above specifications, kindly type your requirements into the "Order Comments" section at the point of submitting your order.

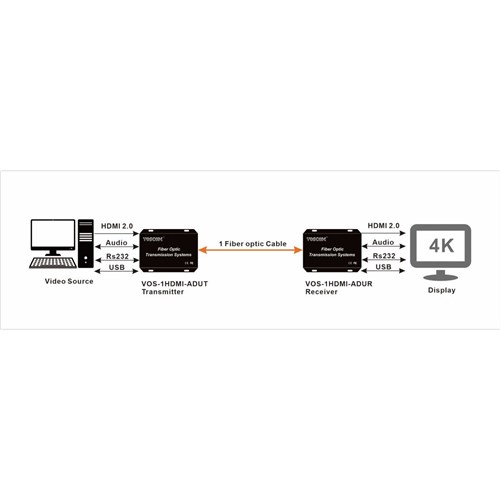

VOS-1HDMI-DT/R System Diagram

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
HDMI
HDMI Version: HDMI 1.4
HDMI Connector: HDMI Female
Data Rate: 10.2Gbps
Compliance: HDCP 2.0
Max Resolution: 4K@30Hz 4096×2160, 3840x2160 (4:4:4 / 4:2:2 / 4:2:0)
  Backward compatible
Data
Number of Channels: 1-Ch Duplex Rs232 Data
Connector: 3-pin Terminal Block
Data Formats: Rs232 Data
Data Rate: DC to 115.2Kbps
Bit Error Rate: < 10E-9
Optical
Connector: LC (SFP)
Fiber Type: Single-mode 10km or Multi-mode 300m
Tx Output Power: >-3dB
Receiver Sensitivity: >-10dB

Electrical & Mechanical
Input Power Requirements: DC12V1A
Power Adapter: AC100V~240V
Power Connector: DC Power Connector
Power Consumption: <3W
Stand-Alone Dimensions: 104mm x 103mm x 28mm
Shipping Weight: 1.0kg (include TX & RX)
Environmental
Operating Temperature: -20°C ~+70°C
Storage Temperature: -40°C~+85°C
Relative Humidity: 0%~95% (non-condensing)
MTBF: >100,000 hours
