Studio Technologies Model 392 Visual Indicator Module

Product Code: ST-M392

Key Features

Model 392 Visual Indicator Unit

The Model 392 is designed for a variety of applications that require a visual status indicator. An array of red/green/blue (RGB) LEDs provide backlighting for a distinctively shaped polycarbonate (plastic) lens assembly. The Model 392 can serve as a broadcast "on-air" light, a room occupied display, or an intercom call signal indicator. It's compatible with the popular Dante® audio-over-Ethernet protocol but offers support for a range of additional applications. Configuration is performed using the Studio Technologies' STcontroller software application. Selected configuration values are stored within the Model 392's non-volatile memory. A range of methods are provided to allow control of the Model 392’s LED array. These include using STcontroller's "virtual" buttons, receiving network-generated UDP commands, and responding to audio signals associated with a Dante digital audio connection.

$1,160.97 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Studio Technologies Model 392 Visual Indicator Module

The Model 392 is a compact, lightweight unit that is primarily intended for fixed applications with mounting in a US-standard 2-gang electrical box. The unit's optical lens conforms to the requirements of a single-opening Decora®-style size, allowing a 2-gang trim plate with centered single Decora opening to be used to complete the "look" of an installation. Standard trim plates are available in a variety of materials and finishes.

Configuration of the Model 392 is performed using the STcontroller software application. Choices include the display activation method, the active and inactive LED colors, the active and inactive LED intensity, and the active action.

Applications

The on and off status of the Model 392's display can be controlled using a "virtual" selection within STcontroller. This is a simple means of controlling the unit, but would require user intervention. While available, in most cases this method will be used only during deployment and testing.

The Model 392 is also directly compatible with the call signals generated by the popular Studio Technologies' Dante-enabled beltpacks and intercom stations. These Dante-connected user devices generate 20 kHz tones whenever their call button is activated. Model 392 applications can also employ the Studio Technologies' intercom interface units to provide compatibility with legacy analog PL intercom systems. Interface units are available that at compatible with Clear-Com® PL as well as the TW-series from RTS®/Bosch®.

In addition to responding to intercom beltpack call requests, the Model 392 can also be used in other Dante-related applications. These include allowing one of the contact-closure inputs on a Studio Technologies' Model 44D Audio Interface to trigger the display on a Model 392. Being Dante networked audio devices, the Model 392 and Model 44D units will function together as long as they are located on the same network, whether the devices are in the same room or on the opposite sides of a university campus. Another application would be to use signals generated by other products, such as the Studio Technologies' Model 214 and Model 215 Announcer's Consoles, to allow the Model 392 to directly serve as a broadcast "on-air" indicator.

Features

The Model 392 incorporates a trapezoidal-prism-shaped polycarbonate lens lit with multiple red/green/blue (RGB) LEDs. The unit is designed for mounting in a 2-gang electrical box with a lens that is compatible with a single Decora opening. Only a single 100BASE-TX with PoE network connection is required. These characteristics makes the unit ideal for deployment in "new build" applications as well as for retrofitting into existing structures. The Model 392's display lens provides a highly visible, wide viewing field. Configuration choices allow selection of the exact color, intensity, and lighting cadence.

Dante Audio-over-Ethernet

Audio and related data is sent to the Model 392 using the Dante audio-over-Ethernet media networking technology. As a Dante-compliant device, the Model 392's Dante receiver (input) audio channel can be assigned (routed) from a source device using the Dante Controller software application. The Model 392 is compatible with Dante digital audio sources that have a sampling rate of 48 kHz and a bit depth of up to 24.

Ethernet Data and PoE

The Model 392 connects to an Ethernet data network using a standard 100 Mb/s twisted-pair Ethernet interface. The physical interconnection is made by way of an RJ45 jack. Two LEDs display the status of the Ethernet connection. The Model 392's operating power is provided by way of the Ethernet interface using the 802.3af Power-over-Ethernet (PoE) standard. This allows fast and efficient interconnection with an associated data network. To support PoE power management, the Model 392's PoE interface reports to the power sourcing equipment (PSE) that it's a class 1 (very low power) device.

Setup, Configuration, and Operation

Setup, configuration, and operation of the Model 392 is simple. An RJ45 jack is used to interconnect the network interface with a standard twisted-pair Ethernet cable associated with a port on a PoE-enabled network switch. This connection provides both network data and power. The Model 392's compact enclosure can be mounted into a standard 2-gang electric box. A stainless steel trim plate with one Decora-style opening is provided with each unit.

All Model 392 features are configured using the STcontroller personal computer software application. An extensive set of parameters allows the unit's operation to be tailored to meet the needs of many applications.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
The above item is non-returnable, unless defective. Please ensure part numbers and descriptions are as required before placing this order. If any confirmation or information is required please contact AV Sales on 1800 00 77 80.

Power Source:
Power-over-Ethernet (PoE): class 1 (very low power, ≤3.84 watts) per IEEE® 802.3af

Network Audio Technology:
Type: Dante audio-over-Ethernet
AES67-2013 Support: yes, selectable on/off
Dante Domain Manager (DDM) Support: yes
Bit Depth: up to 24
Sample Rate: 48 kHz
Pull Up/Down Support: no
Dante Receiver (Input) Channels: 1
Dante Receiver (Input) Nominal Level: –20 dBFS

Network Interface:
Type: 100BASE-TX, Fast Ethernet per IEEE 802.3u (10BASE-T and 1000BASE-T (GigE) not supported)
Power-over-Ethernet (PoE): Per IEEE 802.3af (class 1 (very low power, ≤3.84 watts))
Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s not supported)

Visual Display: qty 11, red/green/blue (RGB) LEDs within lens assembly

Idle Display:
Color: single, adjustable, 20 standard colors and operating system color picker
Intensity: adjustable from among three values and off

Active Fixed-Color Display:
Detection Method: in-band tone
Tone Characteristics: 18-23 kHz, nominal
Minimum Level: –27 dBFS, nominal
Detect Time: 10 milliseconds, minimum
Color: single, adjustable, 20 standard colors and operating system color picker
Intensity: adjustable from among three values
Action: adjustable (continuous, slow flash, fast flash, pulse)

Level Display:
Function: responds to level of PCM audio data within Dante receiver (input) channel
Colors and Level Thresholds:
Green lights at –40 dBFS (range of –40 dBFS to –16 dBFS)
Yellow lights at –15 dBFS (range of –15 dBFS to –6 dBFS)
Red lights at –5 dBFS (range of –5 dBFS to 0 dBFS)
Intensity: increases within level range

Connectors:
Ethernet: RJ45 jack
USB: type A receptacle (used only for updating application firmware)

Configuration: requires Studio Technologies' STcontroller software application

Software Updating: USB flash drive used for updating application firmware; Dante Updater application for updating Dante interface firmware

Environmental:
Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
Storage Temperature: –40 to 70 degrees C (–40 to 158 degrees F)
Humidity: 0 to 95%, non-condensing
Altitude: not characterized

Dimensions (Overall):
3.25 inches wide (8.3 cm)
4.15 inches high (10.5 cm)
3.12 inches deep (7.9 cm)

Weight: 0.40 pounds (0.18 kg)

Mounting: intended for installation in a US-standard 2-gang electrical box. Lens compatible with single Decora® opening.

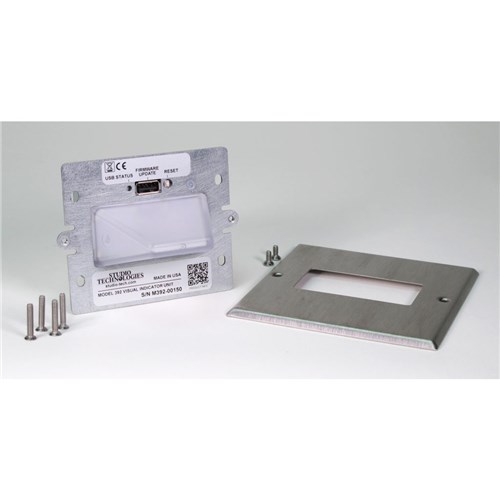

Included Accessory: Leviton® S746-N wall plate, 2-gang, 1-Decora opening, centered, 302 stainless steel material with protective film, 4 5/16-inches wide by 4 1/2-inches tall, two mounting screws (included)

Specifications and information subject to change without notice.
