Studio Technologies Model 209 Talent Console

Product Code: ST-M209

Key Features

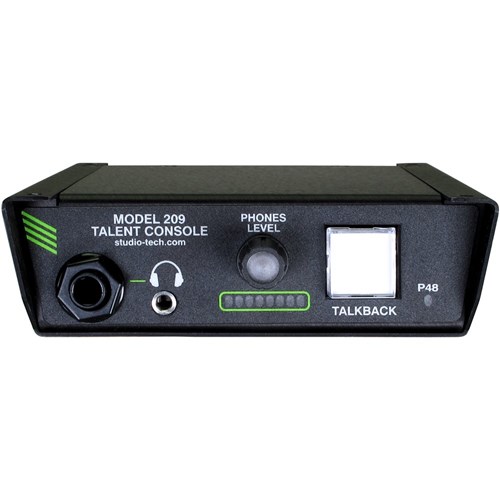

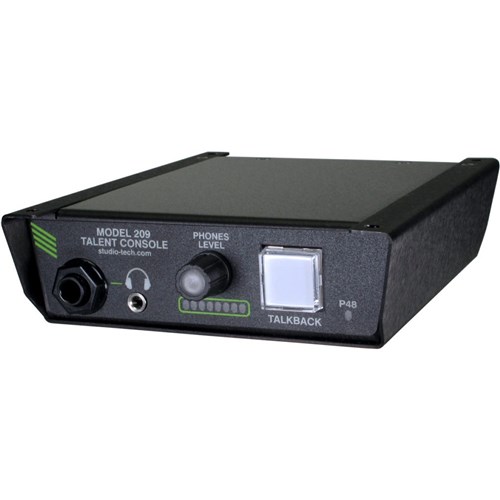

Model 209 Talent Console

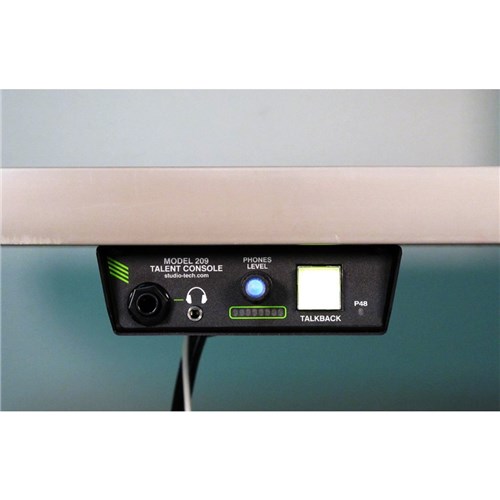

The Model 209 Talent Console offers a unique combination of audio, remote control, and tally-output resources for use in podcast and other specialized audio applications. The unit is housed in a compact enclosure that's intended for mounting under a tabletop, within custom furniture, or as part of an on-air set.

The Model 209 supports Dante audio-over-Ethernet digital media technology as well as AES67 for integration into contemporary applications. In addition, Audinate's Dante Domain Manager software application is supported.

The Model 209 integrates directly into Dante audio-over-Ethernet environments. With just a Power-over-Ethernet (PoE) connection, a microphone, and a pair of headphones or an earpiece, a complete audio "position" can be created.

A host of Model 209 features are configured using the STcontroller personal computer software application.

$2,595.89 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Studio Technologies Model 209 Talent Console

Applications

The Model 209 can provide an "all-Dante" solution for one podcast location. A wide range of other applications can also be supported, including sports and entertainment TV and radio events, streaming broadcasts, corporate and government AV installations, and post-production facilities. The unit's capabilities allow it to be easily integrated into REMI/At-Home applications.

Installation, Configuration, and Operation

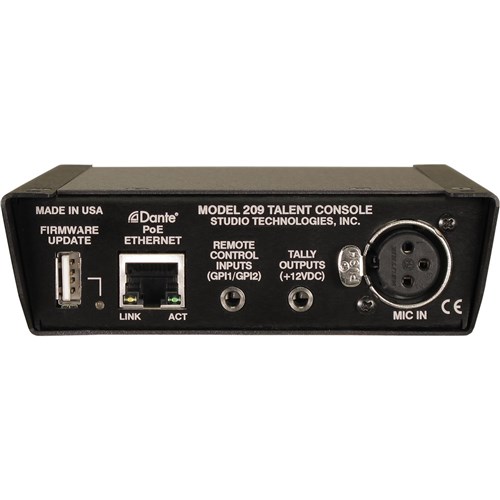

Installation, configuration, and operation of the Model 209 is simple. The lightweight aluminum enclosure mounts under a tabletop or other work surface. On the unit's back panel an RJ45 jack is used to interconnect with a standard Ethernet port that supports Power-over-Ethernet (PoE). This connection provides both Model 209 power and bidirectional Dante digital audio. Also located on the unit's back panel is a 3-pin female XLR connector which allows connection of a dynamic, ribbon, or condenser microphone.

The STcontroller software application is used to configure the Model 209's many operating parameters. This allows the unit's performance to be optimized to meet the needs of specific applications. Separate STcontroller versions are available, free of charge, to support personal computers running the WinOS and MacOS operating systems.

Ethernet Data and PoE

The Model 209 connects to a local area network (LAN) by way of a standard 100 Mb/s twisted-pair Ethernet interface. Two LEDs display the status of the network connection. The Model 209's operating power is provided by way of the Ethernet interface using the 802.3af Power-over-Ethernet (PoE) standard. This allows fast and efficient interconnection with an associated data network. To support PoE power management, the Model 209's PoE interface reports to the power sourcing equipment (PSE) that it's a class 2 (low power) device.

Dante Audio-over-Ethernet

Audio data is sent to and received from the Model 209 using the Dante audio-over-Ethernet media networking technology. As a Dante-compliant device, the Model 209's two Dante transmitter (output) and two Dante receiver (input) audio channels can be routed (subscribed) to other devices using the Dante Controller software application. The Dante transmitter and receiver channels are limited to supporting four Dante flows, two in each direction. The digital audio's bit depth is up to 32 with supported sample rates of 48 and 96 kHz. The Model 209 is compatible with the AES67 interoperability standard. In this mode the two Dante transmitter (output) channels will function in multicast; unicast is not supported. In addition, the unit is compatible with the Dante Domain Manager (DDM) software application.

Configuration Flexibility

The Model 209 can be configured to meet the needs of specific applications and user preferences. All configuration choices are performed using the STcontroller personal computer software application which is available free of charge on the Studio Technologies website. There are no mechanical switch settings or button-press sequences required to configure how the unit functions. Selectable parameters include P48 phantom power on/off, microphone preamplifier gain, headphone and sidetone operation, talkback button operation, level display, remote control inputs, and tally outputs.

Microphone Input and Audio Outputs

The gain of the microphone preamplifier can be selected over a range of 20 to 65 dB in single dB steps. This allows the Model 209 to match the output sensitivity of a range of standalone and headset-associated microphones. A low-noise source of P48 phantom power can be enabled, if required, to support a variety of condenser microphones.

The talkback pushbutton switch, located on the Model 209's front panel, can be configured from among five operating modes. These choices allow the Model 209's audio output operation to be tailored to meet the specific needs of the application.

Headphone Output

The headphone output signal routing can be configured from among three choices. The dual-channel stereo mode is provided for applications where two channels of talent cueing need to be independently sent to the left and right headphone output channels. The dual-channel mono mode allows the two Dante receiver (input) audio channels to be summed (mixed together) and sent to both the left and right headphone output channels. Lastly, a unique single-channel mono mode is provided for applications where a single-channel headphone, earpiece, or earbud is being used. The two Dante audio receiver (input) channels are mixed together and sent only to the left channel of the headphone output. No audio signal is present on the headphone output's right channel.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
The above item is non-returnable, unless defective. Please ensure part numbers and descriptions are as required before placing this order. If any confirmation or information is required please contact AV Sales on 1800 00 77 80.

Power Source:
Power-over-Ethernet (PoE): class 2 (low power, ≤6.49 watts) per IEEE® 802.3af

Network Audio Technology:
Type: Dante audio-over-Ethernet
AES67-2018 Support: yes, selectable on/off
Dante Domain Manager (DDM) Support: yes
Bit Depth: up to 32
Encoding Choices: PCM 16, PCM 24, or PCM 32
Sample Rate: 48 or 96 kHz
Pull-Up/Down Support: no
Dante Transmitter (Output) Channels: 2
Dante Receiver (Input) Channels: 2
Dante Audio Flows: 4; 2 transmitter, 2 receiver
Internal Digital Audio Processing: 32-bit, fixed
Transmitter (Output) and Receiver (Input) Nominal Level: –20 dBFS

Network Interface:
Type: 100BASE-TX, Fast Ethernet per IEEE® 802.3u (10BASE-T and 1000BASE-T (GigE) not supported.)
Power-over-Ethernet (PoE): Per IEEE 802.3af
Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s not supported)

Analog Microphone Input:
Compatibility: dynamic or phantom-powered microphones
Type: balanced, capacitive coupled
Impedance: 3.6 k (3600) ohms, nominal
Gain: 20 to 65 dB in 1-dB steps
Frequency Response: 20 Hz to 22 kHz, 0/–1 dB
Distortion (THD N): <0.0004 %, 1 kHz, –4 dBFS output, 20 dB gain, 22 kHz BW
Dynamic Range: 120 dB, ref 0 dBFS output, 20 dB gain, A-weighted
Phantom Power: P48 per IEC 61938 standard, on/off selectable with status LED

Headphone Output:
Type: dual-channel (stereo)
Compatibility: intended for connection to stereo (dual-channel) or monaural (single-channel) headphones, headsets, or earpieces with nominal impedance of 50 ohms or greater
Maximum Output Voltage: 3.5 Vrms, 1 kHz, with load of 150 ohms
Frequency Response (TOX Filter Disabled): 20 Hz to 20 kHz, 0/–1 dB
Frequency Response (TOX Filter Enabled): 20 Hz to 10 kHz, –3 dB at 10 kHz
Distortion (THD N): <0.002 %
Dynamic Range: >102 dB

Remote Control Inputs: 2
Functions: configurable
Type: active low, 1 mA maximum, input pulled up to 3.3 volts DC by way of 3.4 k (3400) ohm resistor

Tally Outputs: 2
Functions: independently configurable, can follow STcontroller On/Off buttons, Dante main transmitter (output) status, remote control input status, or TOX (tone receive) status
Type: active high, active low, differential – active high, differential – active low, configurable
High Output: 100 mA maximum at 12 volts DC
Low Output: 100 mA sink

TOX (Tone Receive) Tally Activation:
Method: in-band audio tone
Source: Dante receiver (input) Headphone Ch1 or Dante receiver (input) Headphone Ch2, selectable
Tone Characteristics: 18 to 23 kHz, nominal
Minimum Level: –25 dBFS, nominal
Detect Time: 10 milliseconds, minimum

Connectors:
Ethernet: RJ45 jack
Microphone Input: 3-pin female XLR
Headphone Output: 3-conductor (TRS) ¼-inch jack and 3-conductor (TRS) 3.5 mm jack
Remote Control Inputs: 3-conductor (TRS) 3.5 mm jack
Tally Outputs: 3-conductor (TRS) 3.5 mm jack
USB: type A receptacle (used only for updating firmware)

Configuration: Studio Technologies' STcontroller personal computer application

Ethernet Control: UDP commands allow support of remote control and status indication functions

Dimensions (Overall):
4.7 inches (12.0 cm) wide (maximum)
1.4 inches (3.6 cm) high
5.8 inches (14.7 cm) deep
6.0 inches (15.2 cm) deep (overall with knob)

Installation: intended for under-surface mounting in tabletop or similar applications

Weight: 0.55 pounds (0.26 kg)

Specifications subject to change without notice.
