Studio Technologies Model 5304 Intercom Station

Product Code: ST-M5304

Key Features

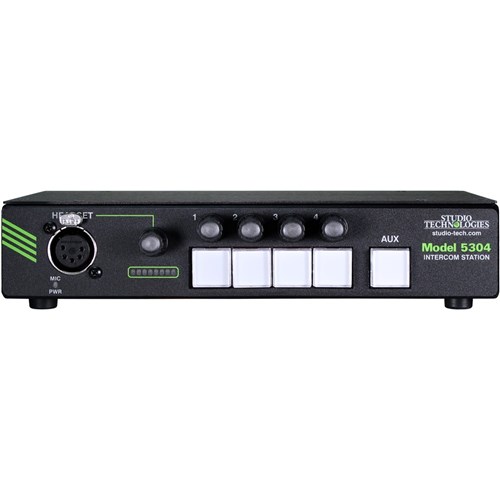

The Model 5304 Intercom Station provides four independent talk and listen channels that are compatible with Dante® audio-over-Ethernet networks. An extensive range of configurable parameters allow the performance to be optimized for numerous intercom applications. The unit is designed to serve as a user station for production and support personnel in applications including on-air television broadcasting, live events, theater, industrial, aerospace, house of worship, and corporate AV. The Model 5304's four channels can be part of a virtual "party-line" intercom system created with other compatible devices. The unit's lightweight aluminum enclosure is intended for desktop or tabletop use. Optional mounting kits allow one or two Model 5304 units to be mounted in one space (1U) of a standard 19-inch rack enclosure.

$2,595.89 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Studio Technologies Model 5304 Intercom Station

The Model 5304 Intercom Station provides four independent talk and listen channels that are compatible with Dante® audio-over-Ethernet networks. An extensive range of configurable parameters allow the performance to be optimized for numerous intercom applications. The unit is designed to serve as a user station for production and support personnel in applications including on-air television broadcasting, live events, theater, industrial, aerospace, house of worship, and corporate AV. The Model 5304's four channels can be part of a virtual "party-line" intercom system created with other compatible devices. The unit's lightweight aluminum enclosure is intended for desktop or tabletop use. Optional mounting kits allow one or two Model 5304 units to be mounted in one space (1U) of a standard 19-inch rack enclosure.

Over a standard IP network, multiple Model 5304 units can become part of a party-line (PL) intercom application with help from an external Dante-enabled audio device such as the Studio Technologies' Model 5421 or Model 5422A Dante Intercom Audio Engine unit. Model 5304 units can also be deployed in conjunction with Dante-compliant matrix interface systems. The Model 5304's range of resources makes it possible to use units locally or as part of a REMI or "At-Home" implementation.

Only a headset and a Power-over-Ethernet (PoE) connection are required for operation. Key user features can be easily configured using the STcontroller software application. Configurable parameters include electret microphone powering, microphone preamplifier gain, talk and auxiliary button operation, call signal support, headphone channel assignment, and remote control inputs. Specific user features include integrated sidetone operation, remote mic kill ("talk off"), LED display intensity, and microphone audio level display. The wide range of capabilities, along with the excellent audio quality provided by the digital audio signal path, offers a unique and highly effective user experience.

The STcontroller software application is used to select the unit's operating parameters. STcontroller is available, free of charge, from the Studio Technologies' website. Versions are available that are compatible with the Windows® and macOS® operating systems. STcontroller is a fast and simple means of configuring, revising, saving, and loading a unit's operating parameters.

Key Features
  • Dante audio-over-Ethernet technology
  • Four independent talk and listen channels
  • Supports dynamic and electret microphones
  • 5-pin female XLR headset connector
  • Uses STcontroller for configuration
  • Two remote control inputs
  • Call send and receive functions
  • Excellent audio quality
  • AES67 and Dante Domain Manager support
  • Power-over-Ethernet (PoE) powered
Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
The above item is non-returnable, unless defective. Please ensure part numbers and descriptions are as required before placing this order. If any confirmation or information is required please contact AV Sales on 1800 00 77 80.

Power Source:
Power-over-Ethernet (PoE): class 2 (low power, ≤6.49 watts) per IEEE® 802.3af

Network Audio Technology:
Type: Dante audio-over-Ethernet
AES67-2018 Support: yes, selectable on/off
Dante Domain Manager (DDM) Support: yes
Bit Depth: up to 24
Sample Rate: 48 kHz
Pull-Up/Down Support: no
Dante Transmitter (Output) Channels: 4
Dante Receiver (Input) Channels: 4
Dante Audio Flows: 4; 2 transmitter, 2 receiver
Transmitter (Output) and Receiver (Input) Nominal Level: –20 dBFS

Audio Channels: 4 talk, 4 listen

Network Interface:
Type: 100BASE-TX, Fast Ethernet per IEEE 802.3u (10BASE-T and 1000BASE-T (GigE) not supported)
Power-over-Ethernet (PoE): Per IEEE 802.3af
Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s not supported)

Microphone Input:
Compatibility: analog dynamic or electret microphones
Type: unbalanced
Electret Microphone Power: 3.3 volts DC via 2 k (2000) ohms series resistance, selectable on/off
Gain: 24, 30, 36, 42, or 48 dB, selectable
Frequency Response: 42 Hz to 18 kHz, –3 dB, nominal
Distortion (THD N): <0.03%, 1 kHz, 24 dB gain
Noise Floor: –94 dBFS (A-weighted)

Compressor:
Threshold: 1.5 dB above nominal level (–18.5 dBFS)
Slope: 2:1

Headphone Output:
Type: 2-channel
Compatibility: intended for connection to stereo (dual-channel) or monaural (single-channel) headsets with nominal impedance of 50 ohms or greater
Maximum Output Voltage: 2.9 Vrms, 1 kHz, with 150 ohm load
Frequency Response: 7 Hz to 9.8 kHz, –3 dB
Distortion (THD N): <0.02%
Dynamic Range: >100 dB

Call Send Function:
Signaling Method: 20 kHz, within selected Dante transmitter (output) audio channels
Send Level: –20 dBFS

Call Receive Function:
Sources: Dante receiver (input) channels 1-4
Signaling Method: 20 kHz /-800 Hz, nominal, within audio channels
Receive Level: –27 dBFS minimum
Detect Time: 10 milliseconds, minimum

Remote Control Inputs: 2
Function: configurable, can mimic the action of any of the five button functions
Type: active low, 1 mA maximum, inputs pulled up to 3.3 volts DC via 3.4 k (3400) ohm resistors

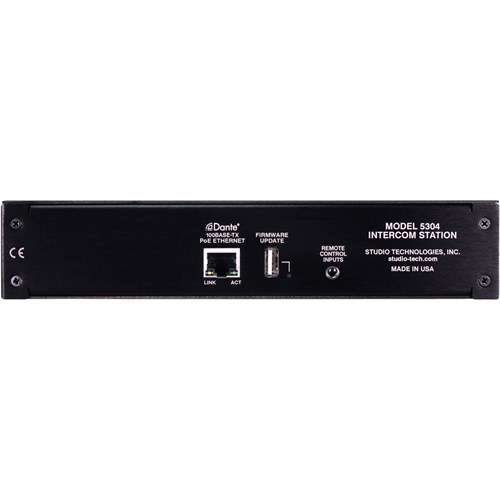

Connectors:
Headset: 5-pin female XLR
Ethernet: RJ45 jack
Remote Control Inputs: 3-conductor (TRS) 3.5 mm jack
USB: type A receptacle (used only for updating application firmware)

Configuration: requires Studio Technologies' STcontroller software application

Software Updating: USB flash drive used for updating application firmware; Dante Updater application for updating Dante interface firmware

Environmental:
Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
Storage Temperature: –40 to 70 degrees C (–40 to 158 degrees F)
Humidity: 0 to 95%, non-condensing
Altitude: not characterized

Dimensions (Overall):
8.70 inches wide (22.1 cm)
1.72 inches high (4.4 cm)
4.45 inches deep (11.3 cm)

Weight: 0.95 pounds (0.42 kg); rack-mounting installation kits add approximately 0.2 pounds (0.09 kg)

Deployment: intended for tabletop applications. Four optional mounting kits are also available:
RMBK-10 allows one unit to be mounted in a panel cutout or on a flat surface
RMBK-11 allows one unit to be mounted in the left- or right-side of one space (1U) of a standard 19-inch rack
RMBK-12 allows two units to be mounted in one space (1U) of a standard 19-inch rack
RMBK-13 allows one unit to be mounted in the center of one space (1U) of a standard 19-inch rack
