Studio Technologies Model 373A Intercom Beltpack

Studio Technologies Model 373A Intercom Beltpack

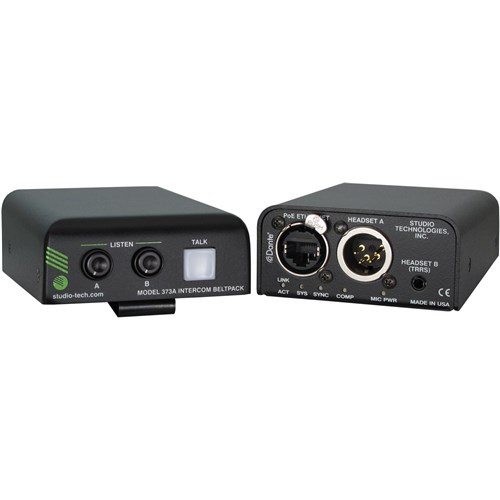

The Model 373A Intercom Beltpack is a highly compact user-worn device that combines a single channel of talk and two channels of listen. The unit begins with the features offered by traditional analog party-line (PL) intercom user devices and adds a range of new capabilities, along with the advanced performance and flexibility that Dante^® audio-over-Ethernet provides. Over a standard IP network, multiple Model 373A and other compatible Studio Technologies' beltpack units can be used to create party-line intercom applications with help from an external Dante-enabled audio matrix such as the Studio Technologies' Model 5422 Dante Intercom Audio Engine. Alternately, Model 373A units can be used "point-to-point" or interfaced with Dante-compatible matrix intercom systems.

Having one talk and two listen channels may seem unconventional. But it can be ideal for many "real-world" applications. Often an intercom user is primarily listening and non-verbally responding to requests made by producers, directors, or stage managers. Typically, the Model 373A will be configured to be part of one talk-and-listen party-line intercom channel. During the time that an event is taking place the listen function will serve a much more important role; the talk function will rarely be utilized. However, the second listen channel will often be important. Typically, it will be designated as a program-listen or "show audio" channel. The two listen channels, along with the ability to receive and display call signals, allow the Model 373A to very effectively support production personnel in a compact and cost-effective manner.

Only a single Power-over-Ethernet (PoE) connection is required for operation. Key user features can be easily configured using the STcontroller software application. Configurable parameters include electret microphone powering, microphone preamplifier gain, talk button operation, and headphone channel assignment. Features include integrated sidetone, call signal receive display, and remote mic kill ("talk off"). The range of capabilities, along with the excellent audio quality provided by the digital audio signal path, offers a unique and powerful user experience.

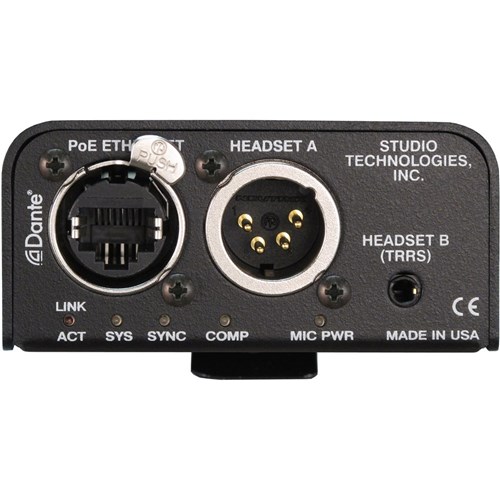

Setting up and configuring a Model 373A is simple. An etherCON^® RJ45 receptacle is used to interconnect with a standard twisted-pair Ethernet port associated with a local-area network (LAN). This connection provides both power and bidirectional digital audio. The Model 373A is compatible with both broadcast and "gaming" headsets.

A broadcast or intercom-style monaural headset with a dynamic or electret (DC-powered) microphone can be interfaced with the Model 373A using a 4-pin XLR connector. The Model 373A also directly supports connection of stereo earbuds or gaming headsets that utilize a 3.5 mm 4-conductor TRRS plug. These moderately priced devices, commonly associated with mobile phones or personal computers, are often of high-quality and may be preferred for some applications. With the Model 373A's moderate price and ability to support a broad range of headset devices the overall cost of deploying an intercom system can often meet budget goals.

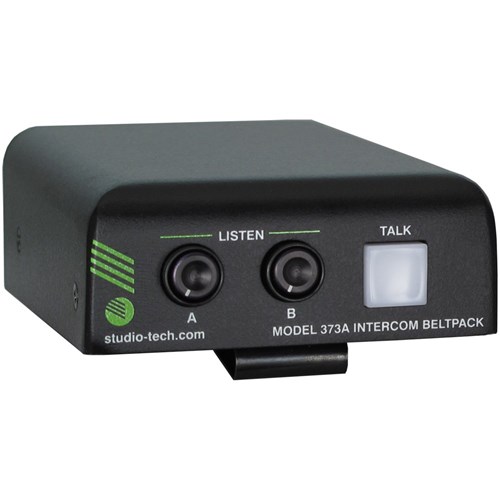

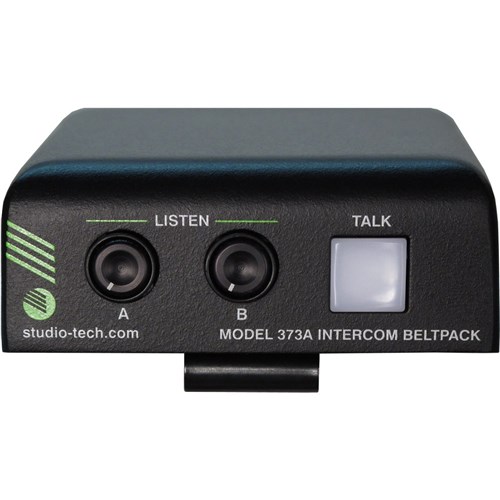

The STcontroller software application is used to select the unit's operating parameters. The talk pushbutton switch can be configured for optimal operation. Two "push-in/push-out" ("pop-out") rotary controls make it easy to set and maintain the desired headphone output level. The Model 373A's compact enclosure is made from an aluminum alloy which offers both light weight and ruggedness. A stainless steel belt clip, located on the back of the unit, allows direct attachment to a user's clothing.

The audio quality of the Model 373A is excellent, with low distortion, low noise, and high headroom. Careful circuit design and rugged components ensure long, reliable operation. A wide range of applications can be supported, including education and commercial theater, sports and entertainment TV and radio events, streaming broadcasts, corporate and government AV, post production, and aerospace.

For further information please refer to the attached data sheet.
