Studio Technologies Model 232 Announcers Console

Product Code: ST-M232

Key Features
  • Compact unit supports one on-air location
  • Dante audio-over-Ethernet technology
  • Microphone preamplifier with selectable gain and P48 power
  • One main and two talkback output channels
  • User-controlled headphone mixing
  • Superior audio quality
  • Redundant Dante with two GigE interfaces
  • PoE and 12 Vdc powering
  • Extensive feature configuration using STcontroller application
  • Supports REMI/At-Home applications
$3,900.37 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

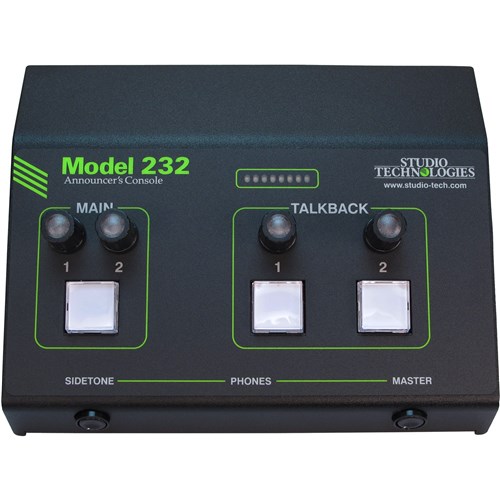

Studio Technologies Model 232 Announcers Console

The Model 232 Announcer's Console provides a combination of high-performance audio with an extensive set of user features and configurable resources. The unit is intended for use in demanding broadcast sports, eSports, live event, entertainment, and streaming broadcast applications. With a few simple connections the Model 232 can provide one on-air talent with all the resources they need to support a wide range of applications. The compact, rugged steel enclosure is intended for tabletop use, small enough for use "court-side" or in a crowded booth, yet flexible enough for remote production deployment. The Model 232 supports Dante® audio-over-Ethernet digital media technology with AES67 compatibility for integration into contemporary applications.

The Model 232 can integrate directly into both Dante audio-over-Ethernet and standard analog audio environments. With just a Power-over-Ethernet (PoE) Gigabit network connection, a microphone, and a pair of headphones a complete broadcast on-air position can be created. With the addition of a second Ethernet connection Redundant Dante can be supported. And by using the Model 232's analog microphone output a connection to a microphone-level input on an associated remote I/O interface or audio console can be supported.

With a total of four Dante audio inputs and an integrated sidetone function, users can easily create their desired headphone audio mix. They'll enjoy clear and "click-free" monaural or stereo audio that can only help their on-air performance. Two independent Dante talkback channels allow users to communicate with a variety of support personnel. Among the range of operating capabilities includes the ability to create talent cue (IFB) channels. This was specifically included for REMI/At-Home applications. Provision has been made such that a technician can "customize" the Model 232's hardware. Option kits, purchased separately, can be added to support functions such as multi-pin headset connectors, up to four remote control inputs, and a low-voltage DC tally output.

The Model 232 was designed to meet two main goals: supporting great audio quality and providing an extensive set of configurable features. Using the latest in audio integrated circuits and advanced 32-bit audio processing, the unit's audio performance should meet or exceed that of any audio console, standalone microphone preamplifier, remote I/O interface, or outboard A/D or D/A converter. With over 40 years of professional audio experience, Studio Technologies takes audio performance seriously! And while providing excellent measured specifications is a "must," a device also has to "sound" good before we feel its design is complete.

The amount of flexibility provided in the Model 232 allows it to meet the needs of virtually all on-air announcer applications. And using the Studio Technologies STcontroller software application makes "customizing" the operation of a Model 232 fast and simple. The unit's ability to handle both day-to-day and specialized situations makes it a unique product in the market. For example, each pushbutton switch and rotary encoder can be independently configured with multiple choices that range from simple to quite advanced.

For more details please see the attached datasheet.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
The above item is non-returnable, unless defective. Please ensure part numbers and descriptions are as required before placing this order. If any confirmation or information is required please contact AV Sales on 1800 00 77 80.
Network Audio Technology:
Type Dante audio-over-Ethernet
AES67-2013 Support yes, selectable on/off
Dante Domain Manager (DDM) Support yes
Ethernet Interface Configuration Switched or Redundant
Bit Depth 16, 24, or 32
Sample Rate 48 or 96 kHz (no pull-up/down supported)
Dante Receiver (Input) Channels 5
Dante Transmitter (Output) Channels 6
Dante Audio Flows 32; 16 transmitter, 16 receiver
Internal Digital Audio Processing 32-bit, fixed
Input-to-Output Audio Processing Latency <200 uSec
Nominal Dante Receiver (Input) and Transmitter (Output) Level –20 dBFS
Network Interfaces: 2, Primary-PoE and Secondary
Type 1000BASE-T (Gigabit Ethernet ("GigE")) per IEEE® 802.3ab (10 and 100 Mb/s not supported)
Power-over-Ethernet (PoE) per IEEE 802.3af (applicable to Model 232's Primary-PoE network connection only)
Analog Microphone Input
Compatibility dynamic or phantom-powered microphones
Type balanced, capacitive coupled
Impedance 3.6 k ohms, nominal
Gain 20 to 65 dB in 1-dB steps
Frequency Response 20 Hz to 22 kHz, 0/–1 dB
Distortion (THD N) <0.0004%, 1 kHz, –4 dBFS output, 20 dB gain, 22 kHz BW
Dynamic Range 120 dB, ref 0 dBFS output, 20 dB gain, A-weighted
Phantom Power P48 per IEC 61938 standard, on/off selectable with status LED
Analog Microphone Output:
Type passive via two 200 ohm resistors from microphone input (will pass phantom power in either direction)
Muting solid-state relay contacts, 60 dB attenuation @ 1 kHz
Headphone Output:
Type analog 2-channel (stereo)
Compatibility stereo (dual-channel) or monaural (single-channel) headphones, headsets, or earpieces with nominal impedance of 50 ohms or greater
Maximum Output Voltage 3.0 Vrms, 1 kHz, 150 ohm load
Frequency Response 20 Hz to 20 kHz, 0/–1 dB
Dynamic Range >102 dB, A-weighted
Distortion (THD N) <0.025%, measured at 1 kHz, 0 dBu output
Talkback Input Low-Pass Filter (LPF)
Function active only when specific talkback channel has tone detect function enabled
Type digital, 8-pole Butterworth (48 dB/octave)
Cutoff –3 dB at 12 kHz
18 kHz and 20 kHz Tone Outputs
Type sine wave
Level –20 dBFS
Frequency Accuracy <10 ppm
Distortion <0.0001%
Tone Detect Function
Receive Frequency ≥15 kHz nominal to upper end of frequency response, within audio channel
Receive Level –27 dBFS minimum
Send Frequency 20 kHz
Send Level –20 dBFS
IFB (Dims Main Audio) Function
Activation in-band tone detection per Tone Detect function
Attenuation (Dim) 15 dB, fixed
Call Light Function
Activation in-band tone detection per Tone Detect function
Remote Control Inputs: 4
Function configurable, can mimic the action of the main and talkback button functions
Type active low, 1 mA maximum, input pulled up to 3.3 volts DC via 3.4 k ohm resistors
Limitation Remote Control Input 2 shares hardware pin with Tally Output (only one function can be configured at a time)
Tally Output
Functions follows the status of the main output
Type active high, 3.3 volts DC in series with 130 ohm resistor (25 mA maximum)
Limitation tally output shares hardware pin with Remote Control Input 2 (only one function can be configured at a time)

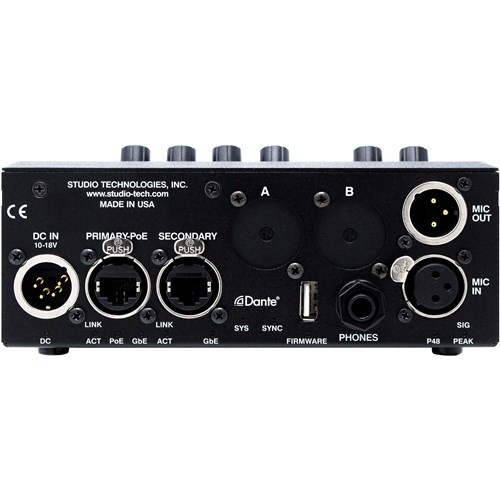

Connectors
Analog Microphone Input 3-pin female XLR
Analog Microphone Output 3-pin male XLR
Headphone Output 3-conductor ¼-inch jack
Ethernet 2, Neutrik NE8FBH etherCON RJ45 receptacles
DC Input 4-pin male XLR (pin 1 negative, pin 4 positive)
USB type A receptacle (used only for updating firmware)
Remote Control Inputs / Tally Output 2, 3-pin headers located on the main circuit board
Headphone Output 3-pin header located on the main circuit board
DC Output 3-pin header located on the main circuit board
Analog Microphone Input 3-pin header located on the analog circuit board
Power Sources
Power-over-Ethernet (PoE) class 3 (mid power, ≤12.95 watts) per IEEE 802.3af
DC Input 10 to 18 volts DC, 0.55 A maximum at 12 volts DC (can be powered by optional PS-DC-02)
Environmental
Operating Temperature 0 to 50 degrees C
Storage Temperature –30 to 70 degrees C
Humidity 25 to 95%, non-condensing
Altitude not characterized
Dimensions (Overall):
Width 16.5cm
Height 7.4cm
Depth 12.5cm
Weight 0.95kg
