Studio Technologies Live-Link Jr Camera End Unit One ST Optical Connector

Product Code: ST-LLJR-CA-106

Key Features
  • 3G/HD/SD-SDI support
  • All audio transported embedded into SDI paths
  • Integrated party-line and 4-wire intercom support
  • Excellent audio quality throughout
  • Full SMPTE®-standards compatibility
  • Standard optical, video, and audio connectors
  • Hybrid fiber/copper powering of Camera End unit
$14,386.45 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Studio Technologies Live-Link Jr Camera End Unit One ST Optical Connector

Live-Link™ Jr. is a highly-integrated camera extender system optimized for electronic news gathering (ENG), uplink truck, and specialized broadcast applications. The portable camera end unit and rack-mounted truck end unit provide all the resources needed for a single-camera live event. Linked using just two single-mode optical fibers, the same excellent performance will be supplied whether the units are hundreds of feet or miles apart. Notable features of the Live-Link Jr. system include performance flexibility, support for high-quality on-air (program), talent cue (IFB) and intercom audio, and ease of use.

Camera End Unit Details

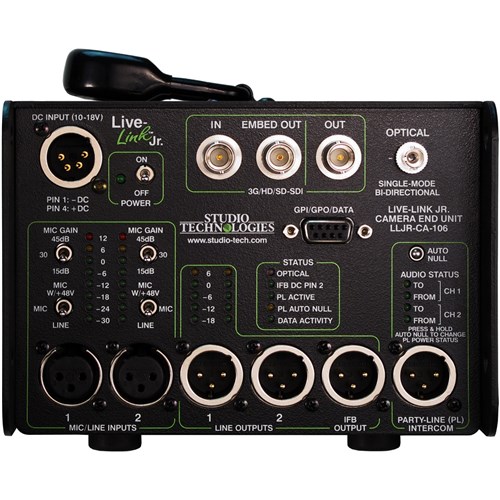

The Live-Link Jr. camera end unit is housed in a lightweight aluminum enclosure with an integrated carry handle. Weighing less than 6 pounds (2.8 kg) it is well suited for portable applications. As with the truck end unit, all camera end unit input and output signals are interfaced using standard connectors. A combination of status LEDs and multi-LED audio level meters are provided for operating and troubleshooting assistance.

The camera end unit can be powered from up to three sources. A 4-pin XLR connector on the front panel allows an external 12 Vdc nominal power supply to be connected. A battery mount, located on the back of the unit's cover, allows use of a broadcast-standard rechargeable battery. The standard battery mount is compatible with batteries from Anton/Bauer®. As an option a V-Mount battery mount can be provided.

A third input power option is available to Live-Link Jr. camera end units that are ordered with the Neutrik opticalCON DUO connector. As previously mentioned, this connector supports two fibers along with four metallic conductors. The camera end unit can be powered by a 10-50 Vdc source that enters the unit via the metallic conductors. This method allows the use of hybrid fiber/copper fiber assemblies to both interconnect the SDI signals and provide power to the camera end unit. A variety of fiber/copper cable assemblies can be used. For example, one major vendor offers a tactical-grade cable that has two 16 AWG copper conductors along with two single-mode fibers. Using a readily-available 48 Vdc power source located at the truck end, along with this type of "TAC" cable, an interconnect distance of over 1000 feet (308 meters) is possible. It's also possible to use SMPTE Hybrid type of fiber/copper cable assemblies to link the truck end unit to the camera end unit. The only caveat would be the need for opticalCON DUO connectors to mate with the camera end unit.

It is important to note that while the Live-Link Jr. camera end unit can be powered by hybrid fiber/copper cable assemblies the unit will not provide a power source for connected cameras or related equipment. The camera end unit is not capable of converting the 10-50 Vdc input into 12 Vdc for use by other equipment.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
The above item is non-returnable, unless defective. Please ensure part numbers and descriptions are as required before placing this order. If any confirmation or information is required please contact AV Sales on 1800 00 77 80.

Mic/Line Inputs:
Input Sensitivity: selectable for line level (unity gain), 15, 30 or 45 dB gain
Maximum Input Level: 24 dBu
Type: electronically balanced
Impedance: approximately 3 k ohms
CMRR: 61 dB at 60 Hz
Phantom Power: 48 Vdc, meets IEC 61938 P48 standard

Line Outputs:
Type: analog, electronically balanced, capacitor-coupled, intended to drive balanced loads of 2 k ohms or greater
Source Impedance: 200 ohms
Nominal Level: 4 dBu
Maximum Level: 24 dBu into 10 k ohms

IFB Output:
Type: 2-channel unbalanced (common on pin 1, DC modulated with channel 1 audio on pin 2, channel 2 audio on pin 3)
Nominal Audio Level: –10 dBu
Maximum Audio Output Level:
Pin 2: 9 dBu
Pin 3: 10 dBu
DC Output Voltage (Pin 2 to Pin 1): 28 V
DC Output Current (Pin 2 to Pin 1): 120 mA maximum
Impedance (Pin 2 to Pin 1; Pin 3 to Pin 1): 200 ohms

Party-Line Intercom Interface:
Type: 2-channel party-line, unbalanced (common on pin 1, DC modulated with channel 1 audio on pin 2, channel 2 audio on pin 3)
Compatibility: dual-channel intercom system such as from RTS®
Nominal Audio Level: –10 dBu
Maximum Audio Output Level:
Pin 2: 9 dBu
Pin 3: 10 dBu
Output Voltage (Pin 2 to Pin 1): 28 Vdc
Output Current (Pin 2 to Pin 1): 180 mA maximum; requires ≥10 mA current draw for detection of connected device
Impedance (Pin 2 to Pin 1; Pin 3 to Pin 1): 200 ohms

Connectors for Electrical Signals:
SDI: BNC, 3G-SDI optimized, gold plating on center pin, per IEC 61169-8 Annex A
Mic/Line Inputs: 3-pin female XLR
Line, IFB, and Party-Line Intercom Outputs: 3-pin male XLR
Data, GPI/GPO, and Auxiliary DC: 9-pin female D-subminiature (DE-9F)
DC Input: 4-pin male XLR

Optical Connector(s): Neutrik® opticalCON® DUO or two ST (UPC polish), factory installed, selectable at time of order

Battery Mounting: Anton/Bauer® QRC-Gold®, standard; IDX® P-V2 V-Mount, optional

Power Inputs:
DC (4-Pin XLR) and Battery Mount: 10 to 18 Vdc, 1.9 A maximum at 12 V; 2.1 A at 10 V
Copper/Optical Hybrid via opticalCON DUO: 10-50 Vdc, 0.54 A maximum with 48 V source and 500 feet (154 meters) of two 16 gauge copper conductors, maximum length TBD

Dimensions (Overall):
6.5 inches wide (16.5 cm)
5.7 inches high (14.5. cm)
10.4 inches deep (26.4 cm)

Weight: 5.5 pounds (2.5 kg)

Specifications subject to change without notice.
