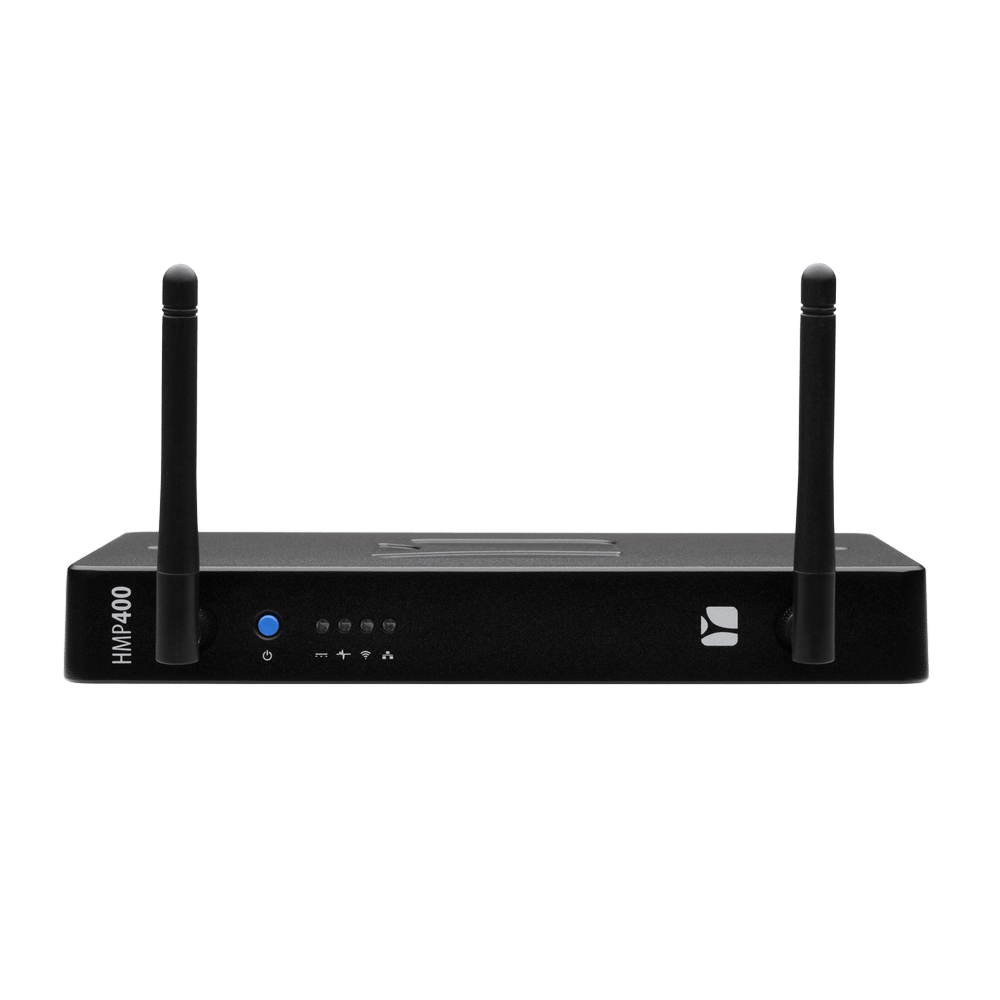

SpinetiX HMP400W Hyper Media Player

Product Code: SX-HW-HMP400W

Key Features
  • Commercial grade, long-life 24/7 use
  • Fanless, compact, and flat-form factor design
  • Dust-resistant, designed for extreme conditions
  • Passive heat dissipation
  • Intel® Atom® processor
  • DSOS™ by SpinetiX – signage operating system
  • 4K | 60 fps ready
  • Power over Ethernet (PoE)
  • Built in WiFi
$1,648.63 inc GST
(Each)
Increase value Decrease value
Qty Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

HMP400W is your reliable partner for any signage scenario

At the core of our new digital signage solution lies the HMP400W Hyper Media Player. Engineered in Switzerland and made in Germany, HMP400W is the powerful hardware you need capable of reliably delivering 4K at 60 fps 24/7 for a decade.



Optional Accessories:

  • SX-HW-PD30 – USB-C Power Supply when PoE cannot be used
  • SX-HW-UCAUD – USB-C Audio Cable
  • SX-HW-UCSER – USB-C Serial Cable
Warranty
We offer a 3 year warranty on this product from its date of purchase. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.
CONNECTORS & PORTS
Video HDMI 2.0 (lockable) or DisplayPort 1.2 (USB-C lockable alternate mode)
USB port 3x USB 3.0 (USB-C lockable)
Network Ethernet 1GbE, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3az. HMP400W (with Wifi module): Wi-Fi IEEE 802.11a/b/g/n/ac Wave 2, 2x2 MIMO
Power supply Power over Ethernet (PoE /802.3at) or USB-C lockable Power Delivery 2.0, 27W (min 3A@9V)
SIZE & WEIGHT
Size Width: 7.87” / 200mm, height: 1.1” / 28mm, depth: 4.72” / 120mm
Weight 660g
DSOSTM (DIGITAL SIGNAGE OPERATING SYSTEM)
DSOSTM Lightweight, high performance and secured operating system designed for digital signage enabling by default SpinetiX ARYATM cloud based service
OS security Cryptographically signed firmware packages, local access to OS restricted, Intel™ Boot Guard protection, Secure Boot
Optional features Different optional modes of use to be activated on top of the built-in SpinetiX ARYATM cloud based service
PLAYER ENGINE
Layer composition Multi-layer, multi-video decoding capability, video with alpha channel
Fonts Built-in fonts (including Noto fonts) for any language. In addition, any custom font can be uploaded. Support for TrueType/OpenType fonts.
Content languages HTML5, SVG Tiny 1.2
Scripting language JavaScript (ECMAScript 5), jSignage™, WebStorage, XMLHttpRequest
External data access AJAX, REST, HTTP/HTTPS with custom certificates or SRP, raw TCP/UDP
FORMATS
Images JPEG, PNG, GIF, SVG, PDF/A
Media file formats MPG, MP4, M4V, M4A, MOV, MKV, MKA, WMV, WMA, AVI, VOB, TS, MP3, AAC, WAV
Video codecs Multi-video decoding capable, 4K60p 4:4:4, H.264/MPEG-4 AVC: HP@L5.2, H.265/MPEG-H HEVC: L5.1, MPEG-2: MP@HL, MPEG-4: ASP, WM9/VC-1: AP@L3, MJPEG
Audio codecs AAC-LC, HE-AAC, MPEG Layer I, II, III (MP3), WMAv2, AC3
Data feeds Built-in RSS app, Elementi feeds RSS, ICS, CSV, TXT, custom feeds (XML, JSON, JavaScript)
DISPLAYS
Video DCI 4K (4,096×2,160), 4K UHD (3840x2160), 1080p (1920x1080), custom resolutions, etc
Audio Stereo digital (HDMI/DisplayPort), USB-C analog line-level & digital (accessory required)
Control HDMI-CEC, DisplayPort, serial port (advanced protocols, accessory required)
NETWORK
Protocols DHCP, static IP, Zeroconf, IPv4, IPv6, NTP, Bonjour, SSDP, SNMPv1/v2c, HTTP/HTTPS, TLS-SRP, user root certificates, WebDAV, FTP, RTSP, RTP/UDP, 802.1x
Remote configuration Built-in HTTP server, HTTPS with user root certificates, RPC
STORAGE
Internal 16 GB solid state, eMMC 5.1 Industrial MLC NAND with OS in higher endurance SLC area
External Hard disk (via USB 3.0)
CHARACTERISTICS
Processor Intel™ Atom x5-E3930
Memory RAM: 4 GB
Power consumption Typical 9W; MAX: 14W
Operating temperature Ambient range 32 - 104ºF / 0 - 40ºC, Relative humidity 10-90% non-condensing
Real-time clock (RTC) Accuracy ±1 min./month, backup by supercap (30 days)
Usage All components rated for 24/7 - 10 years operation, fanless sealed design. Engineered in Switzerland and made in Germany
