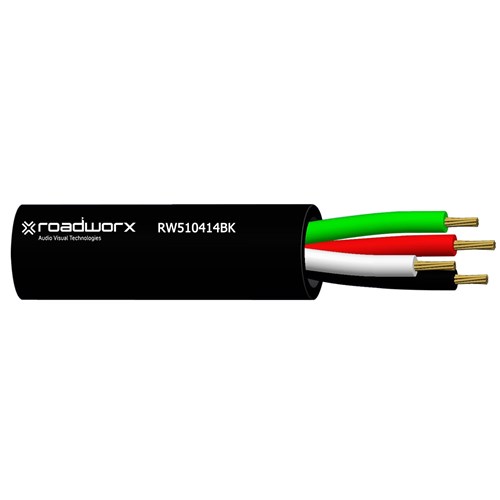

Roadworx RW510414 Speaker Cable 4 Conductor 14AWG Black 100m Reels

Product Code: RW510414BK100

Key Features

Speaker Cable, 4 conductor, 14AWG, Black 100m Reels

$7.46 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Description

50/0.25BC x 4C + PVC Insulation + PVC Sheath Φ9.6mm

Applicable Standards

N/A

Suitable Applications

Used to make the electrical connection between loudspeakers and audio amplifiers.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

Conductor 50/0.25+/-0.006BC
Insulation Core: 4
Material: PVC
Colour: Black, Red, Green, White
Min. Thickness 0.51mm / Nom. Thickness ≥0.60mm / Nom. O.D 3.3+/-0.1mm
Sheath

Material : PVC / Colour: Black

Min. Thickness 0.64mm / Nom. Thickness 0.80mm / Nom. O.D 9.6+/-0.2mm

Spark Voltage : 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 7.98 ohm/km 20°C
Voltage Test: Core to Core

1000V a.c/1min

Physical Properties

Insulation Elongation ≥100%
Insulation Tensile Strength ≥13 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2
Flame Test: VW-1

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 687N
Min. Bend Radius (install) 96mm
Approximate Mass 16.4kg/100m
Sheath Printing

ROADWORX RW510414 Speaker Cable, 4 conductor,
14AWG (meter marking)
