Soundcraft Vi5000 Compact Digital Mixing Console

Product Code: SCF 5057292

Key Features
  • The latest Vistonics™ & FaderGlow™ interface
  • Up to 128 inputs and 32 mono/stereo busses
  • Enhanced audio processing with 96kHz sample rate option
  • Powerful new features including BSS DPR901ii™ Dynamic EQ
  • STUDER vMIX automatic microphone mixing built-in

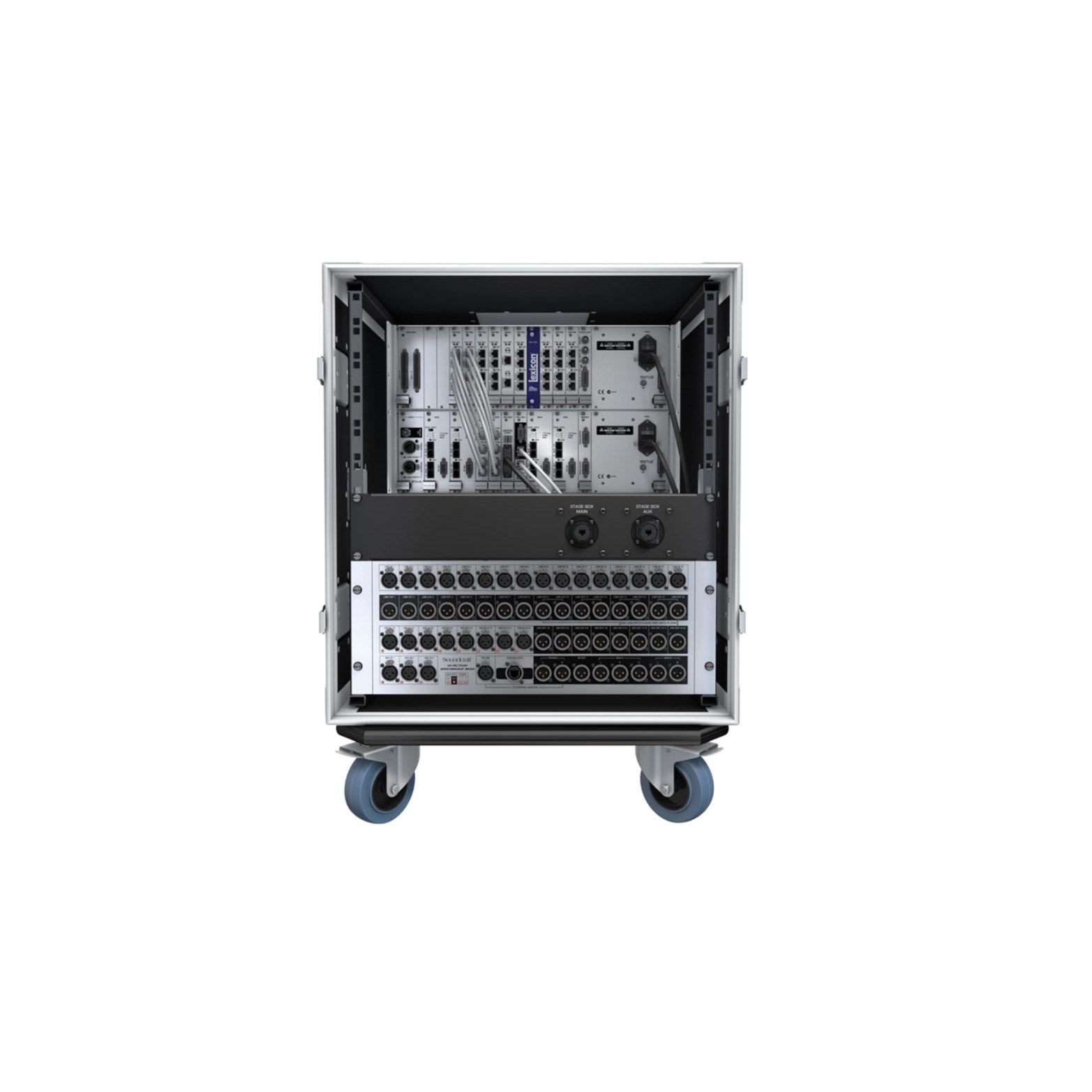

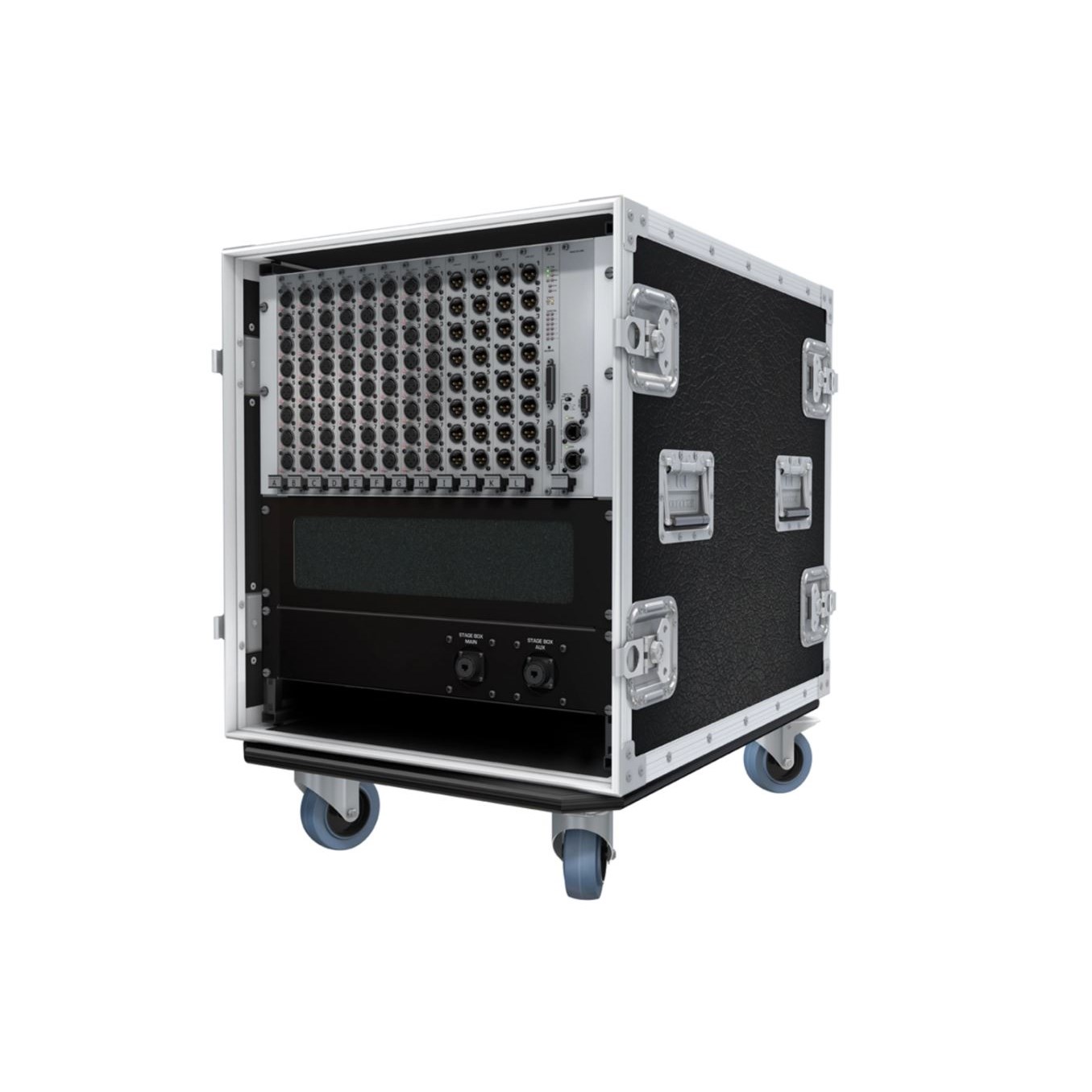

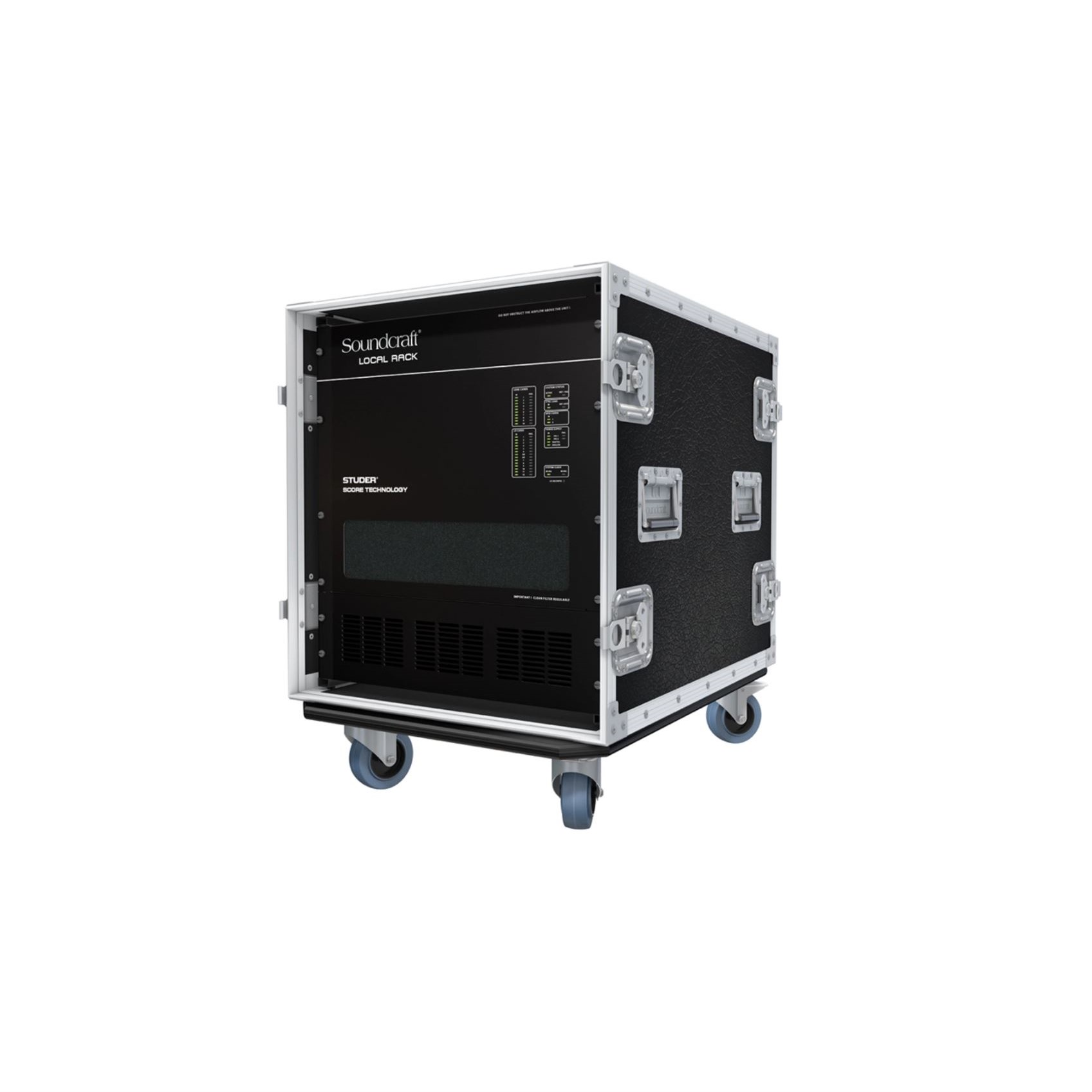

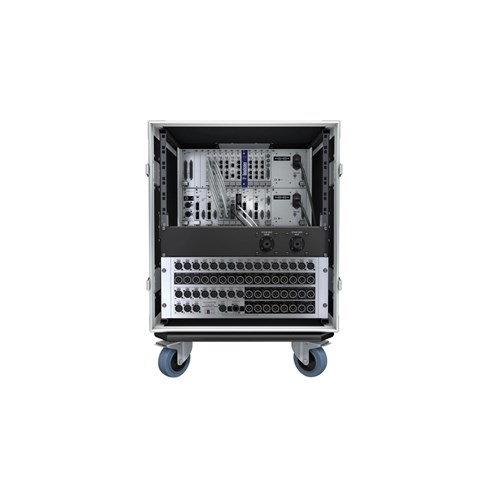

  • New Local Rack hardware for 384 I/O channels
  • 128 channel record interface via MADI or Dante™
  • Mix live with UA™ plug-ins (via Realtime Rack)
  • Huge connectivity options - Dante™, Rocknet™, Ethersound™, Cobranet™, MADI and more
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

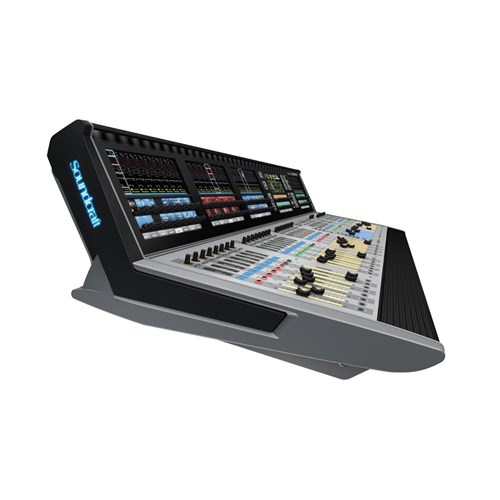

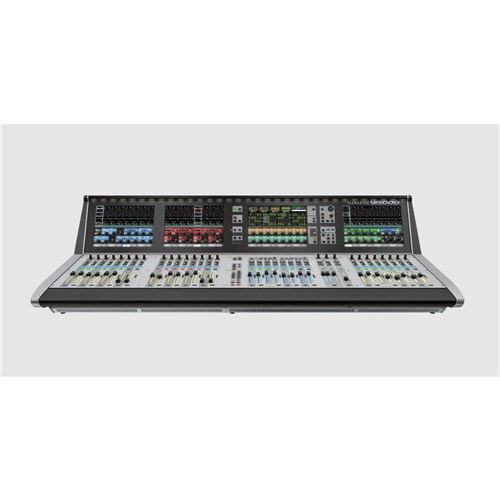

Soundcraft Vi5000 Compact Digital Mixing Console

The Vi5000 digital mixing consoles delivers the best Vi sound ever, bringing optional 96kHz processing, upgraded channel counts and even more reliable hardware to live sound's most popular mix interface.

Partnering a compact control surface with new Local Rack and Active Breakout box hardware, Vi delivers simultaneous mixing of up to 128 inputs and 32 mono/stereo busses.

Pristine sound quality is assured by ultra-low noise mic amp designs and enhanced 96kHz* 40-bit floating point digital audio processing, while FX come courtesy of 8 independent Lexicon multi-FX units, BSS DPR901ii™ integration and a BSS graphic EQ on every bus output. Rapid configuration and powerful automation features, radio mic status monitoring and extensive ViSi Connect I/O expansion (EtherSound™, CobraNet™, Dante™, MADI, etc.) complete the package.

* Additional DSP cards and reduced channel count required for 96kHz operation

For more detailed information, please refer to the attached Brochure.



Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Response - Stagebox Mic input to Line output +0/-1dB, 20Hz-20kHz
AES/EBU In to AES/EBU Out +0/-0.2dB, 20Hz-20kHz
Stagebox Mic In (min gain) to Local Line Out <0.003% @ 1kHz
Stagebox Mic In (max gain) to Local Line Out <0.020% @ 1kHz
Local Line In to Line Out <0.003% @ 1kHz
Mic Input E.I.N <-126dBu (150Ω source)
Residual Noise -91dBu Stagebox line output; no inputs routed, Mix fader @0dB
CMRR, Stagebox Mic input 80dB @ 1kHz
Sampling Frequency 48kHz or 96kHz
Latency: Stagebox Mic Input to Local Line output <2ms @48kHz
AES/EBU Input Sample Rate 32–108kHz (with SRC enabled)
DSP Resolution 40-bit floating point
Internal Clock Accuracy <+/-50ppm
Internal Clock Jitter <+/-5ns
External Sync BNC Wordclock
Input & Output Levels - Mic Inputs +28dBu max
Input & Output Levels - Line Inputs +22dBu max
Input & Output Levels - Line Outputs +22dBu max
Nominal Operating Level +4dBu (-18dBFS)
Input & Output Impedances - Mic Inputs 10kΩ
Input & Output Impedances - All other analogue Inputs >10kΩ
Input & Output Impedances - Line Outputs <75Ω
Input & Output Impedances - AES/EBU Outputs 110Ω
Oscillator 20Hz to 20kHz/Pink/White Noise, variable level
Stagebox HP Filter 80Hz fixed, 12dB per octave
Channel HP filter 20Hz-600Hz, 18dB per octave
Channel LP filter 1kHz-20kHz, 18dB per octave
EQ (Inputs and Bus Outputs) - HF 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
EQ (Inputs and Bus Outputs) - Hi-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - Lo-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - LF 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
Metering Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
Mains Voltage Operating Range 90-264V, 47-63Hz, autoranging
Mains Power Consumption 300W
Operating Temperature 0°C – 45°C (32°F – 113°F)
Relative Humidity 0% – 90%, non-condensing Ta=40°C (104°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
