Soundcraft Ui24R 24-Channel Digital Mixer/USB Multi-Track Recorder with Wireless Control

Product Code: SCF 5085429

Key Features
  • Built-in dual-band Wi-Fi. Connects up to 10 mobile devices
  • Control Ui24R from iOS, Android, Windows, Mac OS and Linux browsers without installing additional apps
  • Record and mix with 20 Studer-designed preamps
  • dbx compression and iconic Lexicon reverb and delay processing
  • 2 channels of DigiTech guitar amp modeling
  • Dual-path, redundant multi-track recording of all 24 inputs to USB drive and connected Mac/PC
  • 24 simultaneous inputs (10 combo 1/4" TRS/XLR, 10 XLR, 2 line level, 2 digital)
  • 4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate on input channels
  • 31-band graphic EQ, noise gate, compressor, and dbx AFS2 Automatic Feedback Suppression on all outputs
  • Real-time frequency analyzer (RTA) on inputs and outputs
  • Compatible with Mac/PC DAWs and other music software
  • Compatible with Harman Connected PA application and system

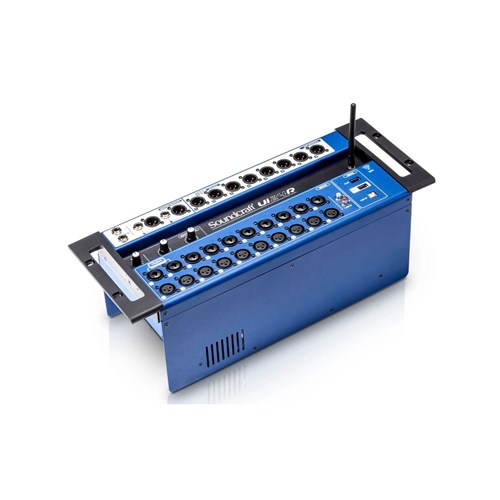

  • 4U rackmount
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

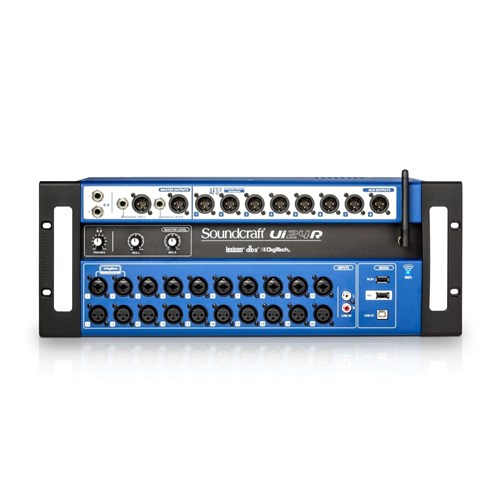

Soundcraft Ui24R 24-Channel Digital Mixer/USB Multi-Track Recorder with Wireless Control

The Soundcraft Ui24R is a complete, rack-mountable, digital mixing and multi-track recording system that delivers flexible I/O, pristine sound quality, intuitive wireless control, and roadworthy reliability—all in a streamlined design. The system can double as a stagebox and can be controlled by up to 10 devices via Ethernet or built-in dual-band Wi-Fi, making it possible to control mixing and multi-track recording wirelessly from anywhere in the venue. With renowned HARMAN signal processing, Studer-designed preamps and much more—from the studio to the stage, Soundcraft Ui24R is the ultimate system for artists, venues and engineers who need to save space and deliver superior sound.

HARMAN Sound Quality and Reliability

Ui24R brings together industry-leading HARMAN technologies to deliver unprecedented power and mission-critical stability. Renowned Studer preamps deliver rich sound for live performance and multi-track recording, while iconic Lexicon reverbs, choruses, delays, and dbx compression offer polished results for vocals, acoustic guitar and more. dbx AFS2 automatic feedback suppression is available on all monitor outputs, providing an excellent live experience. Plus, DigiTech guitar amp modeling brings a host of effects to any performance, particularly when low stage volume is desired.

More Ways to Connect

UI24R_1

When you need a mixer with comprehensive connections and a compact footprint, Ui24R provides the perfect, streamlined solution. The Ui24R allows you to mix from multiple sources including 10 combo 1/4"-TRS/XLR, 10 XLR, 2 line level inputs, and 2 channels of digital USB playback for a total of 24 channels. With its flexible and high-quality I/O, Ui24R gives venues, bands and engineers room to grow, with expanded creative options.

More Ways to Control

UI24R_2

Control Ui24R from the device of your choice (tablet, phone, PC, Mac) via iOS, Android, Windows, Mac OS and Linux browsers, without installing apps. Onboard dual-band WiFi ensures you (and up to 9 members of the band) can always stay in control without relying on an independent router or the venue’s WiFi. Musicians can adjust their individual mix on stage while the FOH engineer optimizes the audience experience.

Multi-track Recording and Playback

UI24R_3

Ui24R is more than just a complete mixing system—it’s also a top-notch recording tool. Enjoy peace of mind with dual-path, multi-track recording of all 22 inputs and your stereo mix, directly to a USB storage drive AND a connected computer. The multi-channel USB audio interface also makes it easy to integrate the Ui24R into your recording studio for production work with your favorite DAW.

The Ableton Live 10 Lite software is an included download with all Ui Series mixers. Feed your creativity with this fast, flexible and sequencing workstation. From built-in instruments, sounds and effects to recording and mixing features, Live 10 Lite gives you everything you need to create, produce and perform.

More Freedom

UI24R_4

Traditional mixers offer lots of functionality, but can only be controlled from the mix console position. The Ui24R surfaceless mixer combines the power and versatility of a large-format console with a compact design and complete Wi-Fi control. With Ui24R, you can finally have the features you need, plus the freedom to control your mixer from anywhere in the venue.







Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

For a full list of technical specifications, please refer to the attached Owner's Manual.

  • (20) Mic Preamps: Studer designed, 10 combi, 10 XLR
  • (2x) Line Inputs: -10 unbalanced
  • (2x) Master Outputs: +4 XLR, with individual volume pots
  • (2x) Headphone Outputs: With shared volume pot
  • (8x) AUX Outputs: +4 XLR with 32 band graphic and dbx AFS2
  • Feedback Suppression

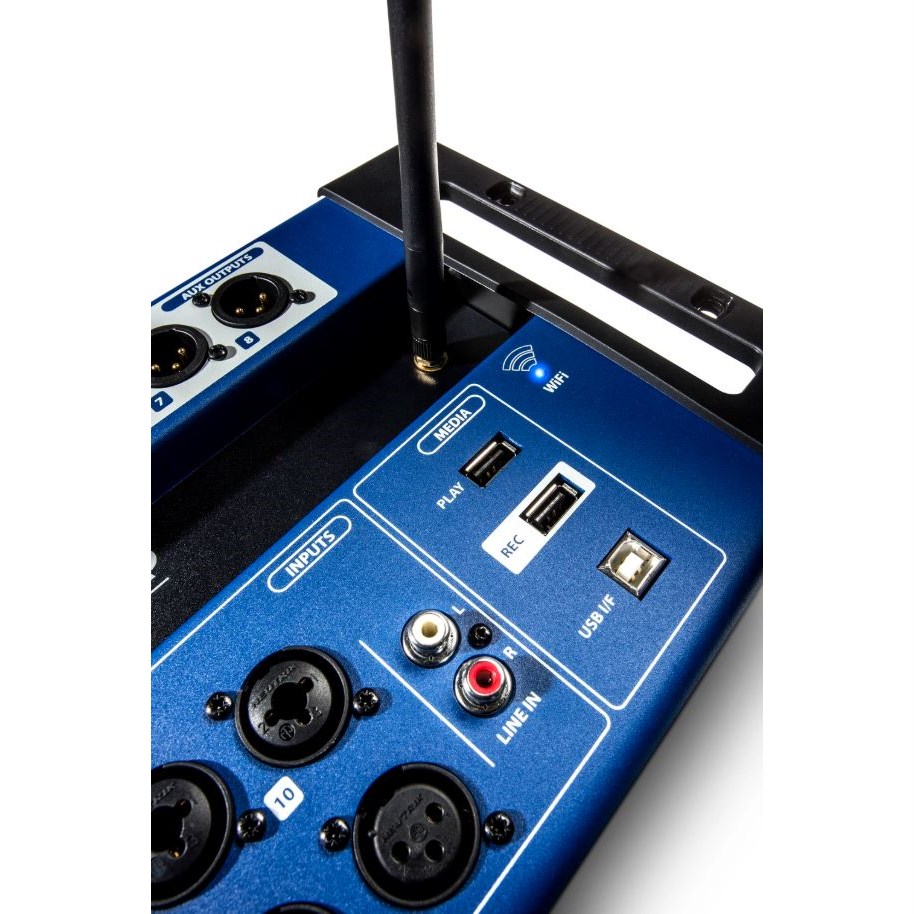

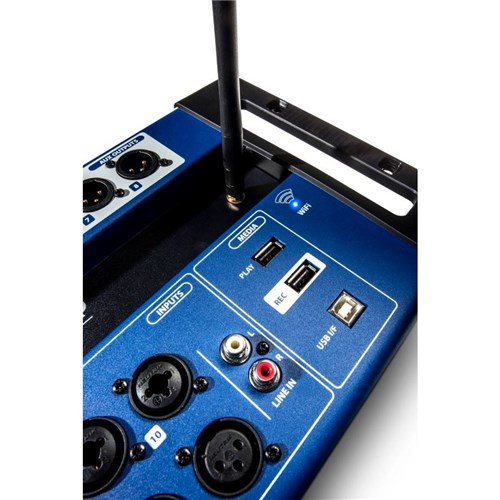

  • USB PLAY: USB A port
  • USB RED: USB A port
  • USB I/F: USB B port

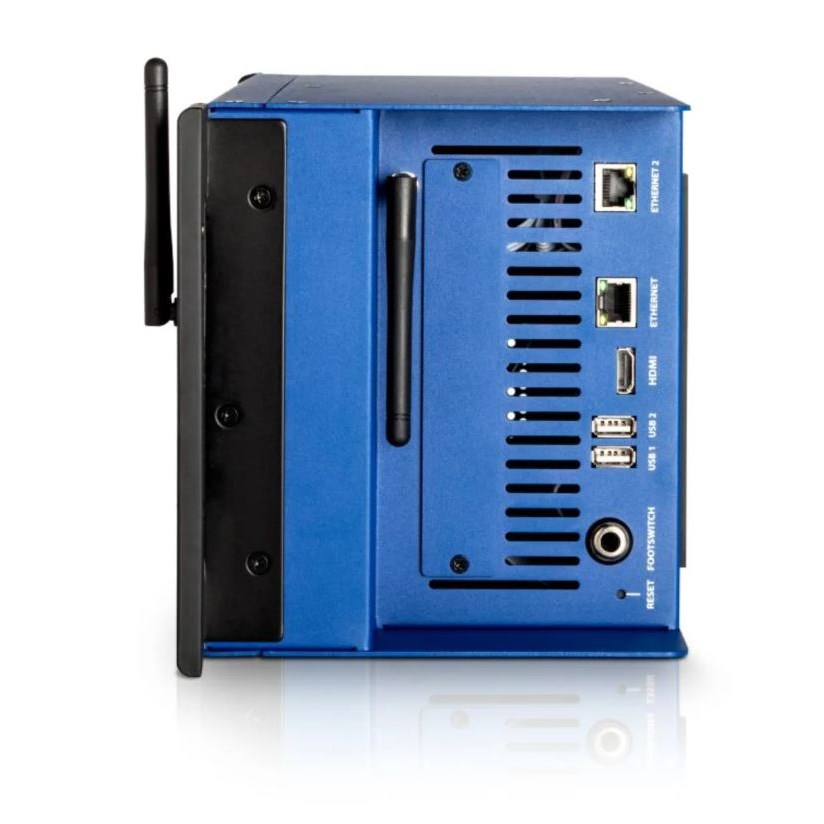

  • USB 1: USB A, for controllers (such as a computer mouse)
  • USB 2: USB A, for software update installation
  • Footswitch: ¼” for closure pedal event trigger
  • Ethernet : RJ45, for LAN connections
