Si Impact 80-input Digital Mixing Console

Product Code: SCF 5056170

Key Features
  • Up to 80 channels to mix
  • 32 Mic Inputs
  • 8 XLR/1/4" Combi-jacks for line inputs and instruments
  • 40 DSP input channels (32 mono inputs and 4 stereo channels/returns)
  • 31 Output busses (All with full DSP processing and GEQ)
  • 4-band Fully Parametric EQ on each channel and bus
  • 8 VCAs + 8 Mute groups
  • 26 motorised faders (24 input + LR/Mono)
  • 4 fully customisable Fader Layers
  • Built-in Stagebox Connectivity
  • 5" touchscreen display
  • Multi-Colour LCD Channel Displays on each input fader
  • 4 studio-grade Lexicon Effects engines and dedicated FX busses
  • BSS Graphic Equalisers on every bus
  • 20 sub-group / aux busses
  • 4 mono/stereo matrix busses
  • 32x32 USB audio interface for multi-track recording and playback
  • Increase I/O capabilities with option cards and stageboxes
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

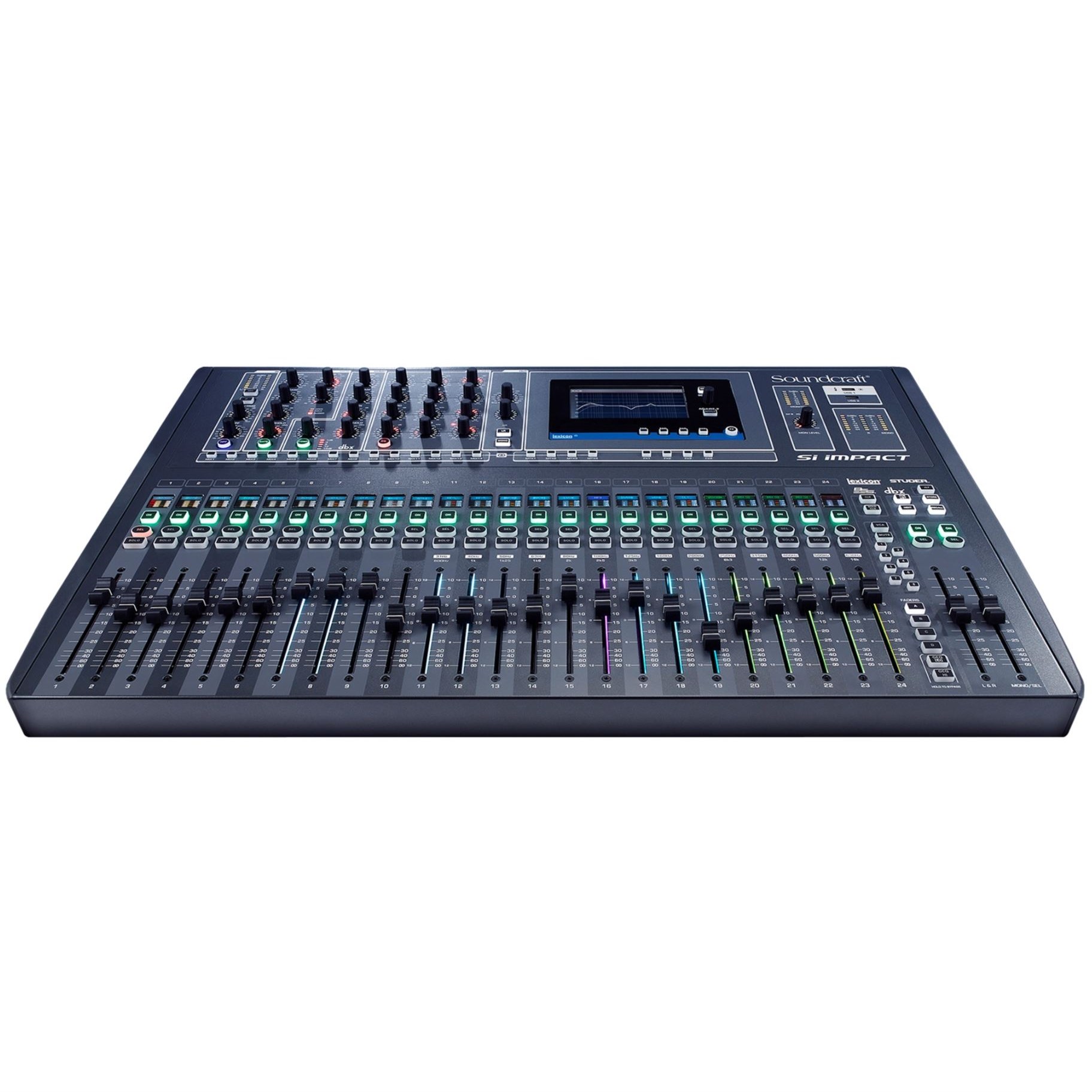

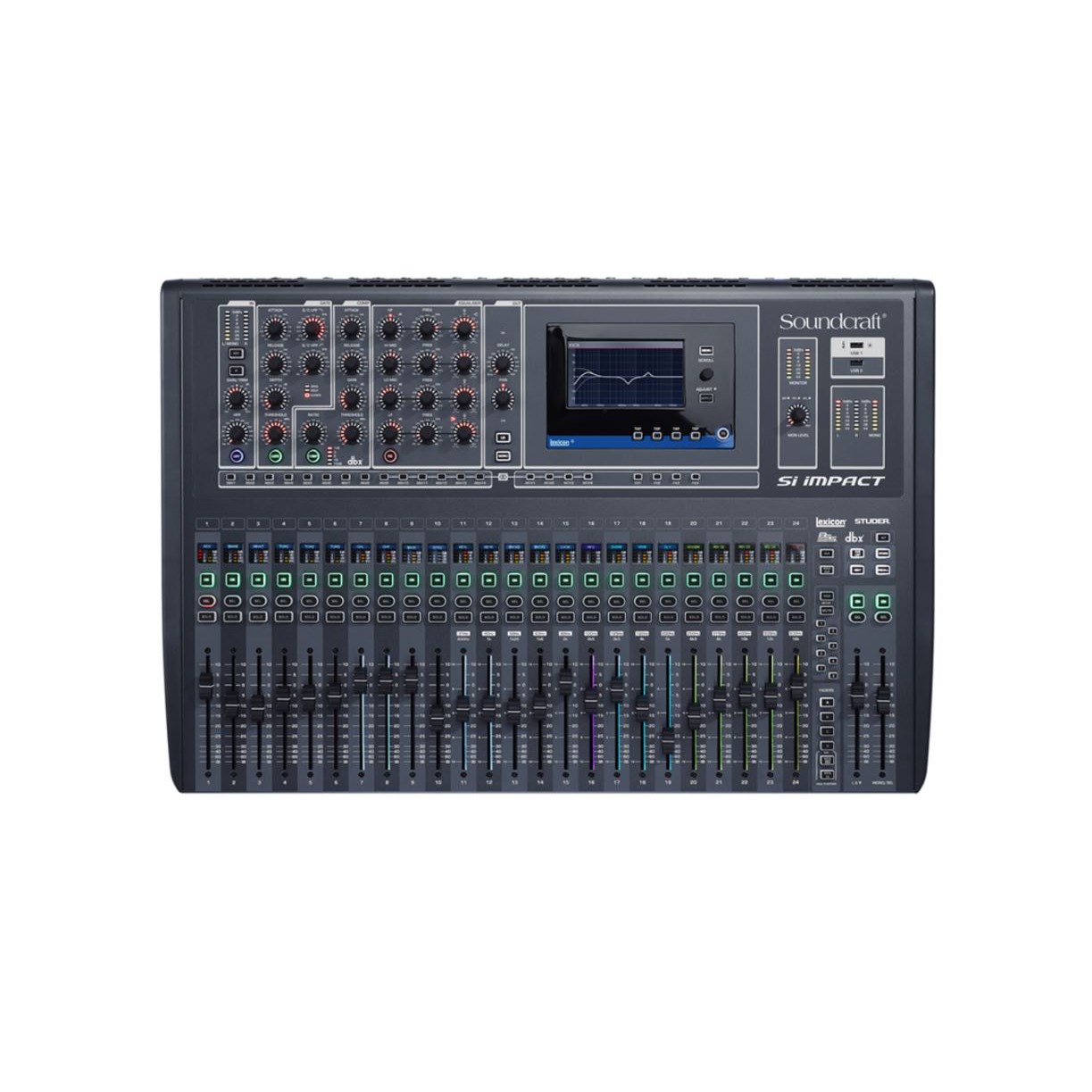

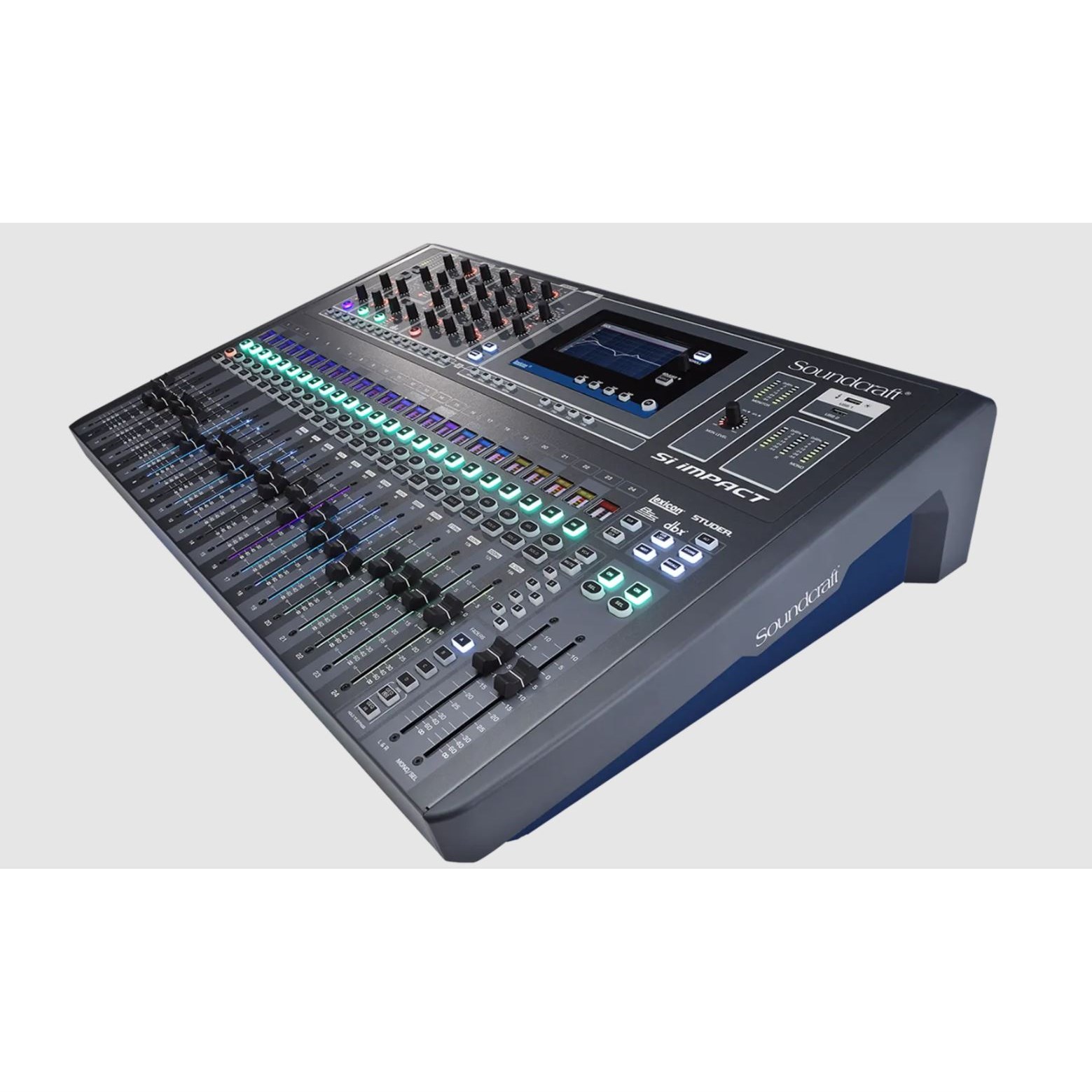

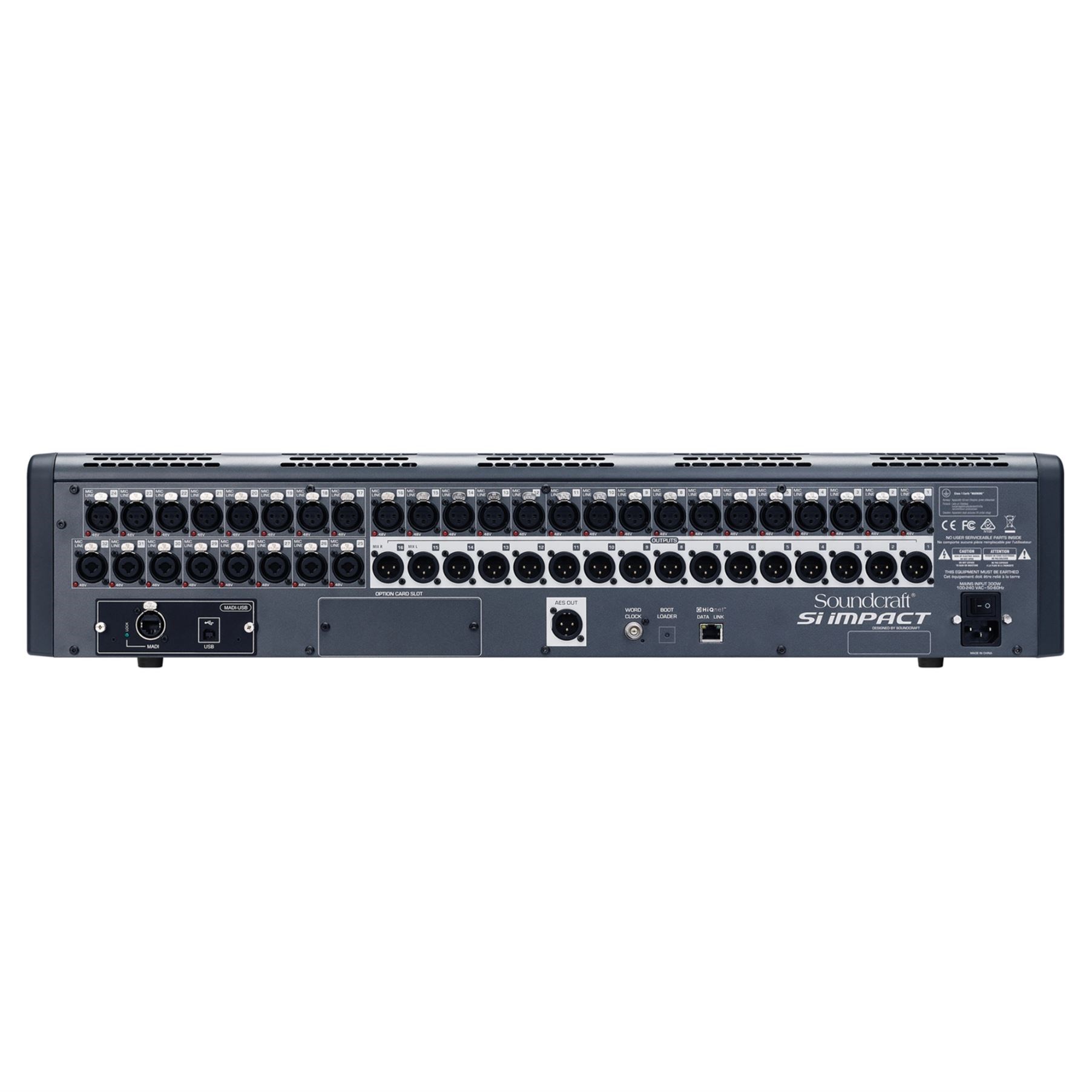

Si Impact 80-input Digital Mixing Console

FREE Soundcraft Si Impact 2.0 Firmware Update Doubles Total Channels to Mix!

In our continual quest to provide more value to Soundcraft customers, we are happy to announce an incredible free update to the Si Impact that doubles your total channels to mix from 40 to 80! The newest firmware— V2.0 Build 0012—optimizes performance with the free ViSi Remote iOS application and clarifies terminology when routing to or from stage boxes.

A Greater Impact

  • Now combine the 32 mix inputs on the Si Impact console plus all 32 USB inputs for 64 total channels to mix.
  • Add one Soundcraft Mini Stagebox 32i or 16i to get up to 64 mic channels to mix. Or add a second MADI option card and two Mini Stagebox units for up to 96 microphone preamps, 128 total available inputs and 80 channels to mix.
  • Add the Dante option card to get 64 Dante channels to mix.

Si Impact. Innovative digital mixing with uncompromised audio quality

Drawing on over 40 years experience in live sound mixing, Si Impact brings the latest digital mix innovations together with the unrivalled sound quality of Soundcraft. Designed to be as simple as an analog mixer, but offer radical workflow enhancements such as the unique FaderGlow™ system, massive DSP power, and a pristine 32-in/32-out USB audio interface, Si Impact delivers digital live sound mixing and recording for those who refuse to compromise on audio quality.

Going beyond analogue control

Combining One-Knob-One-Function control with unique features like FaderGlow, Soundcraft combines analogue workflow with digital flexibility. FaderGlow illuminates the fader track in different colours to provide at-a-glance status information on precisely what the fader is controlling – aux sends, FX sends or even the graphic EQ that's available on every bus.

Each fader channel also features a clear multi-color LCD display - giving 'at a glance' information on levels and offering a fully customisable'scribble strip' to name your channels.

World-class effects & dynamics

Si Impact isn't just packed with DSP power. It's packed with DSP power from the acknowledged experts in digital FX. That means studio-grade reverbs, delays and modulations from Lexicon, legendary dbx dynamics and industry-standard BSS Graphic Equalisers.

Put your I/O where you need it

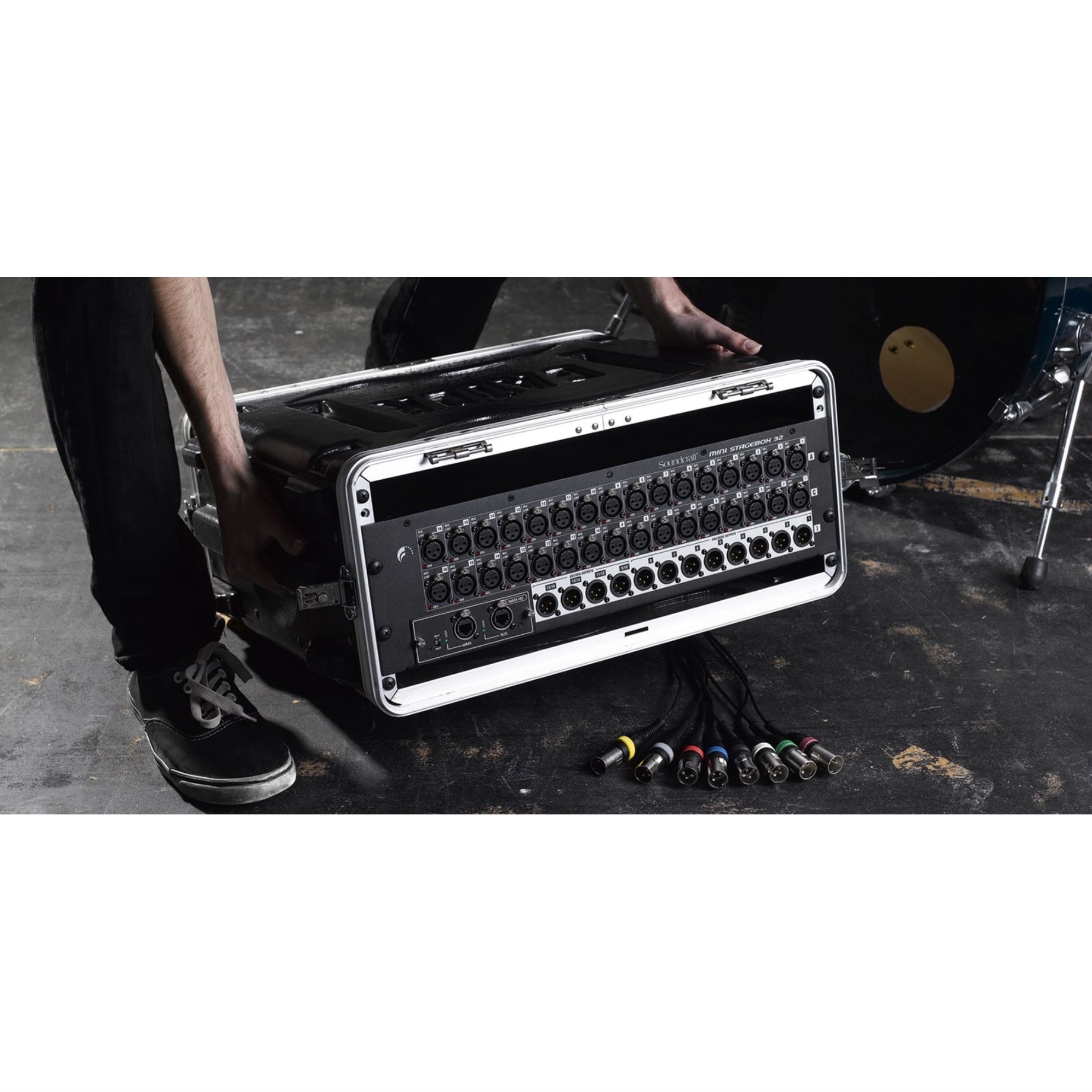

With built-in connectivity for an optional Soundcraft Stagebox, Si Impact lets you put your I/O where you need it.

Set up your Stagebox by the band for live sound applications, or position it in the live room for studio recording all via a single piece of Cat 5 cable.

Pristine audio direct to your DAW

Si Impact makes recording quick and easy with superb quality, built-in 32-in/32-out USB recording and playback.

A single connection to your PC or MAC and you're ready to make multi-track recordings direct to any digital audio workstation. Send up to 32 inputs and 32 outputs to and from your DAW for recording and playback.

Remote mixing with your iPad®

The mix power of Si Impact is accessible from anywhere in the venue, via the Soundcraft remote iPad® app.

Mix FOH from the audience location, mix monitors from the stage, or allow musicians to set their own monitor mix from multiple iPad® devices.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Height 160mm (6.3")
Width 750mm (29.5")
Depth 500mm (19.7")
Weight 20kg (44.1lb)

For a full list of technical specifications, please refer to the attached User Guide (Page 9).
