Roadworx RW110124 Digial Audio Cable 110 Ohm AES - EBU 1-Pair Foil Screened 24AWG Violet - 300m Reel

Product Code: RW110124VI300

Key Features

Digial Audio Cable 110 Ohm AES - EBU 1-Pair Foil Screened 24AWG Violet

$1.10 inc GST
(Mtr)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx RW110124 Digial Audio Cable 110 Ohm AES - EBU 1-Pair Foil Screened 24AWG Violet

Description

7/0.2TC x 1P Foam PE Drain Wire Al. Foil PVC Sheath Φ4.5mm

Applicable Standards

AES/EBU

Suitable Applications

For applications requiring 110 ohm low capacitance balanced cables, such as AES/EBU digital audio in broadcast, studios and other commercial sound applications. Can be used for any balanced analogue audio signals.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

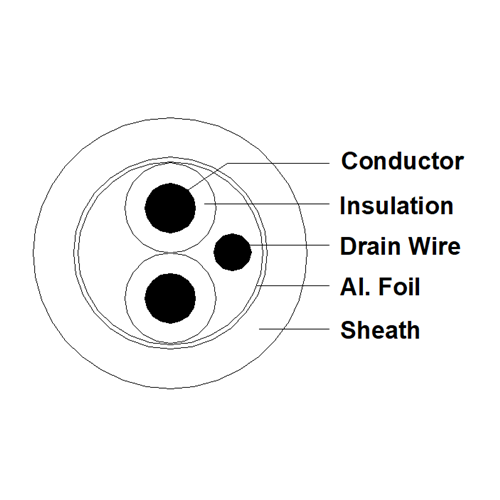

Cable Description

Conductor 7/0.2 /-0.006TC
Insulation

Pair: 1

Material: Foam PE

Colour: Black/Red
Min. Thickness 0.42mm / Nom. Thickness ≥0.50mm / Nom. O.D 1.7 /-0.1mm
Drain Wire

7/0.2 /-0.006TC
Screen

Al. Foil 100% Coverage
Sheath

Material : PVC / Colour: Black

Min. Thickness 0.40mm / Nom. Thickness ≥0.50mm / Nom. Sheath O.D 4.5 /-0.2mm

Spark Voltage : 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 93.25 ohm/km 20°C
Characteristic Impedance 110 ohm
Nom. Mutual Capacitance 12 Pf/ft @ 1KHz
Voltage Test: Core to Core 1000V a.c/1min
Voltage Test: Core to Screen 1000V a.c/1min

Physical Properties

Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70?
Max. Recommended Pulling Tension 30N
Min. Bend Radius (install) 45mm
Approximate Mass 2.0kg/100m
Sheath Printing ROADWORX RW110124 Digital Audio, 1 pair, 110 Ohm Low Capacitance, 24AWG (meter marking)
