Ruslyn Cordwheel Cable Wheel - Green

Product Code: AUS004754-GN

Key Features
  • Cord Wheel
  • Colour: Green
$117.29 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

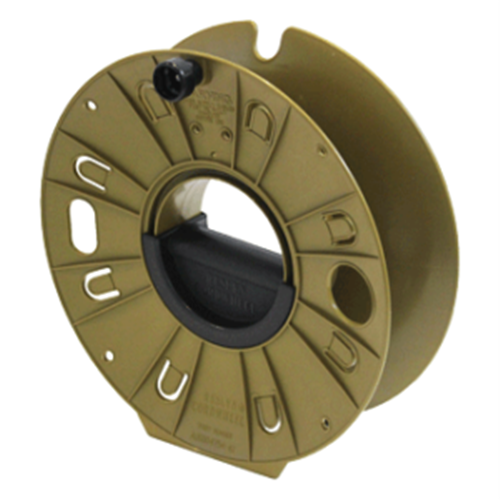

Ruslyn Cordwheel Cable Wheel - Green

The Ruslyn Cordwheel® is a hand held, lightweight, ergonomic, multi-function cord wheel used by the audio visual and broadcast industries for the tangle free cord reel handling and storage of cables used in outside broadcast, film production and event management.

The Ruslyn Cordwheel® is Australian designed and manufactured. It is used throughout Australia and exported worldwide.



CABLES USED IN AUDIO VISUAL

Audio visual, outside broadcast and film production cables are efficiently handled, stored and protected on the Ruslyn Cordwheel® and Ruslyn Pack Reel.

VIDEO AND FILM PRODUCTION

The Ruslyn Cordwheel and Ruslyn Pack Reel are both used as cord wheels in cable handling during film production. As OH&S cord wheels they improve the safety of film crews who regularly operate in cluttered environments. Both the Cord Wheel and Pack Reel play an important role in protecting expensive cables. The Ruslyn Cordwheel is used as a camera cable reel, power cable reel, microphone reel and speaker cable reel. The Ruslyn Pack Reel is a small reel ideal for handling shorter lengths of microphone cable and speaker cable. Also used to handle cat5 cable.

OUTSIDE BROADCAST AND EVENT MANAGEMENT

The Cordwheel and Pack Reel are both used for reeling cables in outside broadcast and event management. They are both corrosive resistant and UV protected. The Pack Reel has no metallic components and the Cordwheel handle and winder knob are attached by stainless steel screws. Both reels are impact resistant, rugged and lightweight. They can assist with managing expensive cables which can be damaged during use. The Cordwheel and Pack Reel therefore assist in cost reduction by deploying and storing cables in a safe and efficient manner.

Warranty
To enquire about warranty on this product, contact our MadisonAV Customer Service team on 1800 00 77 80.
Trade Terms
The above item is non-returnable, unless defective. Please ensure part numbers and descriptions are as required before placing this order. If any confirmation or information is required please contact AV Sales on 1800 00 77 80.

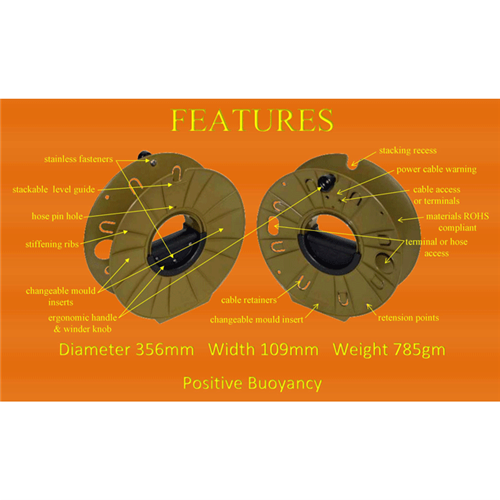

CONSTRUCTION:

Spool:

  • Polypropylene
  • Impact resistant
  • UV stabilised
  • Chemical resistant
  • Fire retardant
  • Recyclable
  • RoHS Compliant

Centre Handle & Knob:

  • ABS
  • Impact resistant
  • UV stabilised
  • Recyclable
  • RoHS Compliant



DIMENSIONS:

Reel diameter 35.6cm (14 inch)
Reel width 10.9cm (4.3 inch)



WEIGHT:

Empty reel 785g (1.73 lb)
Packed carton (five reels) 5kg (11 lb)



COLOUR:

Olive green spool with black centre handle and winder knob.



AUDIO VISUAL CABLES AND RUSLYN CORDWHEEL® CAPACITY:

FLEXIBLE ETHERNET:

  • Belden 1304A: 160m
  • Belden 1305A: 150m

MICROPHONE CABLE:

  • Belden 8412: 100m
  • Belden 1192A: 150m
  • Roadworx RW200120 : 100m
  • Roadworx RW20SQ24: 150m

ANALOGUE VIDEO CABLE, RG59 FLEXIBLE:

  • Belden 9259: 150m
  • Roadworx RW400122: 150m
  • Barrier tape, NDT tape: 150m

DIGITAL VIDEO CABLE, RG59 FLEXIBLE:

  • Belden 1505F: 150m

DIGITAL VIDEO CABLE, RG6 FLEXIBLE:

  • Belden 1694F: 150m
  • Barrier tape, NDT tape: 100m

ANALOGUE AUDIO SNAKE, 4 WAY FLEXIBLE:

  • Belden 1904A: 70m

ANALOGUE VIDEO SNAKE, 8 WAY FLEXIBLE:

  • Belden 1908A: 40m

CAPACITIES:

  • Signals cable WD-1/TT (Don 10): 350m (1148ft)
  • Cat cable: 175m (574ft)
  • Power cable: 30m (98ft)
  • Rope 10mm (3/8″): 50m (164ft)
  • Firing cable: 250m (820ft)
  • Detonator cord: 175m (574ft)
  • Shock tube: 400m (1312ft)
  • Air hose: 20m (65ft)
  • Fire hose (19 & 25mm): 30m (98ft)
  • Optical fibre cable: As Required
  • Audio / Visual cable: As Required
  • Barrier tape, NDT tape: As Required
  • Wire and chain: As Required
