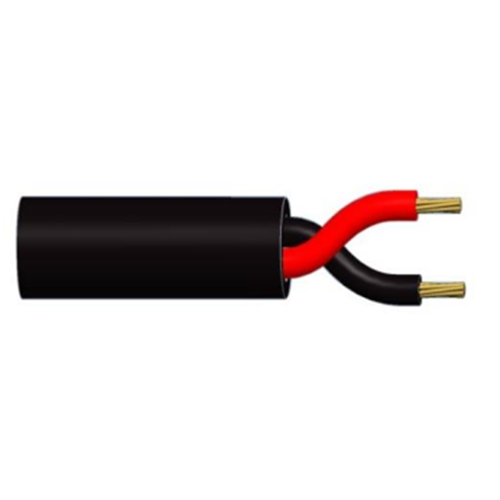

Roadworx RW530211 Speaker Cable 2 Conductor 11AWG (4.02mm) Black 300m Reels

Product Code: RW530211BK300

Key Features

Roadworx RW530211BK300 RW530211 Speaker Cable 2 Conductor 11AWG (4.02mm) Black 300m Reels

57/0.3BC x 2C PVC Insulation PVC Sheath Φ10.2mm
$5.50 inc GST
(Mtr)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx RW530211BK300 RW530211 Speaker Cable 2 Conductor 11AWG (4.02mm) Black 300m Reels

Used to make the electrical connection between loudspeakers and
audio amplifiers.
Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

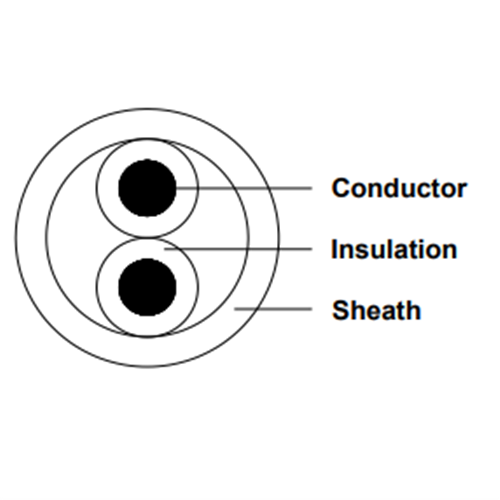

Cable Description

Conductor 57/0.3 /-0.006BC
Insulation Core: 2
Material : PVC
Colour: Black, Red
Min. Thickness 0.51mm / Nom. Thickness ≥0.60mm / Nom. O.D 4.0 /-0.1mm
Sheath

Material : PVC / Colour: Black

Min. Thickness 0.8mm / Nom. Thickness ?1.0mm / Nom. O.D 10.2 /-0.2mm

Spark Voltage: 3000V a.c

Electrical Properties

Voltage Rating 300V ac
Conductor Max D.C Resistance 4.95 ohm/km 20°C
Voltage Test: Core to Core 1.0kV a.c/1min

Physical Properties

Insulation Elongation ≥100%
Insulation Tensile Strength ≥13 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 75?
Max. Recommended Pulling Tension 564N
Min. Bend Radius (install) 102mm
Approximate Mass 14.8kg/100m
Sheath Printing TBA
