PTZOptics Studio SE 3rd Gen Fixed Lens Camera 1080P at 60fps 20X Opt Zoom Grey

Product Code: HUD-PT20X-STUDIO-SE-GY-G3

Key Features
  • Colour: Grey
  • 1080p
  • 60fps Resolution
  • 20x Optical Zoom
  • Compact & Modern Fixed Design
  • Hive-Linked for One-Click Integration
  • SDI, HDMI, USB, and IP Outputs with NDI® HX3
$3,196.75 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

PTZOptics Studio SE 3rd Gen Fixed Lens Camera 1080P at 60fps 20X Opt Zoom Grey

Fixed Cameras, Superior Video

Whether as a standalone camera or an addition to a larger studio setup, PTZOptics’ Studio Series provides sharp 1080p resolution, 12X or 20X zoom and the convenience of our easy-to-use online platform, Hive Studio, providing future-ready connectivity and control from anywhere.

Connect, Point, Produce!

The Studio Series features SDI, HDMI, USB, and IP output and comes native with NDI® HX3, allowing for seamless integration into various video production setups, connecting directly to a live production switcher, streaming over a network, or recording through an SDI interface. Built-in Hive-Linked connectivity links to Hive Studio automatically!

Power, Endurance, and Performance

The Studio SE is your perfect entry into the world of videography, offering powerful zoom capabilities, reliable performance, and scalability. Capture a head-and-shoulders shot of your subject from over 100 feet away with zoom strengths of 12X or 20X, perfect for medium or large spaces. Designed for utility, connectivity, and endurance, a camera from the Studio Series will be your new video system workhorse.

A Multitude of Applications

A Studio Series camera is the perfect companion to a Move SE multi-camera setup, enhancing your production capabilities with additional fixed-camera options that complement your PTZ cameras. The Studio Series’ high-quality construction and discreet profile makes it the perfect choice for streaming municipal meetings, worship services, sports, and security applications. In addition, as fixed cameras the Studio Series is courtroom friendly.

Future-Friendly Performance

Studio Series cameras are Hive-Linked (now in beta!) and equipped with cutting-edge onboard control technology, providing the perfect solution for evolving production workflows. With just a few clicks, you’ll have centralized management of all your cameras from anywhere with just a web connection, making controlling and configuring multiple cameras from a single interface easier.

StudioSE_1

Free Software for PTZOptics Users

PTZOptics cameras are compatible with a wide range of free software solutions, including:

  • Camera Management Platform (CMP) for camera management, control, color correction, and auto-tracking (zoom-only for the Studio 4K)
  • Control apps for desktop and mobile devices
  • Plugins and integrations for popular platforms, including OBS
  • Camera configuration and management tools
  • Support and testing utilities
  • And more!

Videos:





Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Camera & Lens Image Sensor & Lens 12x and 20x: 1/2.8” CMOS, 8MP (8.4M effective pixels)
Digital Zoom 16x
Resolution and Frame Rate HDMI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50/30/29.97
SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1280x720p-60/59.94/50/30/29.97
Optical Lens Focal Length (Zoom) 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
20x: f = 4.7mm ~ 94mm, F1.6 ~ F3.6
Optical Lens Field of View, Horizontal & Vertical 12x: H 6.9° ~ 72.5° | V 3.9° ~ 44.8°
20x: H 3.5° ~ 60.7° | V 1.9° ~ 34.1°
Display Field of View 12x: 80.2°
20x: 67.8°
Min Lux 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
Presets 255 Presets
Presets Accuracy 0.1°
Image Flip Supported
Image Mirror Supported
Image Freeze

Supported

Physical Specifications Material Aluminum, Plastic
Color Gray or White
Dimensions (L x W x H) 5.7" L x 2.99" W x 3.09" H | 145mm L x 76mm W x 78.5mm H
Weight 12x: 1.5 lbs | 0.68kg
20x: 1.4 lbs | 0.64kg
Working Environment Indoor
Humidity Range 10% ~ 80%
Operating Temperature 14°F ~ 104°F (-10°C ~ 40°C)
Storage Temperature

-40°F ~ 140°F (-40 ~ 60°C)

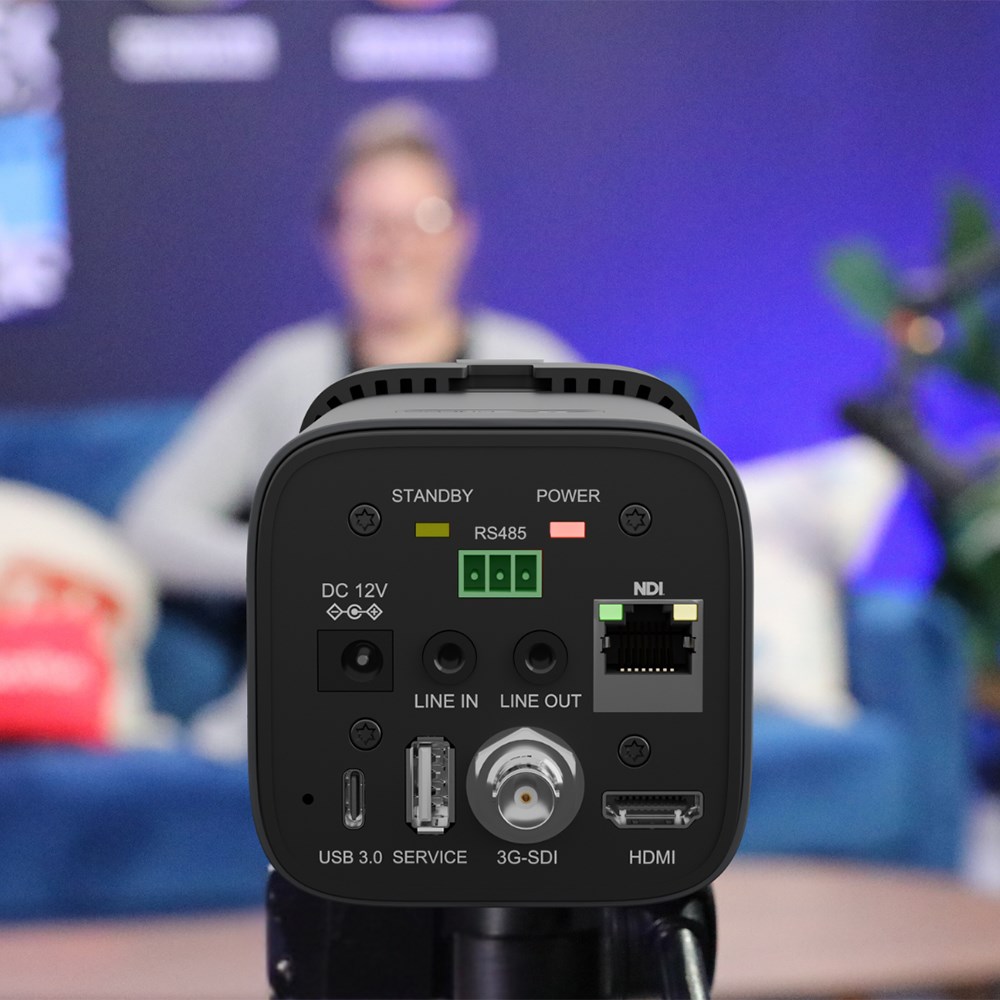

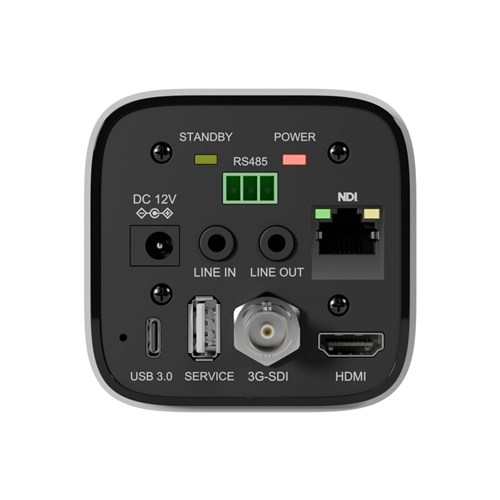

Connections HD Video Output 1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI® HX3 enabled
1x HDMI: Version 2.0
1x USB: 3.0 Type C
1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M
Audio Interface 1x 3.5mm Line level input
1x 3.5mm Line level output
Video Formats USB:
  • YUY2: Max resolution 1920x1080p @ 30fps
  • MJPEG: Max resolution 1920x1080p @ 30fps
  • H.264 AVC & SVC: Max resolution 1920x1080p @ 30fps

RTSP/NDI® HX3 only:
  • H.265: Max resolution 1920x1080p @ 30fps
Compression Standards H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI® HX3 only)
UVC Version Supported UVC 1.1
Supported Protocols TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX3, SRT, Multicast, etc.
IR 4x IR Addresses, Max distance 30ft / 9m
Power Supply JEITA type (DC IN 12V) / PoE (802.3at)
Current Consumption Max 2A
Power Consumption Max 18W
