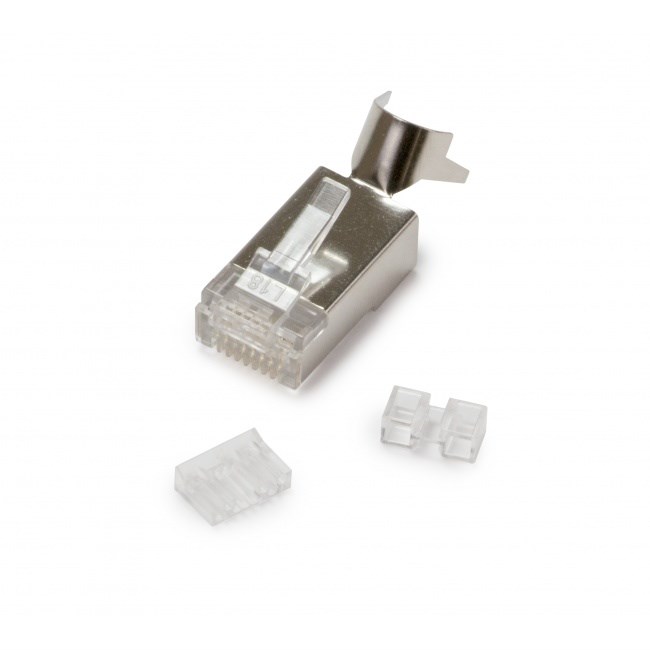

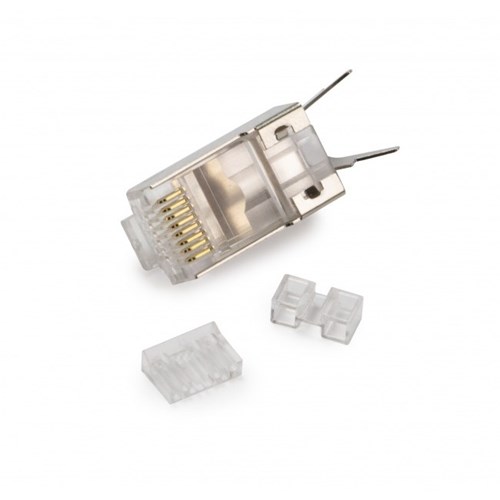

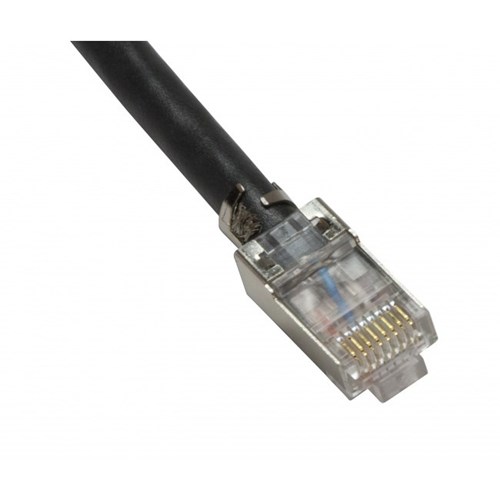

Platinum Tools RJ45 CAT6a/7 STP Solid/Stranded Modular Connector - Single

This shielded Cat6A/7 RJ45 (8P8C) modular connector is designed to terminate round solid or stranded, 28 – 26 AWG, Cat6A/7 network cable. The connector contains 3-Prong contacts that hold the wire in place giving a reliable connection. This connector meets and exceeds 10Gig performance standard.

• Cable Jacket Outer Diameter Size Range: 0.224” – 0.335” (5.7mm – 8.5mm)
• Insulation Diameter (Conductor) Size Range: 0.037” – 0.041” (0.94mm – 1.05mm)
• Compatible with CAT7, CAT6A, CAT6E, and CAT6
• Meets ANSI/EIA/TIA/TAA specifications
• Round Solid and Stranded, 28–26 AWG
• Shielded Connector, External Ground
• 3-Prong, 50 micron Gold plated Contacts
• 3 Piece with Liner and Spacer Bar
• Meets 10Gig Performance Standard
• UL and RoHS/FCC compliant
• Color: Clear/Transparent

Compatible Crimp Tool
• Tele-Titan™ Xg 2.0 Crimp Tool (P/N 12516C)
