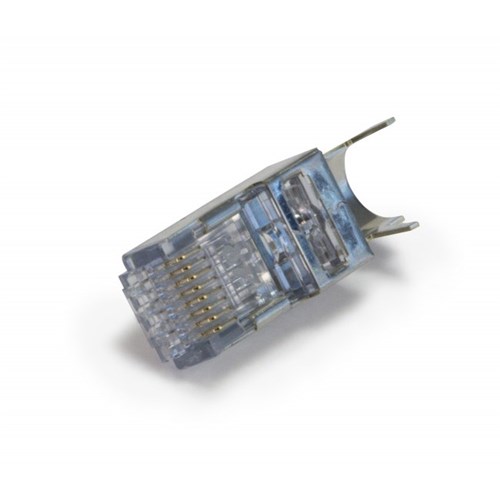

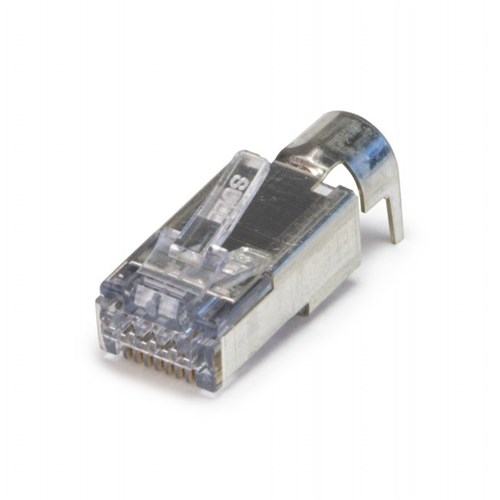

Platinum Tools ezEX48 Shielded RJ45 External Ground Connector - Single

Product Code: 105029

Key Features
  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Shielded 6/6A compliant
  • Insulation Diameter (Conductor) - Size range: 0.043” – 0.048” (1.09 –1.22mm)
  • Max Outer Diameter: 0.305” (7.75mm)
  • Solid or Stranded 23-22 AWG
  • 50 micron gold plated contacts
  • TAA, TIA, RoHS, UL & FCC compliant
  • Made in the USA
  • US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
$7.00 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Platinum Tools ezEX48 Shielded RJ45 External Ground Connector - Single

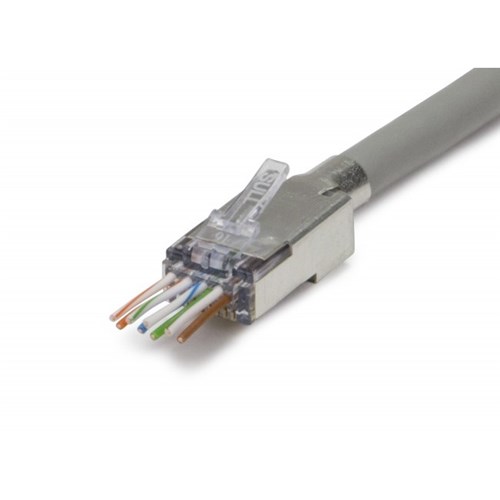

The ezEX-RJ45 connectors feature a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. These connectors are used with Cat5e/6/6A cabling and is  ecommended for PoE/PoE and Data applications. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C).

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • 50 micron gold plated contacts
  • Insulation Diameter (Conductor):
    Size range ezEX 38: 0.033"" – 0.038"" (0.84 – .97mm)
    Size range ezEX 44: 0.039"" – 0.044"" (1.0 – 1.12mm)
    Size range ezEX 48: 0.043"" – 0.048"" (1.09 – 1.22mm)
  • Max. Outer Diameter:
    Unshielded: 0.290"" (7.36mm)
    Shielded: 0.305"" (7.75mm)
  • Solid or Stranded 24 thru 22 AWG
  • RoHS, UL, TIA, TAA, & FCC compliant
  • Made in the USA
