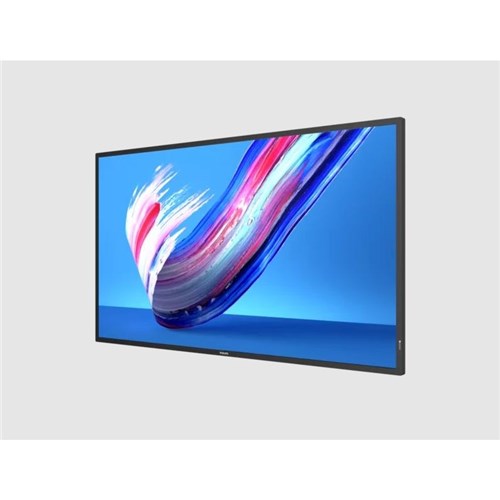

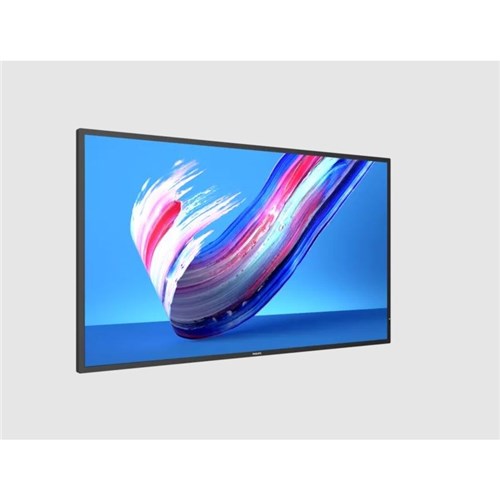

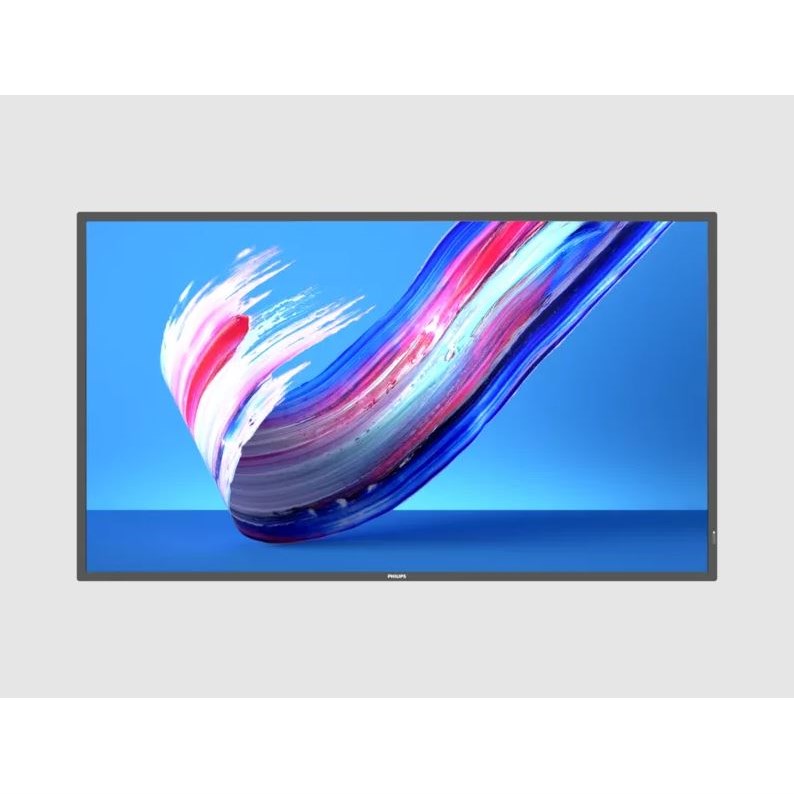

Philips 86 inch Q Series 4K 18/7 400nit Android Professional Display

Product Code: PHL 86BDL3650Q

Key Features
  • 86"
  • Direct LED Backlight
  • Ultra HD
$4,148.57 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Philips 86 inch Q Series 4K 18/7 400nit Android Professional Display

Stand out from the crowd

Inform and enthral with a Philips Q-Line 4K Ultra HD digital display. This reliable, easy-to-install, Android powered signage solution is Wave-ready for remote management, putting you in full control, any time, anywhere.

Connect and control your content via the cloud

Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlists.

FailOver. Ensure your display never goes blank

Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content on screen in the unlikely event of an input source or application failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection.

Easily schedule content from USB or internal memory

Easily schedule content to play from USB or from internal memory. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.

Optional Interact for wireless screen share

Wirelessly screen share using your existing Wi-Fi network to instantly and securely connect devices, or use our optional HDMI Interact dongle to cast directly onto the screen without connecting into the secured network.

Android SoC processor. Native and web apps

Powered by our Android 10 SoC platform, these hard-working Philips professional displays are optimised for native Android apps, and you can install web apps directly onto the display too. Flexible and secure, ensuring display specs stay up to the moment for longer.

Catch the Wave for revolutionary results

Unlock the power, versatility and intelligence inside your Philips Q-Line displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and set-up, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saving you time, energy and environmental impact.

Warranty

We offer a 3 year onsite warranty via 3rd party on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Picture/Display
Diagonal screen size (metric) 217.4  cm
Diagonal screen size (inch) 85.6  inch
Panel resolution 3840 x 2160
Optimum resolution 3840 x 2160 @ 60 Hz
Brightness 400 cd/m²
Contrast ratio (typical) 1200:1
Dynamic contrast ratio 500,000:1
Response time (typical) 8 ms
Aspect ratio 16:9
Viewing angle (horizontal) 178  degree
Viewing angle (vertical) 178  degree
Pixel pitch 0.4935 x 0.4935 mm
Display colors 1.07 Billion
Panel technology IPS
Picture enhancement 3/2 - 2/2 motion pull down
  Dynamic contrast enhancement
  Progressive scan
Operating System: Android 10
Haze 25%
Connectivity:
Video input HDMI 2.0 (x2)
  USB 2.0 (x2)
  DVI-I (x1)
  USB 3.0 (x1)
Audio input 3.5 mm jack
Audio output 3.5 mm jack
External control RJ45
  RS232C (in/out) 2.5 mm jack
  IR (in/out) 3.5 mm jack
Other connections micro SD
  OPS
Convenience:
Energy saving functions Smart Power
Tiled Matrix Up to 3 x 3
Keyboard control Lockable
  Hidden
Network controllable RS232
  RJ45
Signal loop through RS232
  IR Loopthrough
Placement Landscape (18/7)
  Portrait (18/7)
Remote control signal Lockable
Ease of installation Smart insert
Dimensions:
Set Width 1929.0  mm
Set Height 1100.0  mm
Set Depth 69.5mm(D@wall mount) / 91.8mm(D@handle)  mm
Bezel width 15.5 mm (Even bezel)
VESA Mount 600 mm x 400 mm, M8
Product weight 49.06 kg
Operating conditions:
Temperature range (operation) 0 ~ 40  °C
Temperature range (storage) -20 ~ 60  °C
MTBF 50,000  hour(s)
Altitude 0 ~ 3000 m
Humidity range (operation)[RH] 20 ~ 80% RH (No condensation)
Humidity range (storage) [RH] 5 ~ 95% RH (No condensation)
Power:
Mains power 100 - 240V~, 50/60Hz
Standby power consumption <0.5 W
Consumption (Max) 540 W
Consumption (Typical) 320 W
Power Saving Features Smart Power
Energy Label Class G
Sound:
Built-in speakers 2 x 10W RMS
Accessories:
Included accessories IR sensor cable (1.8 m) (x1)
  RS232 daisy-chain cable
  Philips logo (x1)
  AC Power Cord
  AC Switch Cover
  Quick start guide
  Cable clip (x2)
  Remote Control & AAA Battries
  HDMI cable (1.8 m) (x1)
  RS232 cable
  USB Cover (x1)
Internal Player:
CPU Quad Core Cortex A55
GPU G52 MC1
Memory 16GB
  3GB DDR
