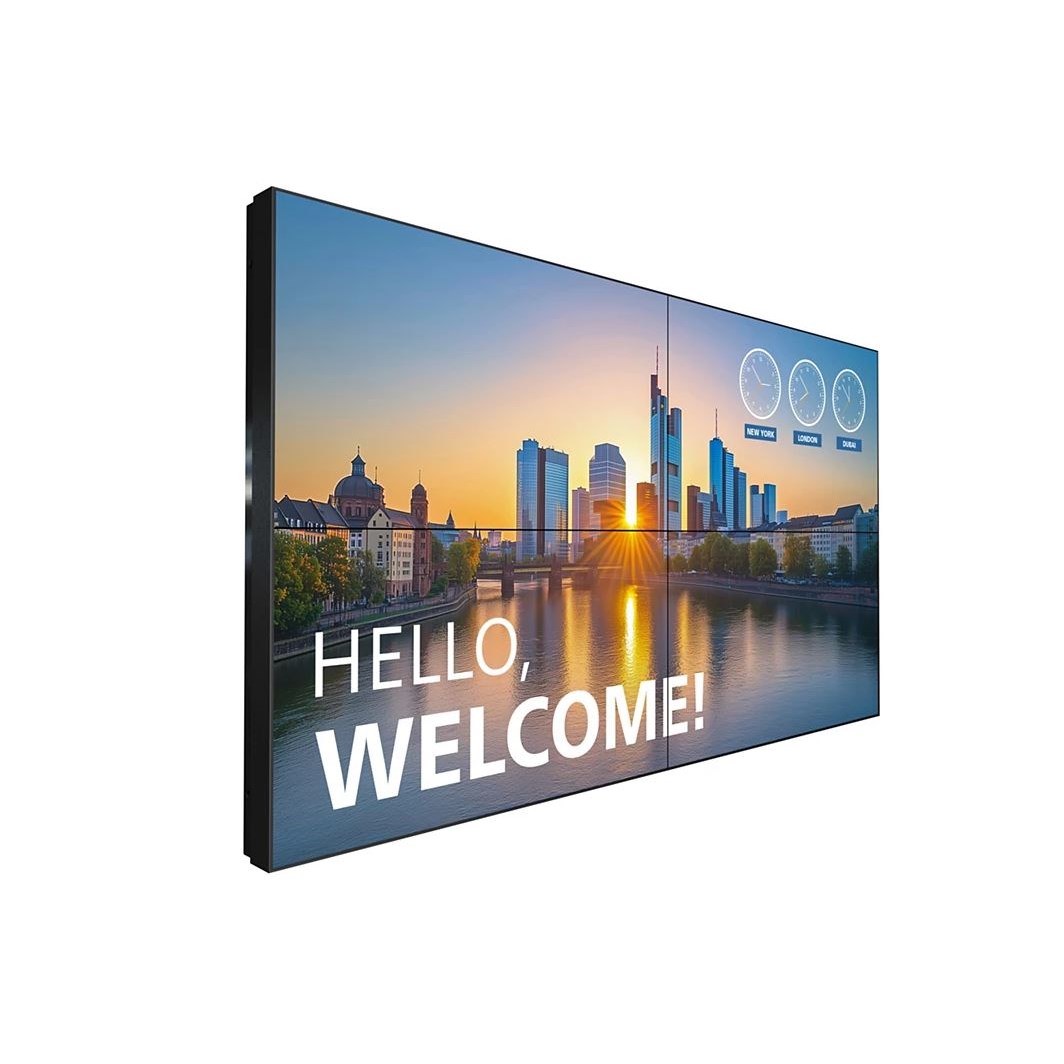

Philips 55 inch X Series FHD 500nit 1.8mm Bezel to Bezel Professional Video Wall Display with Direct LED Backlight

Product Code: PHL 55BDL3305X

Key Features
  • 55"
  • Direct LED Backlights
  • Full HD
  • 500cd/m²
$2,995.96 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Philips 55 inch X Series FHD 500nit 1.8mm Bezel to Bezel Professional Video Wall Display with Direct LED Backlight

Captivate and connect

The Philips Videowall 3000 is designed for 24/7 operation and engages customers with its dynamic, immersive content. The CMND platform simplifies the management of content, while FailOver ensures enhanced reliability and peace of mind.

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you’re in charge of one screen or 100.

Add Android processing power with an optional CRD50 module

Embed an Android System-on-Chip (SoC) in your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

Full HD monitors. Brilliant images. Clear contrast

Boost image quality with Pure Colour Pro. Delivering higher luminance through custom colour temperature settings and advanced gamma calibration, content looks crisper and more radiant for stunning realism with a visual pop.

OPS slot allows for PC embedding without cabling

Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Tiling mode. Create tiled 4K videowalls of any size

Connect two or more Philips professional displays to create a tiled videowall-without the need for external devices. A single player takes care of content, whether you have four screens or 40. 4K content is fully supported, and if you’re showing that content on four screens you get the best possible dot-by-dot resolution.

Warranty

We offer a 3 year onsite warranty via 3rd party on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Picture/Display
Diagonal screen size

54.5 inch / 138.7 cm

Aspect ratio

16:9

Panel resolution

1920x1080p

Pixel pitch

0.63 x 0.63 mm

Optimum resolution

1920 x 1080 @ 60 Hz

Brightness

500  cd/m²

Display colors

16.7 M

Contrast ratio (typical) 1200:1
Dynamic contrast ratio

500,000:1

Response time (typical)

8  ms

Viewing angle (horizontal)

178  degree

Viewing angle (vertical)

178  degree

Haze

25%

Connectivity
Audio output

3.5 mm Mini Jack (x1)

Video input

Display Port1.2 (x1)



DVI-D (x1)



HDMI 2.0 (x2)



VGA (Analog D-Sub) (x1)

Audio input

3.5 mm mini jack (x1)

Other connections

OPS



USB 2.0 (x1)



Thermal sensor

Video output

DisplayPort 1.2 (x1)

External control

IR (in) 3.5 mm jack



LAN RJ45 (x2)

Convenience
Placement

Landscape (24/7)



Portrait (24/7)

Tiled Matrix

Up to 15 x 15

Screen saving functions

Pixel Shift, Low Bright

Signal loop through

DisplayPort



RJ45

Ease of installation

Carrying Handles



Smart Insert

Energy saving functions

Smart Power

Network controllable

LAN (RJ45)

Sound
Built-in speakers 2 x 10W (RMS)
Power
Consumption (Typical)

164  W

Consumption (Max)

228 W

Standby power consumption

0.5W

Energy Label Class

G

Dimensions
Set dimensions (W x H x D)

1211.3 x 682.1 x 97.8 mm (D@WallMount) / 97.8 mm (D@Handle) mm

Smart Insert mount

100mm x 100mm and 100mm x 200mm, 6xM4xL6

Product weight

28.7  kg

Wall Mount

400 x 400 mm, M6

Set dimensions in inch (W x H x D)

47.69 x 26.85 x 3.85 (D@WallMount) / 3.85 (D@Handle) inch

Bezel width (combined)

<3 mm

Accessories
Included Accessories

Gap pad x3



IR sensor cable (1.8 m) (x1)



Quick start guide (x1)



Remote control & AAA batteries



RJ45 / RS232 converter



Wire Clamper (x3)



Power cord



DP cable (x1)



RJ45 cable (x1)



Edge alignment pin (x2)



Kit-1 (x1)



Kit-2 (x2)
