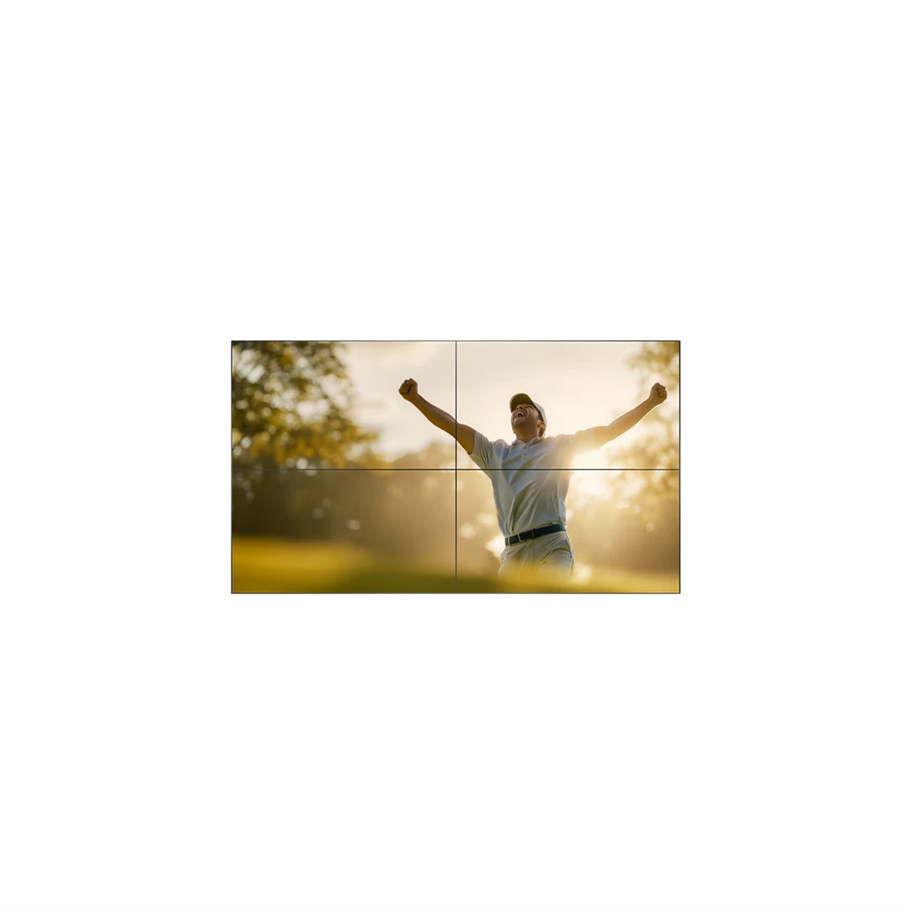

Philips 55 inch X Series FHD 0.88mm Bezel to Bezel 700nit Professional Video Wall Display

Product Code: PHL 55BDL8107X

Key Features

Impressive videowall

Take presentations and corporate branding to the next level. The Philips X-Line Videowall display brings your content to life to ensure absolute audience engagement in every setting with Pure Colour Pro.

  • 55"
  • Direct LED Backlight
  • Full HD
  • 700cd/m²
$4,404.52 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Philips 55 inch X Series FHD 0.88mm Bezel to Bezel 700nit Professional Video Wall Display

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

OPS slot allows for PC embedding without cabling

Integrate a full-power PC or Android powered CRD52 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Add Android processing power with an optional CRD52 module

Embed an Android System-on-Chip (SoC) into your Philips Professional Display. The optional CRD52 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).

Energy-saving automatic backlight control

Tiling mode. Create tiled 4K videowalls of any size

Connect two or more Philips professional displays to create a tiled videowall — without the need for external devices. A single player takes care of content, whether you have four screens or 40. 4K content is fully supported and if you’re showing that content on four screens you get the best possible dot-by-dot resolution.

Ultra-narrow bezels. For distraction-free images

Boost image quality with Pure Colour Pro. Delivering higher luminance through custom colour temperature settings and advanced gamma calibration, content looks crisper and more radiant for stunning realism with a visual pop.

Warranty

We offer a 3 year onsite warranty via 3rd party on this product from its date of purchase. For more info on our support, repair and warranty, download our Warranty Guide here.

Category

Specification

Value

Picture/Display Diagonal screen size (metric) 138.7 cm
Diagonal screen size (inch) 54.5 inch
Aspect ratio 16:9
Panel resolution 1920x1080p
Pixel pitch 0.63 x 0.63 mm
Optimum resolution 1920 x 1080 @ 60 Hz
Brightness 700 cd/m²
Display colors 16.7M
Contrast ratio (typical) 1200:1
Dynamic contrast ratio 500,000:1
Response time (typical) 8 ms
Viewing angle (horizontal) 178 degree
Viewing angle (vertical) 178 degree
Haze 25%
Connectivity Audio output 3.5 mm Mini Jack (x1)
Video input DVI-D (x1), VGA (Analog D-Sub) (x1), Display Port1.3 (x1), HDMI 2.0 (x2)
Audio input 3.5 mm mini jack (x1)
Other connections OPS, USB 2.0 (x1), Thermal sensor
Video output DisplayPort 1.3 (x1)
External control IR (in) 3.5 mm jack, LAN RJ45 (x2), Signal loopthrough RJ45 (x2)
Convenience Placement Landscape (24/7), Portrait (24/7)
Tiled Matrix Up to 15 x 15
Screen saving functions Pixel Shift, Low Bright
Signal loop through DisplayPort, RJ45
Ease of installation Carrying Handles, Smart Insert
Energy saving functions Smart Power
Network controllable LAN (RJ45)
Sound Built-in speakers 2 x 10W (RMS)
Power Standby power consumption 0.5 W
Energy Label Class G
Consumption EEI lot5 134W
Supported Display Resolution Computer formats 640 x 480 (60, 72, 75Hz), 720 x 400 (70Hz), 800 x 600 (60, 75Hz), 1024 x 768 (60, 75Hz), 1280 x 768 (60Hz), 1280 x 800 (60Hz), 1280 x 960 (60Hz), 1280 x 1024 (60Hz), 1360 x 768 (60Hz), 1366 x 768 (60Hz), 1600 x 1200 (60Hz), 1920 x 1080 (60Hz)
Video formats 720p (50, 60Hz), 1080i (25, 30Hz), 1080p (50, 60Hz), 2160P (50, 60Hz via HDMI/OPS/DP)
Dimensions Smart Insert mount 100mm x 100mm, 6xM4xL6
Set Width 1211.1 mm (47.68 inch)
Set Height 681.9 mm (26.85 inch)
Set Depth 95.3 mm (D@WallMount) / 94.3 mm (D@Handle) [3.75 / 3.71 inch]
Product weight 23.8 kg
Wall Mount 400mm x 400mm, M6
Bezel width 0.44 mm + 0.44 mm
Operating Conditions Altitude 0 ~ 3000 m
Temperature range (operation) 0 ~ 40 °C
MTBF 50,000 hour(s)
Temperature range (storage) -20 ~ 60 °C
Humidity range (operation) 20 - 80% (without condensation)
Humidity range (storage) 5 - 95% (without condensation)
Accessories Included Gap pad x3, IR sensor cable (1.8 m) (x1), Quick start guide, Remote control & AAA batteries, RJ45/RS232 converter, Power cord, DP cable (x1), RJ45 cable (x1), Edge alignment pin (x2), Edge alignment kit (x1)
Optional Edge finishing kit top/bottom (EFK5539), Edge finishing kit left/right (EFK5569)
Miscellaneous On-Screen Display Languages Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese
Warranty 3 years warranty
Regulatory approvals CE, FCC (Class A), RoHS, CB
