AMX PC1 - Power Controller 10 A (110 VAC only)

Product Code: AMX FG670

Key Features
The PC1 control provides one switched outlet for 120 VAC power control with up to 1200 W of equipment power.
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

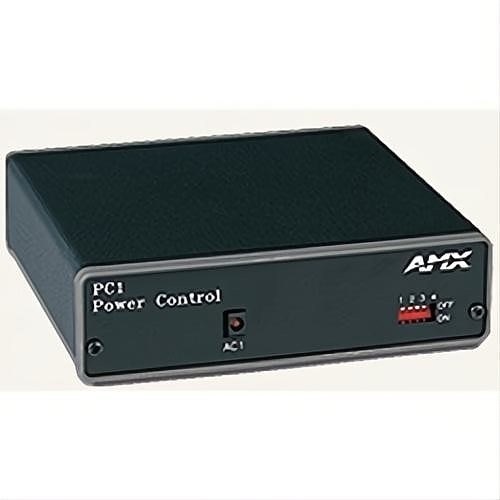

AMX PC1 - Power Controller, 10 A (110 VAC only)

The PC1 control provides one switched outlet for 120 VAC power control with up to 1200 W of equipment power.

Ideal for giving power control over devices that may not be easily controlled via Infrared or other control signal types.

Features

  • Front-panel on/off button with status LED
  • DIP switch to set closure mode
Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Dimensions (HWD)
  • 1 1/2" x 5 1/2" x 5 1/2" (3.8 cm x 14 cm x 14 cm)
  • RU: 1
Weight
  • 1 lb, 12 oz (793 g)
Power Requirements
  • Power Input: 105 to 125 VAC, 3 watts maximum (internal electronics)
  • Power Outputs: 1 switched 3-wire sockets, 120 VAC, 1,200 watts total
Control Ports
  • Either one latched or two momentary closures for discrete on and off, or one momentary closure for toggling on and off
  • Switched AC receptacle, 10 A at 120 VAC
Load Fuse Internal 10 A (load capacity)
Control Inputs Remote control contact and switch closure
Enclosure Material Metal with black matte finish
Type AC switched power control unit
Front Panel Components
  • AC1 power switch controls power to a switched socket. The LED in the pushbutton indicates that socket power is ON
  • DIP Switch: Controls the AC1 (and AC2) push button operating mode, depending on the setting of the switches
Rear Panel Components
  • AC Power Input: 3-conductor line cord providing 120 VAC power to the power control unit and to switched power sockets
  • Switched Power: Socket for control of external equipment having a total power load of 1,200 watts. An internal 10 A load fuse is provided (The PC2 has 2 power sockets)
  • Control: 4-pin captive-wire connector providing remote operation of the power control units. Terminals accept 24 12 AWG wire
Power cables 6 ft (1.83 m) cord with 3-wire grounded plug
FG Numbers FG670
