Whirlwind PB Series Passive Press Boxes 1-Line In 6-Mic Out

Product Code: WH PB06

Key Features

The PB Series expands mic outputs when used with line outs on PRESSPOWER 2 or PRESSMITE active press boxes or any time a line level feed is available.

$1,210.74 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

These passive units distribute one line level input to multiple mic level outputs*. Each output is transformer isolated, provides excellent interchannel isolation and is ground lifted to help eliminate noise problems. Whirlwind TRSP-2F transformers are used throughout.

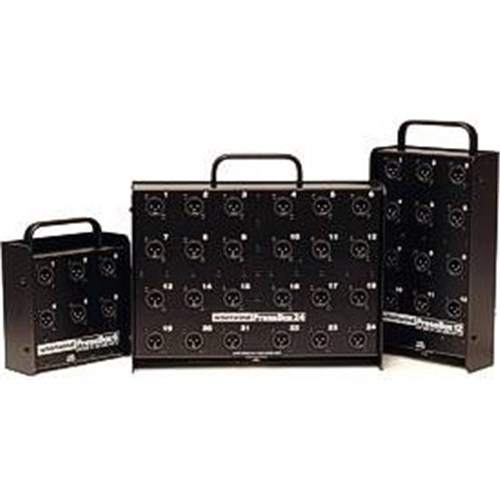

The boxes are constructed with rugged, cold-rolled steel. Available with 6, 12, or 24 outputs.

  • Input Impedance: 2k Ohms
  • Output Impedance: 150 Ohms
  • Operating Level: 0 dB input = -43 dB output
  • Channel-to-channel Isolation:
  • 65 dB between vertically adjacent channel pairs, 107 dB between non-vertically adjacent pairs

* Line level signal MUST be provided into these passive press boxes. A microphone directly into the input will not provide enough signal level for proper operation.

Dimensions (Including handle)
Model Length Width Depth
PB06 6.75" 5.5" 2.0"
PB12 11.0" 5.5" 2.0"
PB24 9.5" 11.25" 2.0"
Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
