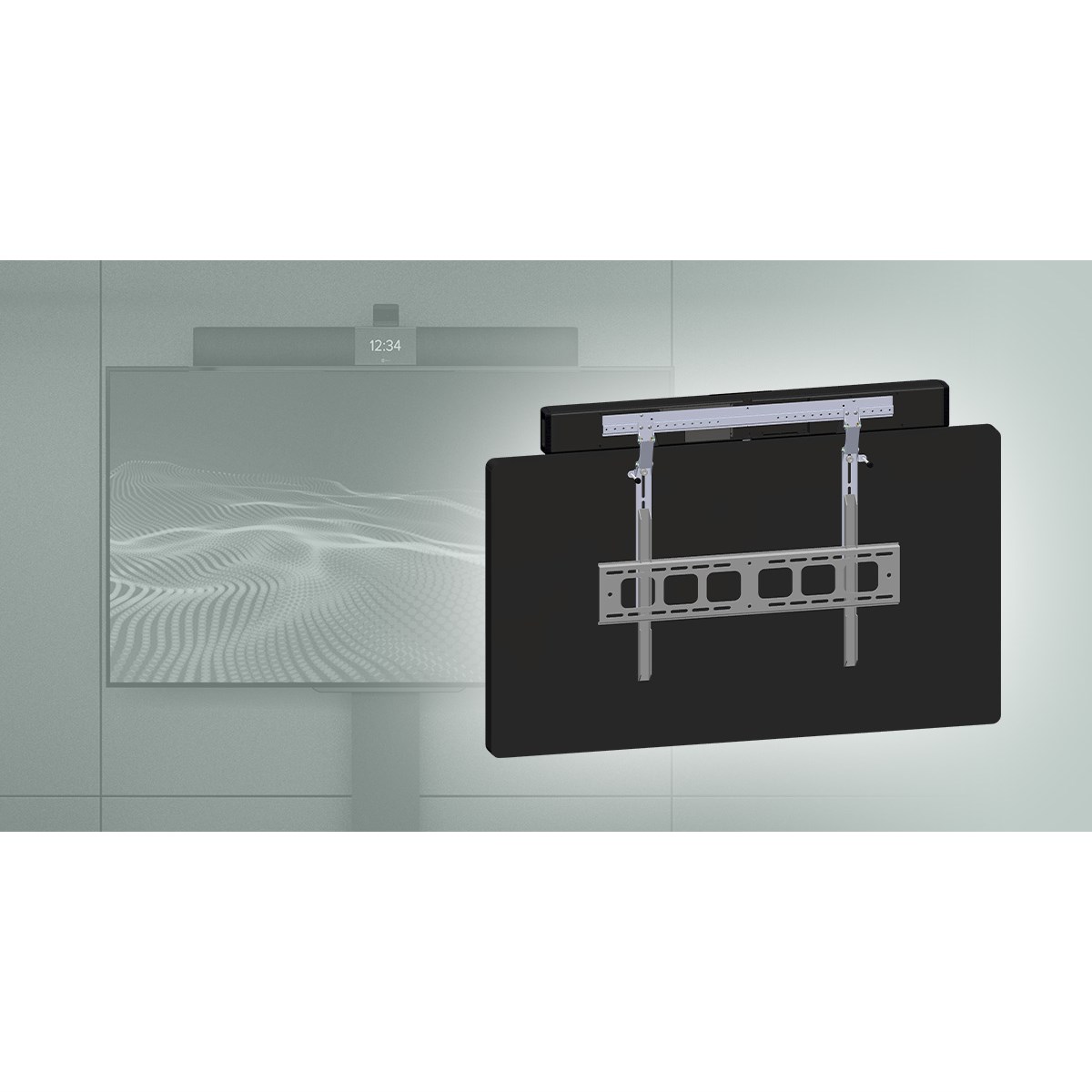

Nureva Display Mount for the HDL200
Brackets for installing the HDL200 on a display screen.
Supported VESA patterns
The HDL200 Display Mount is designed to fit most 55”-85” displays that accept VESA mounts meeting the following requirements:
- Horizontal spacing: 200 - 800 mm
- Top mounting: the top Vesa holes on the display must be within 413 mm from the top of the display
- Bottom mounting: the bottom Vesa holes on the display must be within 419 mm from the bottom of the display

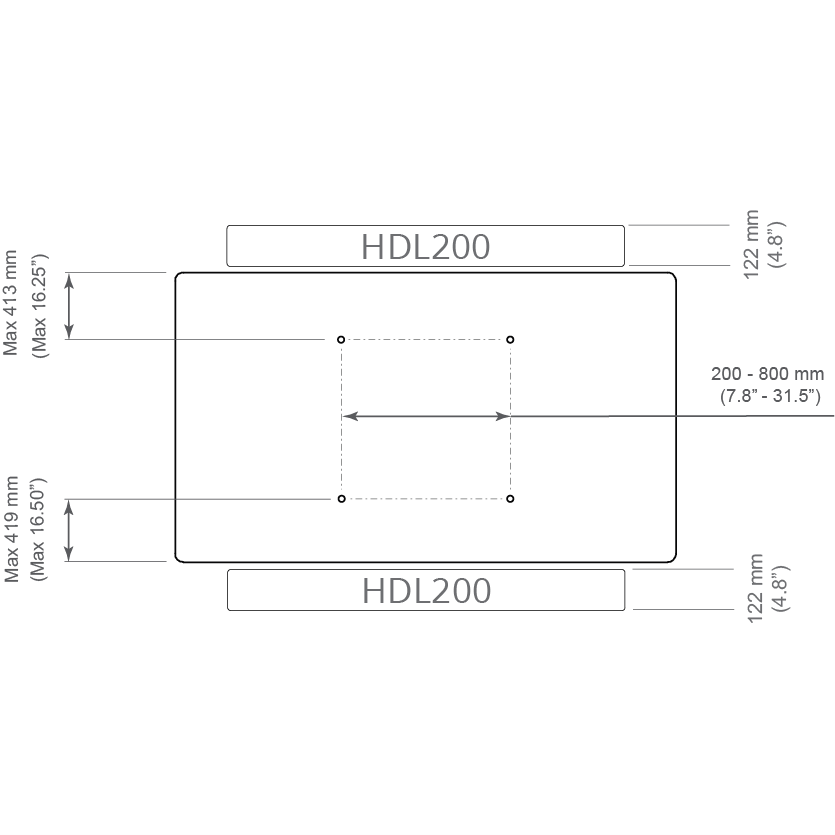

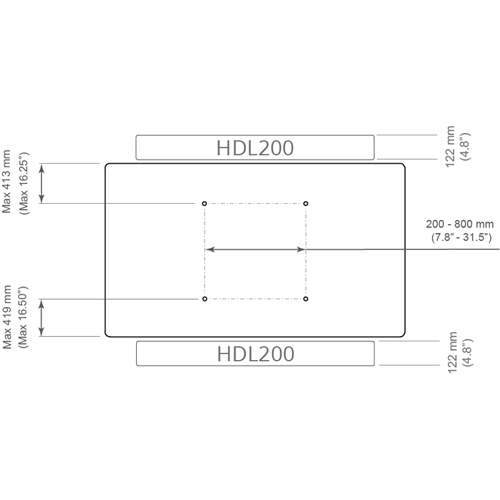

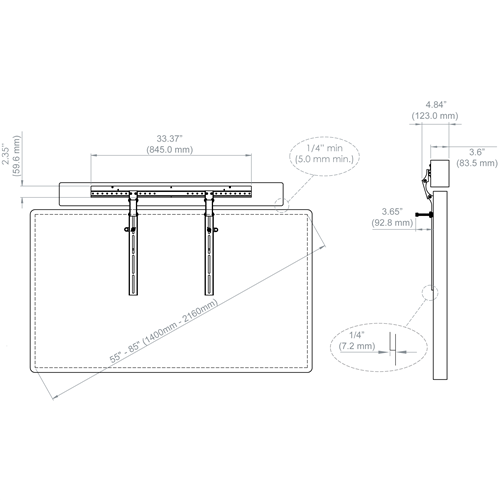

Please see diagram for product dimensions and VESA dimensions.
