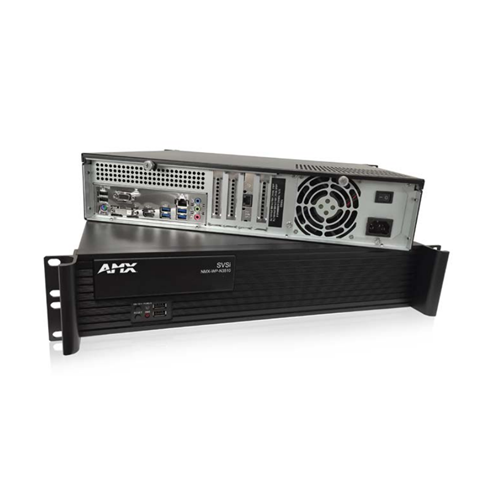

AMX NMX-WP-N3510 - Windowing Processor

Product Code: AMX FGN3510

Key Features
The SVSI NMX-WP-N3510 H.264 Multi-Channel Windowing Processor functions with the N3000 3121/3221 Series family of Video over IP Encoders and Decoders and are capable of handling multiple real-time H.264 streams
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

The NMX-WP-N3510 H.264 Multi-Channel Windowing Processor functions with the N3000 Series family of Video over IP Encoders and Decoders and are capable of handling multiple real-time H.264 streams. This rack-mount appliance accepts up to nine video streams as inputs from SVSI N3000 Series H.264 Encoders (or other third-party main- or high-profile H.264 streams) and outputs one windowed HD video stream for local viewing through an HDMI port or in streaming format to a remote hardware or software decoder.

The combined IP video stream transports H.264 compressed at various resolutions, providing an IT friendly solution for media distribution on the existing network. Digital signage, TV and PC content can be delivered in any combination for viewing on a single large display or a video wall through SVSI N3000 Decoders.

With the SVSI NMX-WP-N3510 H.264 Multi-Channel Windowing Processor, image configuration can be adjusted dynamically through a simple-to-use web interface. Images can be cropped, scaled, and positioned according to the stored presets or in any user-defined configuration. The web interface allows the user to position and stretch windows through drag-and-drop/resize or directly setting values. Common tools like "Snap & Grid" are available to help align window edges. Borders, backgrounds, presets, text overlays, mode and input streams can also be manipulated. A variety of presets make it easy to change the image configuration on the fly allowing switching between presets and switching between video streams within a preset. Just like the SVSI NMX-WP-N2510 Multi-Channel Windowing Processor, the SVSI NMX-WP-N3510 can be stacked to window more than nine H.264 streams to a single display.

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions (HWD) 3.5" x 17.25" x 15.5" (8.9 cm x 43.8 cm x 39.4 cm)
Signal Type Support Network video over Ethernet via RJ45
Video Input Resolutions Minimum resolution of 720x480p, Maximum horizontal resolution of 1920 or a vertical resolution of 1080. See Data Sheet for details.
Video Output Resolutions HD Up to 1080p60
Audio Format Support Encoding/Decoding: AAC audio
Communications Network Stream In/Out: Network Standards: MPEG-TS, RTP, RTSP
Front Panel Components ON/OFF button, Power LED, HDD LED. See Data Sheet for details.
Rear Panel Components One 120 Volt AC power input, 8-wire RJ45 female, 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port, HDMI/DVI digital video/audio output. See Data Sheet for details.
FG Numbers FGN3510
