  • NETGEAR M4350-12X12F 24-port Half Width Layer 3 Fully Managed Switch with 12 x 10G/Multi-Gig & 12 x 10GBASE-X SFP+

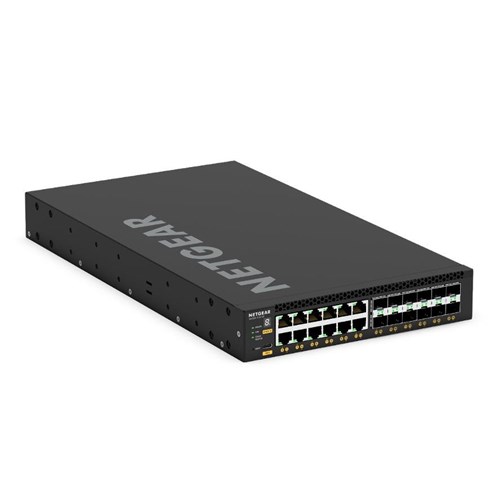

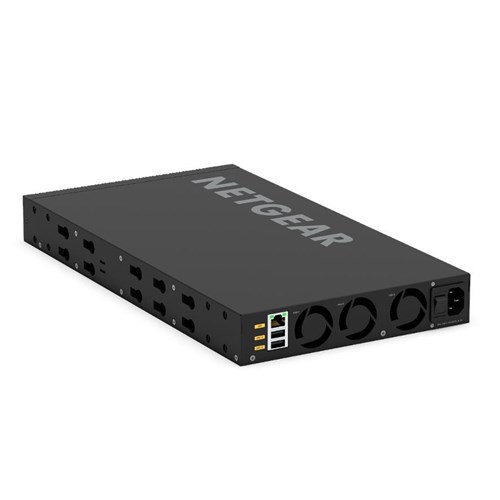

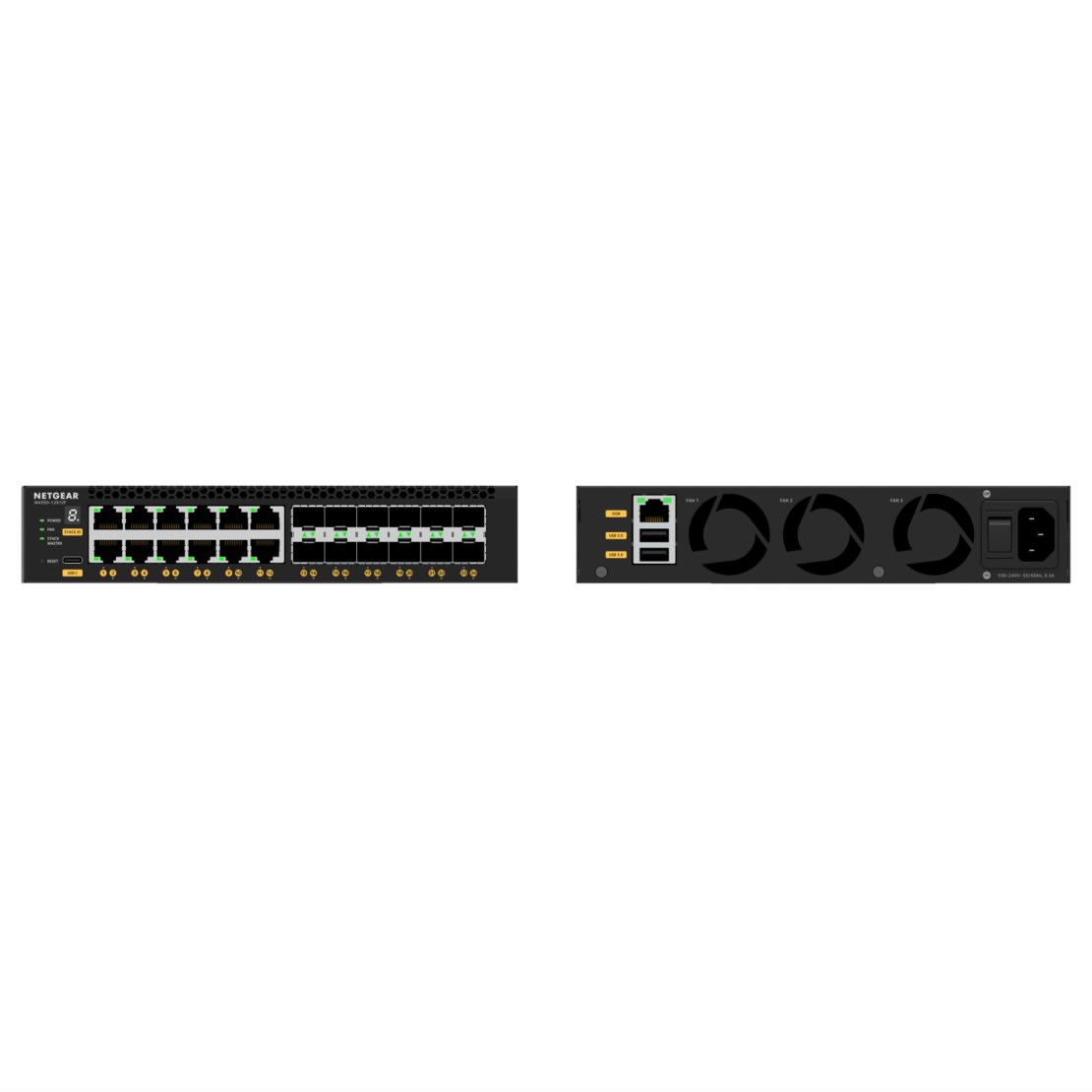

NETGEAR M4350-12X12F 24-port Half Width Layer 3 Fully Managed Switch with 12 x 10G/Multi-Gig & 12 x 10GBASE-X SFP+

Product Code: NGR XSM4324-100AJS

Key Features
  • 12 10G/Multi-Gig ports, and 12 10GBASE-X SFP+ ports.
  • 240W internal power supply.
  • Half-width form factor enables one or two switches in a single rack space for redundant top-of-rack.
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
  • Layer 3 feature set includes static, policy-based, and dynamic routing.
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations.
  • NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
  • Dimensions: 220x400x43.2 mm
  • Weight: 4.3Kg (9.48 lb)
$6,599.00 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

NETGEAR M4350-12X12F 24-port Half Width Layer 3 Fully Managed Switch with 12 x 10G/Multi-Gig & 12 x 10GBASE-X SFP+

Groundbreaking AV GUI - A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant - NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design - Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration - Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

Fast, Easy Configuration for AV Pros - A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Focus on the Event, Not Fan Noise - Most models have quiet mode which greatly reduces fan noise.

Designed for AV Over IP Right Out of the Box - With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Maximise Performance with Pro Wifi Access Points - Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.

What's In The Box:

  • 1 x M4350-12X12F (XSM4324)
  • 1 x Power cord(s)
  • 1 x Console USB Type-C cable
  • 1 x Switch rack-mounting standard bracket set
  • 1 x Switch set of longer brackets for recessed mounting
  • 2 x Switch pairing kit for two half-width M4350 switches in a single rack space
  • 4 x Rubber footpads for tabletop installation
  • 1 x Installation guide
Warranty

We offer a Limited Lifetime warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Width

220mm

Depth

400mm

Height

43.2mm

Weight

4.3kg (9.48lb)

Primary Port Speed

10 Gigabit / Multi-Gig

Number of Ports

24 (12 x 10G/Multi-Gig, 12 x 10G SFP+)

PoE Ports / Budget

N/A

IGMP Support

Enhanced (NETGEAR IGMP Plus™)

Jumbo Frame Support

Yes, up to 12kb

AVB Support

Yes, included

Acoustics

Quiet Mode 34.3dB@25ºC

Power Consumption

95.8W/300.81Btu/hr

  Standby without any port connection: 34W/106.76Btu/hr
