  • NETGEAR M4300-16X 16-port PoE+ Stackable Layer 3 Fully Managed Switch with 8 x 10GBASE-T/MultiGig (half width) and 600W PSU

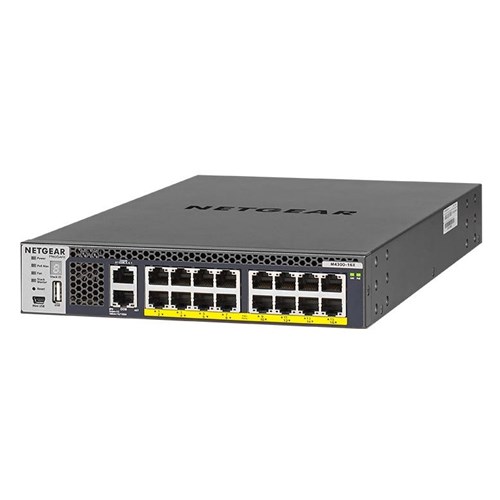

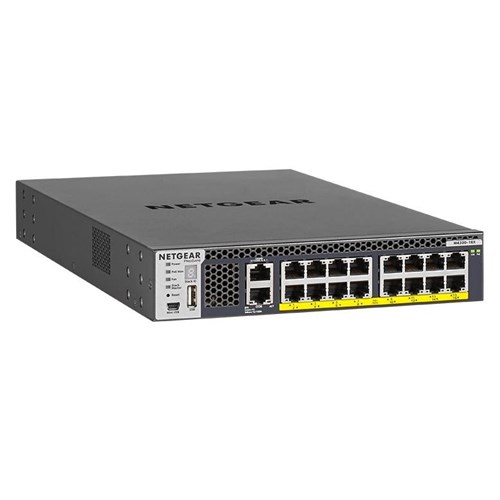

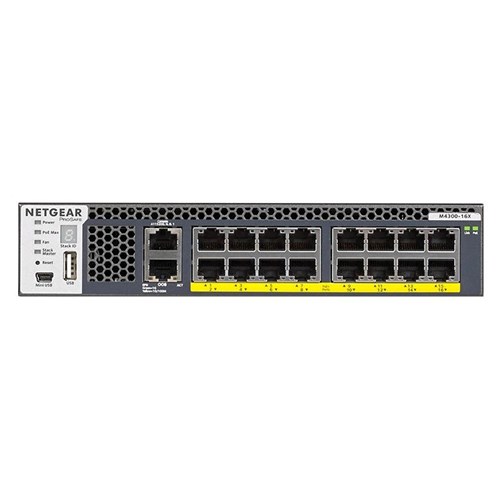

NETGEAR M4300-16X 16-port PoE+ Stackable Layer 3 Fully Managed Switch with 8 x 10GBASE-T/MultiGig (half width) and 600W PSU

Product Code: NGR XSM4316PB-100AJS

Key Features
  • 16-port 100M/1G/2.5G/5G/10GBASE-T with PoE+ (copper RJ45)
  • 320Gbps non-blocking fabric across 16 ports
  • Out-of-band 1G Ethernet management port
  • Mini-USB and RJ45 RS232 console ports and USB storage port
  • Full L3 feature set and non-stop forwarding (NSF) stacking
  • Half-width form factor with one- and two-unit rack mount kit
  • Two half-width switches can be installed in a single rack space for redundant top-of-rack

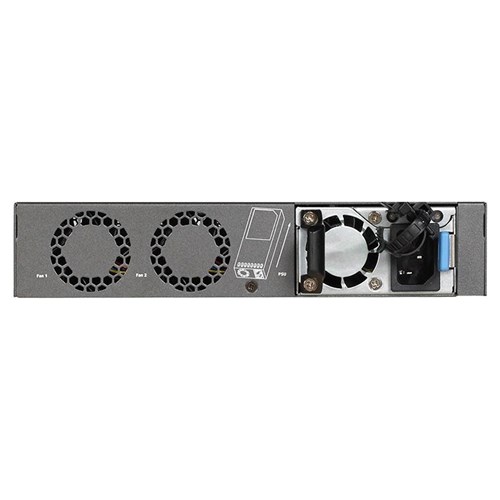

  • (XSM4316PB) Ships with one modular APS600W PSU in its power supply slot
  • Low acoustics (36dB with APS299W, 35dB with APS600W, @25°C / 77°F )
$6,599.00 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

NETGEAR M4300-16X 16-port PoE+ Stackable Layer 3 Fully Managed Switch with 8 x 10GBASE-T/MultiGig (half width) and 600W PSU



RELIABILITY:

High Availability (HA) - Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack

Multi-Resiliency - Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities

PVST+ Interoperability - Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)

Link Dependency - Enables or disables ports based on link state of different ports

Advanced IPv4/IPv6 security - Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation

600W PSU - Ships with 600W PSU APS600W installed. All (16) 10G/Multi-gig ports can provide 30W of PoE+ power (500W budget).  (Also available with smaller 299W PSU APS299W)



EASY TO MANAGE:

Half-Width ToR - Combine 2 half-width models in a single rack space for redundant Top-of-Rack

Simple GUI - Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface

Flexible & Efficient - Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.

Mix & Match Stacking - Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit

Room to Grow - With PoE+, plug and play ports, and hot swap, you're ready to grow whenever you need to.

Industry Standard - SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)



READY FOR AN AV OVER IP:

Pre-configured for Out-of-Box Multicast/IGMP - Just plug in the switch and play!

No Delay - Non-Blocking Fabric for Near-Zero Switch Latency

NETGEAR IGMP Plus™ - Prevent network flooding with effortless multicast implementation of Layer 2 Multicast



Designed for AV Pros - NETGEAR M4300 Switches

What is AV-over-IP?

Tech Tips: How to Create a Layer 2 VLAN on an M4300 switch:

How to Log in to the NETGEAR M4300 Switch Through the Command Line:

How to Log in to the NETGEAR M4300 Switch Using the Web GUI:

Warranty

We offer a Limited Lifetime warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

Hardware Features:

  • Power over Ethernet PoE : 16x 10GBASE-T PoE+. Fully provisioned for up to 30 Watts Per Port. 500 Watts Total PoE+ Budget
  • Hardware Specifications : 16 Ports RJ45 PoE+ Multi-Gigabit 100M/ 1G / 2.5G / 5G / 10G. 1 Modular Bay with 1 600W Modular PSU included APS600W. 1-unit 1U / 2-unit 1U Rack Mount (Included). 320 Gbps Switching Fabric. Fixed Fan Front-to-Back 35db
  • Management Options : Ethernet: Out-of-band 1G port (Back).
  • Console: RJ45 RS232 (Back). Console: Mini-USB (Front)
  • Storage: USB (Front)
  • Single-pane-of-glass NMS300 management platform with mass-configuration support
  • Dual firmware image and configuration file for updates with minimum service interruption

Software Features:

  • Table Sizes : 16K MAC 888ARP / NDP
  • Up to 480 Gbps
  • Throughput up to 357 Mpps
  • Application Static Routing- 64v4 / 64v6 RIP : 512 OSPF: 512
  • Latency : 2.76us 10G RJ45
  • IP Multicast : 96 IPv4 / 32 IPv6
  • Multicast IGMP Membership : 2k IPv4 / IPv6
  • M4300 Series features : License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM
  • VLANS: 4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools
  • Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models
  • Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)
  • PoE+ Options (30W per port) with hot swap & redundant PSUs options
