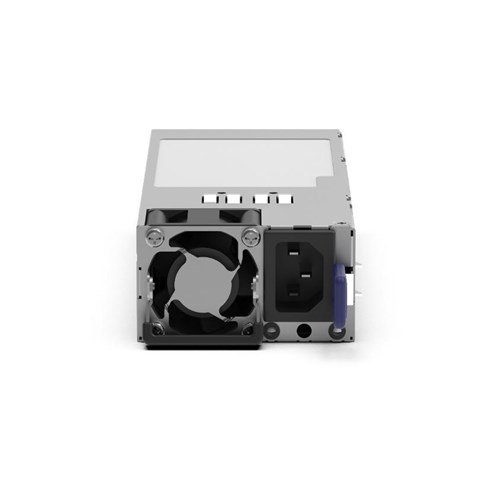

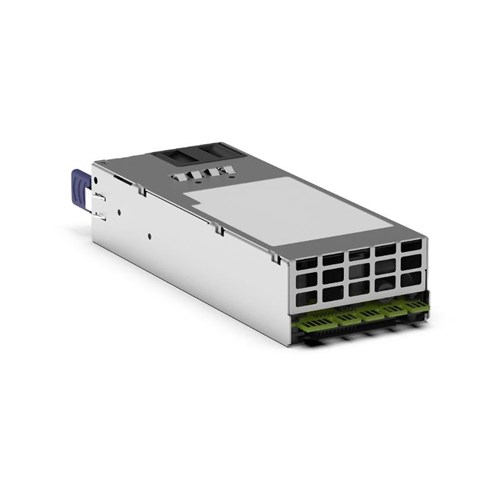

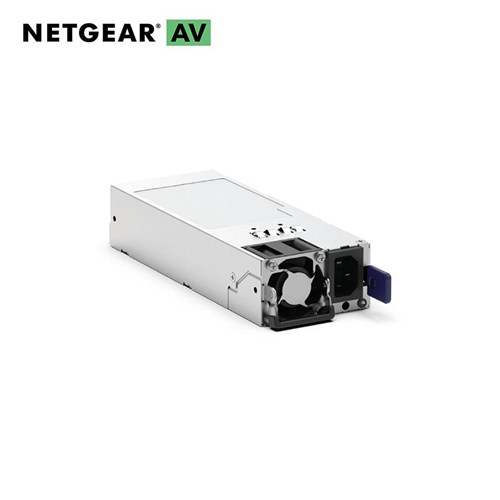

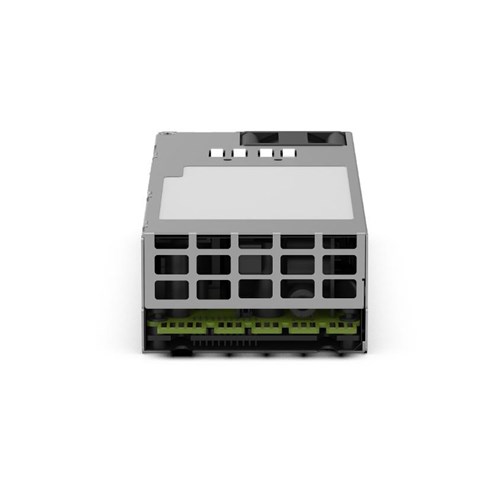

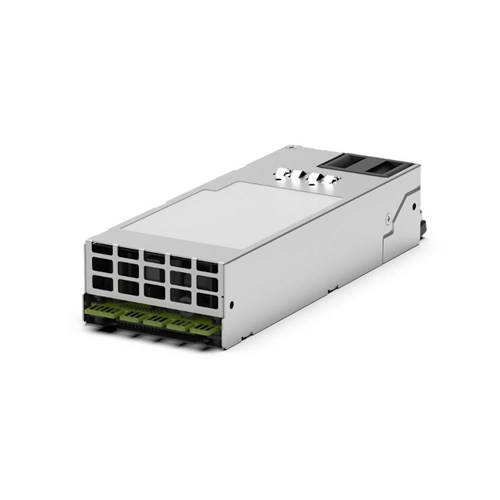

NETGEAR 350W Modular Power Supply Unit for M4350 Series Switches
The APS350W, APS600Wv2, APS920W, and APS2000W auxiliary power supplies (APSs)
are supported in the following M4350 series switch models:
- M4350-24F4V (SKU number XSM4328FV)
- M4350-24X4V (SKU number XSM4328CV)
- M4350-44M4X4V (SKU number MSM4352)
- M4350-24G4XF (SKU number GSM4328)
- M4350-48G4XF (SKU number GSM4352)
Each APS provides two bi-colored LEDs (DC OK LED and AC OK LED), which work together to indicate the power supply status, as described in the following table.
DC OK LED (Left LED) | AC OK LED (Right LED) | Condition |
Solid green | Solid green | DC output is present and voltage is good |
Blinking green | Solid green | AC power is present but DC output is for standby only |
Solid Red | Solid green | A power supply failure occurred and the APS will be shut down |
Solid green | Blinking red | Loss of AC power occurred or AC power is not present |
