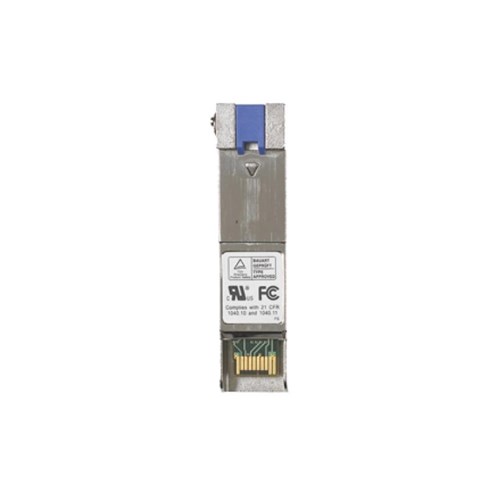

NETGEAR 1000BASE-LX SFP Transceiver- Single Mode LC GBIC
SFP 1G Ethernet Fiber Module, up to 10km distance for Managed Switches
The 1000Base-X SFP transceiver module provides full-duplex 1000Mbps Ethernet operation in each direction for NETGEAR managed switches.
The switch automatically detects the module, so you can simply plug it into an available module slot.
The ProSAFE® GBIC Module is a LC duplex connector and meets SFP GBIC standard for use with any SFP GBIC compliant slot.
The AGM732F is hot pluggable 3.3V Small-Form-Factor transceiver module designed expressly for high-speed communication applications that require rates of up to 1.25Gbit/sec. It is compliant
with the Gigabit Ethernet standards, as well as the SFP Multisource Agreement (MSA).
The AGM732F transceivers provide with the LC receptacle that is compatible with the industry standard LC connector. The transceiver is also compatible with industry standard RFT connector and cage.
The post-amplifier of the AGM732F also includes a LOS (Loss Of Signal) circuit that provides a TTL logic-high output when an unusable optical signal level is detected.
The AGM732F transceiver is a Class 1 eye safety product. The optical power levels, under normal operation, are at eye safe level.
Applications:
- Gigabit Ethernet
- Fibre channel
- Switch to Switch interface
- Switched backplane applications
- File server interface
Performance:
- Data Link up to 10km in 9/125μm Single Mode Fiber
