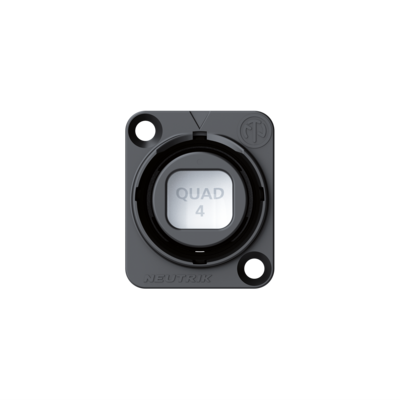

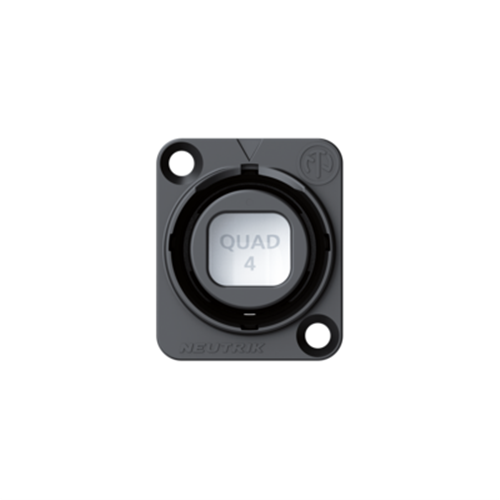

Neutrik Optcon Quad Chassis Connector

Product Code: NU-NO4FDW-A

Key Features
  • Rugged 4-channel Point-to-Point multichannel routing solution
  • Laser protected metal shutter seals dust proof with two-component rubber gasket
  • IP65 ingress protection in mated condition with SCDP-*

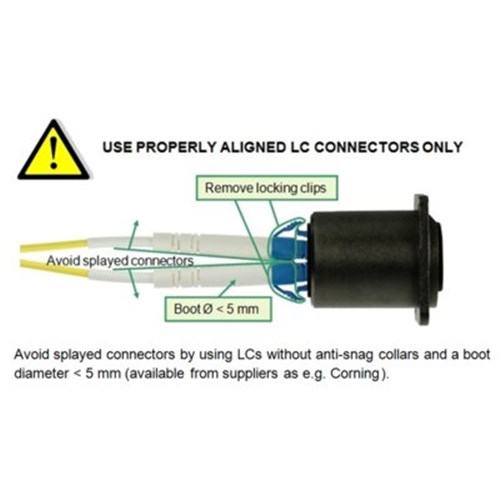

  • Accommodates standard LC connectors on the rear for cost effective and simple installations
  • Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard
    • Multi mode – black
    • Single mode PC – blue
    • Single mode APC – green
$221.80 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-2 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

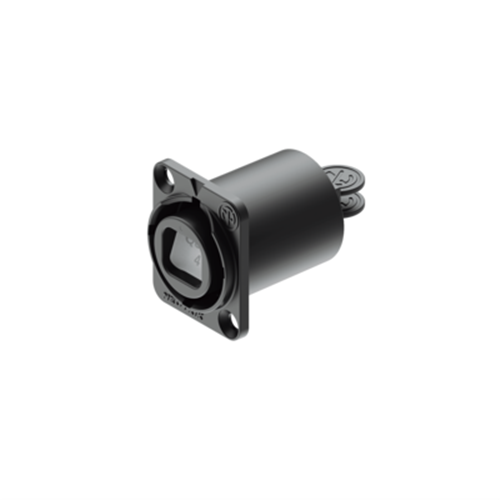

Neutrik Optcon Quad Chassis Connector

Chassis connector, black chromium plating, front panel mount, IP65 ingress protection in mated condition with SCDP-*.

The chassis connector acts as a "feed-through" allowing simplified installations by connecting four conventional LCs on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.

Warranty

We offer a 180 days warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Product
Title NO4FDW-A
Gender female
Mechanical
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 5000 mating cycles
Wiresize
Locking device Push-Pull
Mounting direction Front mounting
Chassis shape D
Material
Insert Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Environmental
Temperature range -40 °C to +75 °C
Protection class IP65 in mated condition in combination with SCDP-*
Optical
Insertion loss < 0.5 dB / connection
