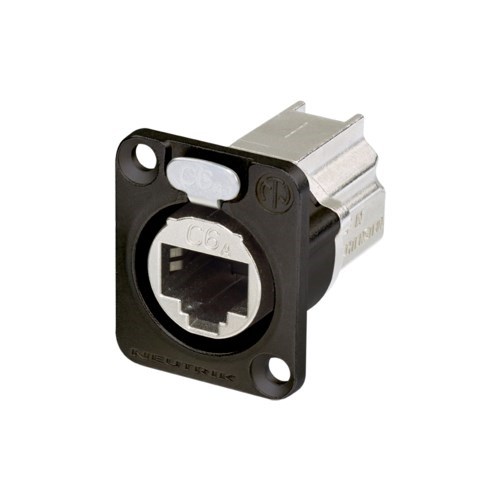

Neutrik D-Size Panel Receptacle Shielded Feedthrough Black Housing

Product Code: NU-NE8FDX-P6-B

Key Features

Features

  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • Rugged latch lock system million fold proven
  • Shielded system - high noise immunity and EMI protection
  • PoE compliant according to 802.3bt Type4
  • Intermateable with the existing etherCON CAT5 range
$40.96 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Neutrik D-Size Panel Receptacle Shielded Feedthrough Black Housing

NE8FDX-P6-B

D-shape CAT6A panel connector, shielded, feedthrough, black chromium housing

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Warranty

We offer a 180 days warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Product

Title NE8FDX-P6-B
Gender female

Electrical Specifications

Dielectric strength 1 kVdc
Insulation resistance > 0.5 GΩ
Rated current per contact 1,5 A
Transmission performance CAT6A, acc. TIA/EIA rating
Class EA, acc. IEC/ISO/EN rating
Power over Ethernet PoE acc. IEEE 802.3bt

Mechanical Specifications

Lifetime > 1000 mating cycles
Wiresize
Wiring Feedthrough
Locking device Latch lock
Mounting direction Front mounting

Material Specifications

Contact plating Au
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel

Environmental Specifications

Flammability UL 94 V-0
Temperature range -40 °C to 70 °C
