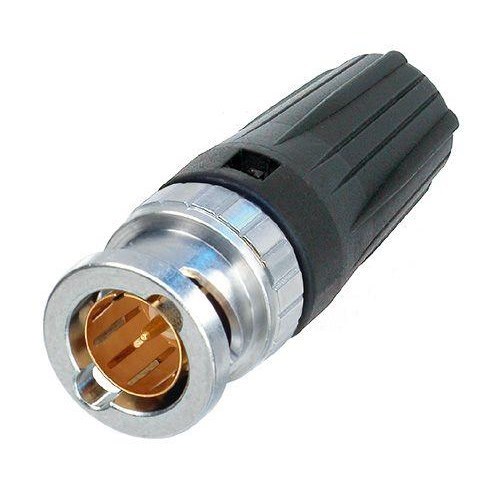

Neutrik rearTWIST HD BNC Cable Connector Suits Belden 1694F

Product Code: NU-NBNC75BRU11

Key Features

Features

  • “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  • True 75 Ω design meets the stringent HDTV / DVD requirements
  • Snug-fit center pin insert provides tactile feedback
  • Excellent cable protection and retention
  • Accessories include color coded boots in 10 standard colors, crimp tool and dies
  • Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
  • Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  • Precise Swiss machined brass parts for outstanding durability
$7.19 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Neutrik rearTWIST HD BNC Cable Connector Suits Belden 1694F

NBNC75BRU11

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cables:
Belden 1694F, Clark Wire CD7506F-0, Kabeltronik HFV 1.0/4.8 AF- FRNC

Crimp size:
Pin: 1.6 mm (square)
Shield: 7.36 mm (hex)

Warranty

We offer a 180 days warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Product

Title NBNC75BRU11
Connection Type BNC 75 Ω
Gender male

Electrical Specifications

Contact resistance ≤ 3 mΩ (inner)
Contact resistance ≤ 2 mΩ (outer)
Dielectric strength 1.5 kVdc
Impedance 75 Ω
Insulation resistance > 5 GΩ
Rated voltage <50 V
VSWR ≤1.050/>32 dB up to 1 GHz
≤1.065/>30 dB up to 2 GHz
≤1.100/>26 dB up to 3 Ghz

Mechanical Specifications

Cable O.D. < 7.3 mm
Cable retention > 30 N (Center)
Crimp size 7,36 Hex crimp (shield) acc. MIL22520/5-41(A)
Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Bayonett
Cable anchoring Jacket crimping

Material Specifications

Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Shell Brass (CuZn39Pb3)
Shell plating Optalloy®
Insert PTFE

Environmental Specifications

Temperature range -30 °C to 85 °C
Contact crimpability Complies with IEC 60803 and IEC 60352-2
